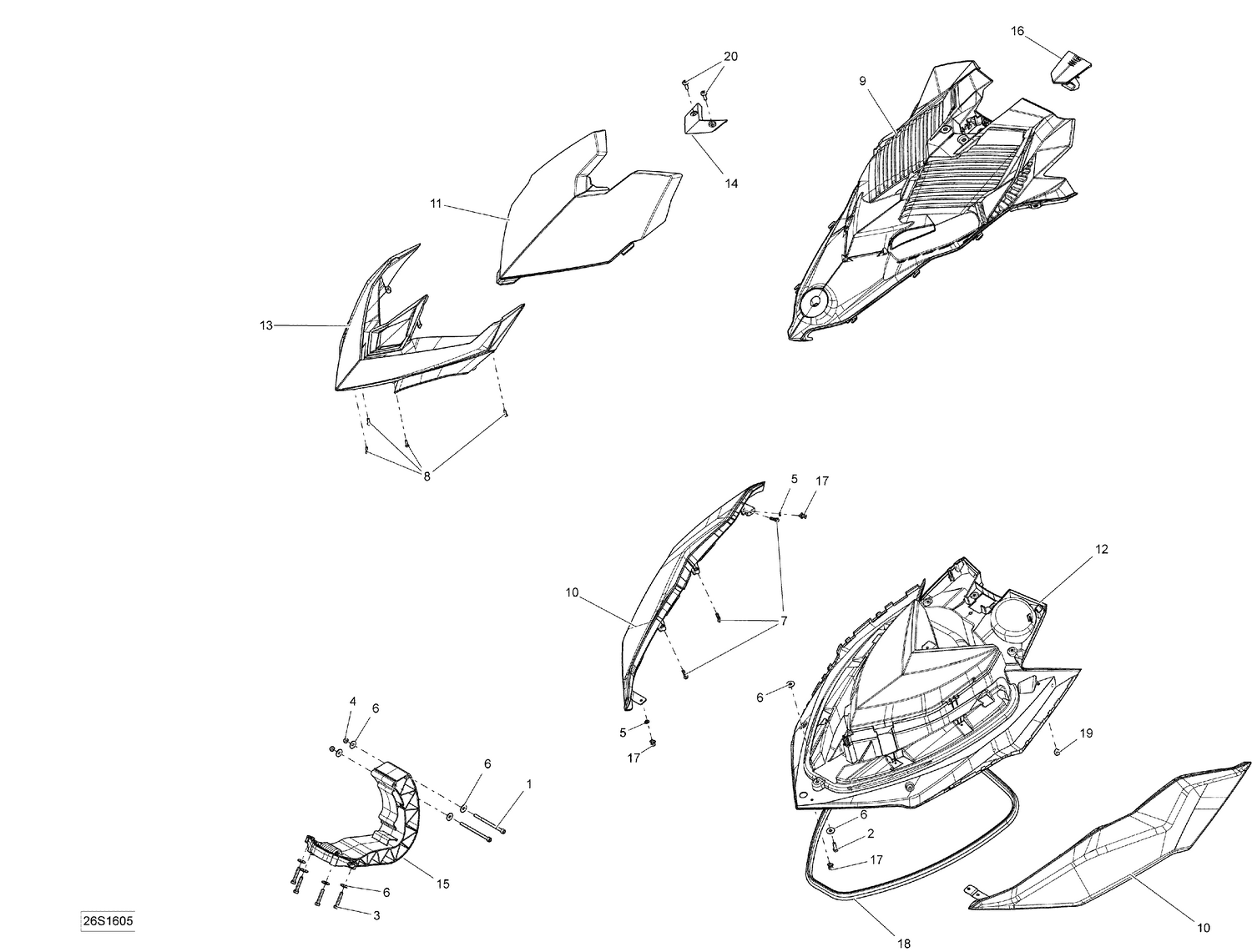

09- Front Cover
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 205069060 | Socket Head Screw M6 X 90 |
| 2 | 207162060 | Hex. Forming Screw M6 X 20 |
| 3 | 207363560 | Screw Hex. M6 X 35, Scotch Grip |
| 4 | 232561200 | Brass Elastic Stop Nut M6 |
| 5 | 234051500 | Flat Washer 5 mm |
| 6 | 234062600 | Flat Washer M6, Stainless |
| 7 | 241152060 | Hex. Flange Screw K50 X 20 |
| 8 | 250000287 | Flange Torx Screw K40 X 16 |
| 9 | 269502193 | Black, Central Storage Cover |
| 12 | 269502196 | Deep Black, Storage Cover Lower |
| 14 | 269501941 | Black, Clamp |
| 15 | 295501248 | Kit Hinge This part replaces 269501944. |
| 16 | 269700142 | Deep Black, Latch Lever |
| 17 | 293150027 | Avdel Rivet |
| 18 | 219704371 | Neoprene Seal 3000 mm Long This part replaces 293250270. |
| 19 | 293830005 | Rubber Bumper |
