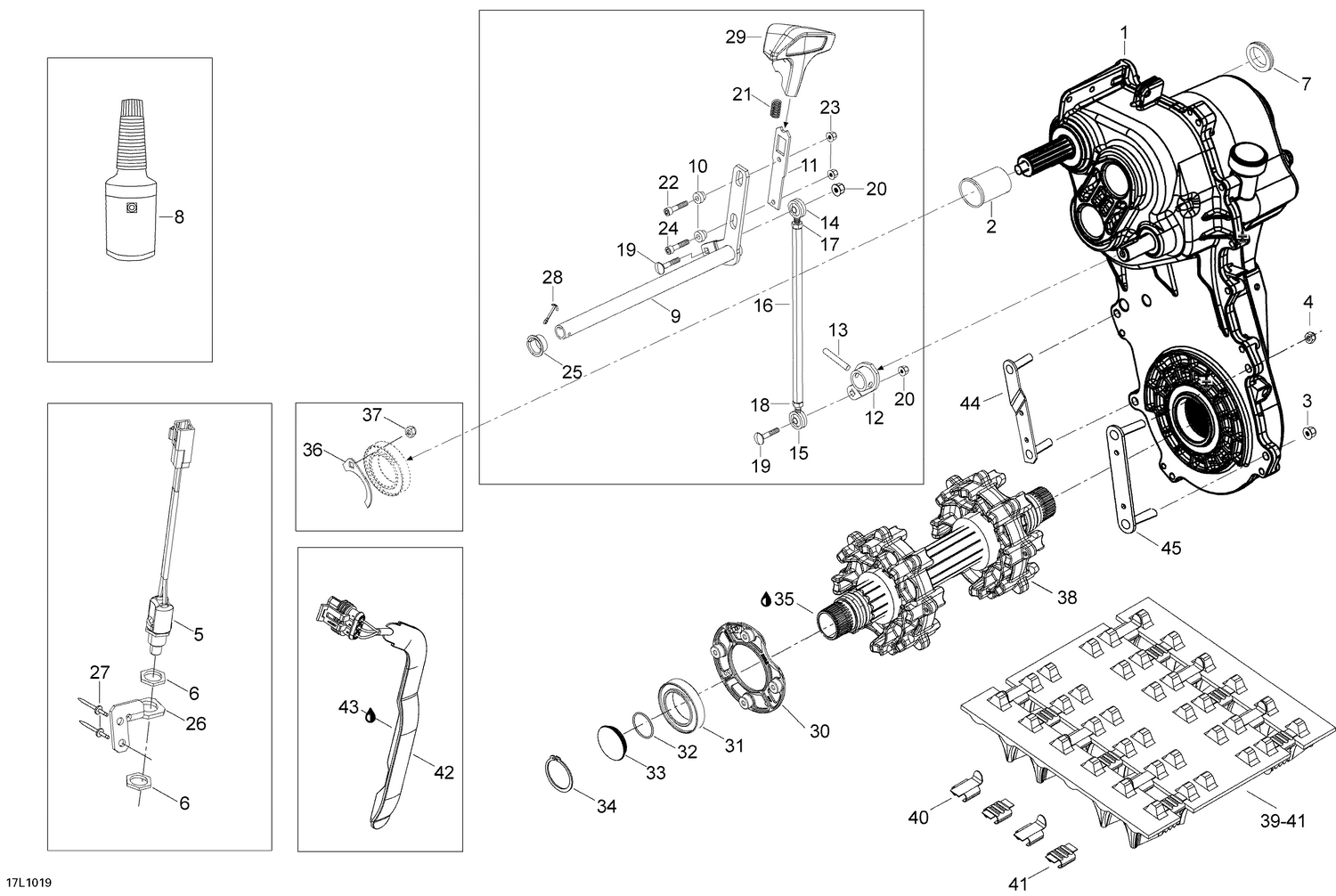

| Ref | Part Number | Description |
|---|
| 1 |
Not |
Available As Spare Part - Transmission Ass'y |
| 2 |
504153054 |
Protective Rubber This part replaces 504152989. |
| 3 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 4 |
232581414 |
Hex. Elastic Stop Nut M8 |
| 5 |
515176472 |
Switch Ass'y |
| 6 |
250000373 |
BRASS NUT - Call your local BRP dealership |
| 7 |
504152818 |
RUBBER PLUG - Call your local BRP dealership |
| 8 |
413803300 |
SYNTHETIC CHAINCASE OIL, 12 X 355 ML - Call your local BRP dealership |
| 9 |
504153288 |
Lever Shifter This part replaces 504152887. |
| 10 |
504152787 |
Sleeve |
| 11 |
504153287 |
Shifter Arm This part replaces 504152831. |
| 12 |
504152834 |
WELDED LEVER - Call your local BRP dealership |
| 13 |
41012 |
Pin This part replaces M41012. |
| 14 |
707000689 |
RH BALL JOINT - Call your local BRP dealership |
| 15 |
707000690 |
LH BALL JOINT - Call your local BRP dealership |
| 16 |
504152836 |
ROD - Call your local BRP dealership |
| 17 |
232061414 |
Hex. Nut M6 |
| 18 |
232066414 |
LH HEX. NUT M6 - Call your local BRP dealership |
| 19 |
207762044 |
Carriage Bolt M6 X 20 |
| 20 |
232561414 |
Elastic Stop Nut M6 |
| 21 |
504152882 |
Spring |
| 22 |
205052544 |
Socket Screw M5 X 25 |
| 23 |
233251434 |
Flange Elastic Nut M5 |
| 24 |
250000676 |
Forming Screw M5 x 16 This part replaces 732600030. |
| 25 |
504152890 |
Bushing |
| 26 |
504152902 |
Sensor Bracket |
| 27 |
293150163 |
Rivet Hucklok |
| 28 |
250400035 |
Cotter Pin |
| 29 |
504152837 |
Handle |
| 30 |
507032437 |
Bearing Housing |
| 31 |
293350059 |
Ball Bearing |
| 32 |
293300122 |
O-Ring |
| 33 |
504152619 |
Magnetic Cap |
| 34 |
504152572 |
Circlip |
| 35 |
293550033 |
SUSPENSION GREASE, 10 X 400 G - Call your local BRP dealership |
| 36 |
504153418 |
Bearing Housing Ass'y This part replaces 504152974. |
| 37 |
232581414 |
Hex. Elastic Stop Nut M8 |
| 38 |
504153261 |
AXLE-DRIVE ASSY - Call your local BRP dealership This part replaces 504152910. |
| 39 |
13070 |
Track ass'y This part replaces M13070. |
| 41 |
M5318322 |
CLEAT - Call your local BRP dealership |
| 42 |
504152896 |
Rotation Sensor |
| 43 |
219704460 |
Was 293800066 Sealant Loctite 5900, 300 ml |
| 44 |
518326123 |
GEARBOX FRONT PLATE - Call your local BRP dealership |
