| Ref | Part Number | Description |
|---|
| 1 |
0279750 |

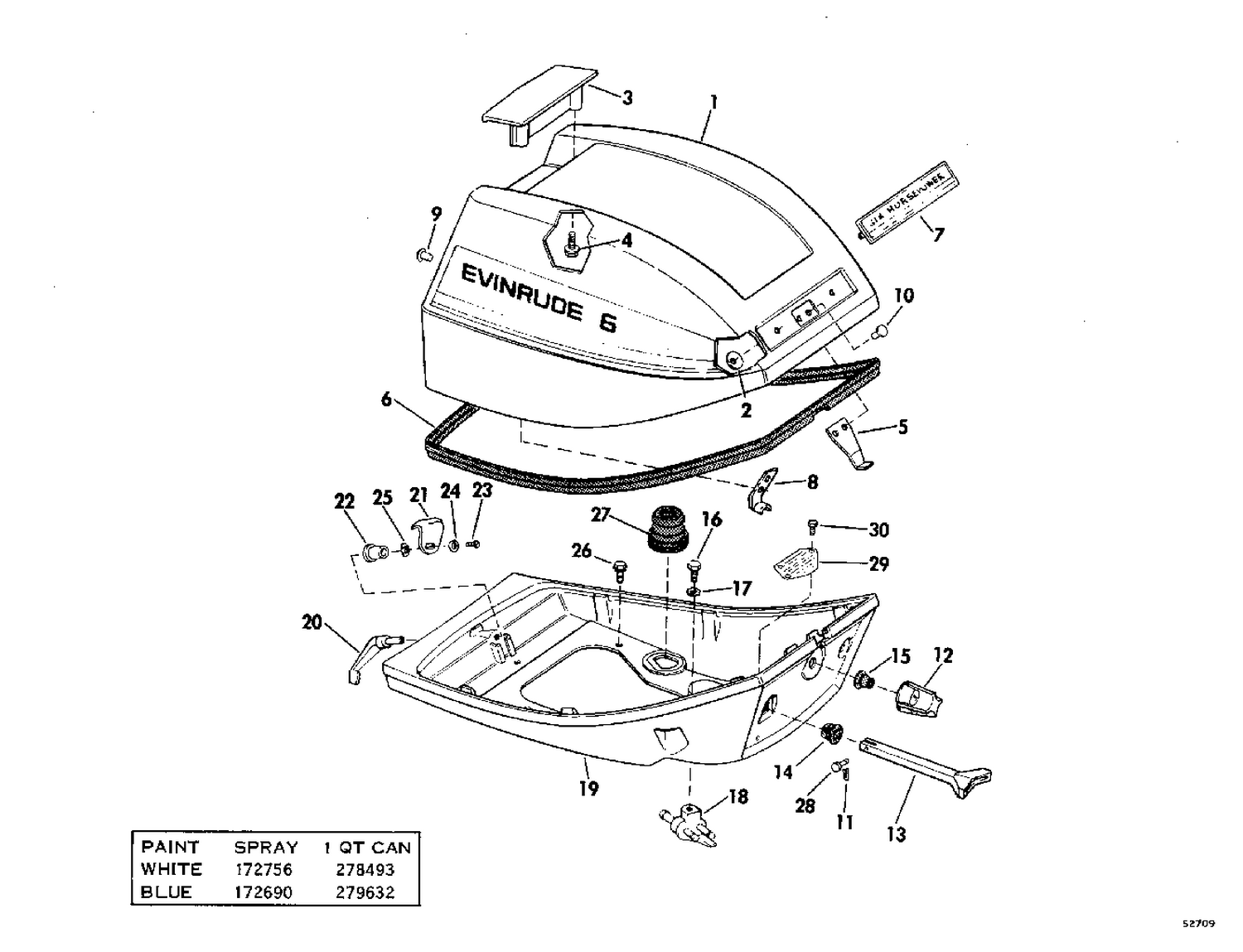

MOTOR COVER ASSEMBLY |
| 3 |
0278755 |
TILE HANDLE & SCREW ASSY |
| 4 |
0312299 |
VIS, serre-câble |
| 5 |
0205482 |
HOOK, Front, cover |
| 6 |
0206096 |
SEAL, Cover |
| 7 |
0207355 |
APPLIQUE, Front |
| 8 |
0205699 |
HOOK, Rear |
| 9 |
0315705 |
RIVERT,Rear hook |
| 11 |
0301912 |
COTER PIN |
| 12 |
0205231 |
KNOB, Control shaft This part replaces 0205483. |
| 13 |
0205500 |
KNOB, Choke |
| 14 |
0320731 |
BUSHING, Choke knob |
| 15 |
0311439 |
GROMET, Knob slow speed |
| 18 |
0393334 |
CONNECTEUR, carburant - mâle This part replaces 0376154. |
| 19 |
0279950 |
MOTOR COVER, Lower |
| 20 |
0312184 |
HANDLE, Latch |
| 22 |
0553769 |
BUSHING |
| 23 |
0312241 |
SCREW, Trim/Tilt relay bracket |
| 26 |
0309526 |
SCREW |
| 27 |
0306119 |
GROMMET |
| 28 |
0382778 |
PIN, Solenoid This part replaces 0303738. |
| 29 |
0320023 |
PLATE, Safety warning |
| 30 |
0316195 |
SCREW |
| 0279810 |
0279810 |
DECAL SET |
