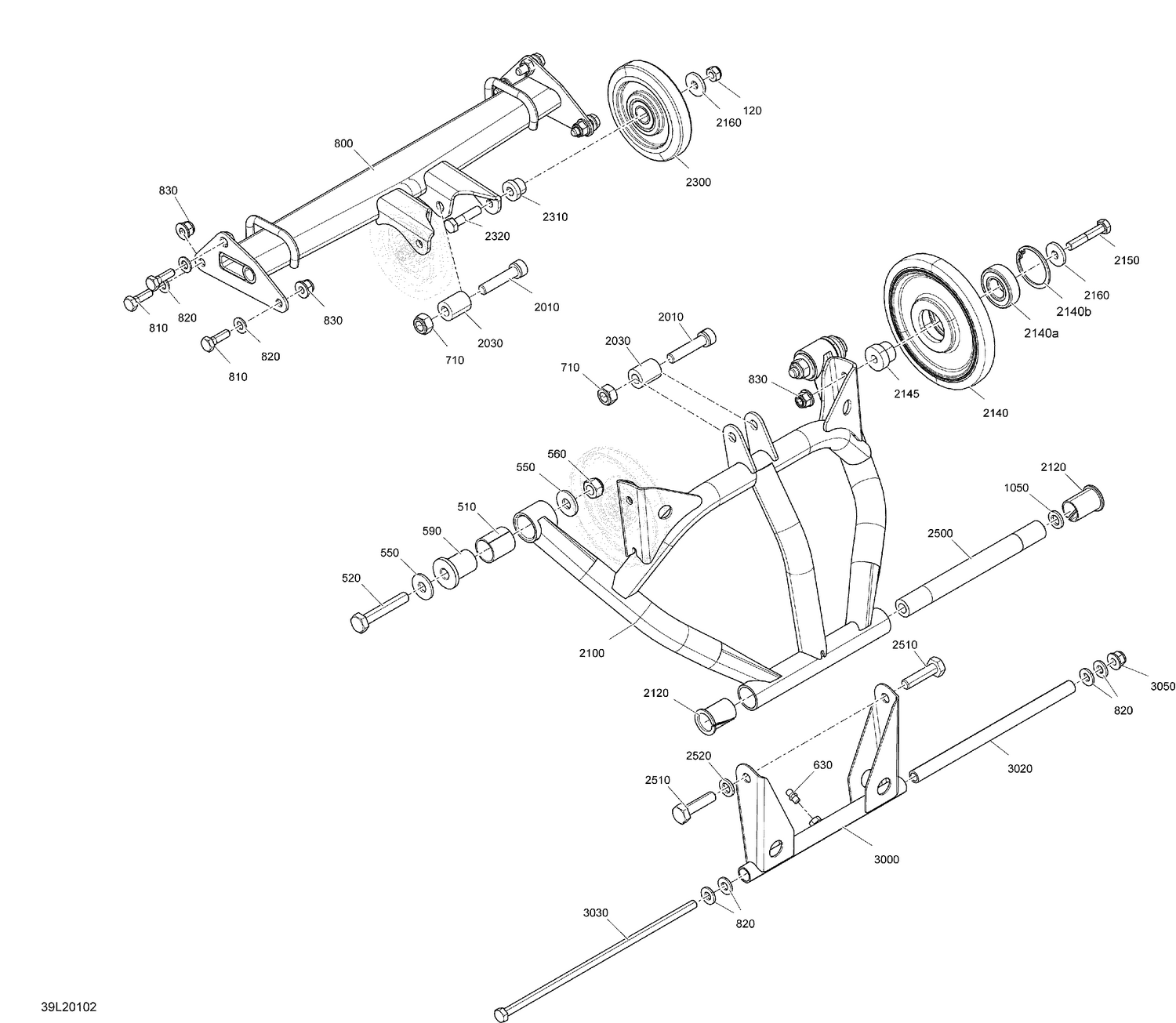

08- Suspension, Rear - Upper Section
Parts (30)
| Ref | Part Number | Description |
|---|---|---|
| 120 | 232581414 | Hex. Elastic Stop Nut M8 |
| 510 | 503191554 | Bushing |
| 520 | 250000696 | Hexagonal Screw |
| 550 | 503191926 | Washer |
| 560 | 233601466 | Elastic Locking Nut M10 |
| 590 | 503194580 | Upper Axle Sleeve |
| 630 | 408200700 | Grease Fitting |
| 710 | 232500416 | Elastic Stop Nut M10 |
| 810 | 250000556 | Hex. Cap Screw M8 x 25 |
| 820 | 503192494 | Washer |
| 830 | 233281414 | Hex. Flange Elastic Nut M8 |
| 1050 | 503192496 | Washer |
| 2010 | 40134 | Screw Socket HD.DIN 912 |
| 2030 | 5446652 | Bushing |
| 2100 | 503194325 | Rear Arm (Heavy Duty) |
| 2120 | 503191640 | Cushion |
| 2140a | 503190396 | Ball Bearing |
| 2140b | 415129371 | Retaining Ring |
| 2145 | 605454461 | Sleeve |
| 2150 | 207084544 | Hex. Screw M8 X 45 |
| 2160 | 20077 | M8 Washer |
| 2300 | 572043500 | Idler Wheel |
| 2310 | 503193330 | Sleeve |
| 2320 | 207083544 | Hex. Screw M8 X 35 |
| 2500 | 503193638 | Axe Inferieur *shaft-lower |
| 2510 | 207204044 | Hex Cap Screw Din.931 S.grip |
| 2520 | 234001410 | Flat Washer 10 mm |
| 3000 | 503194342 | Rear Swing |
| 3020 | 503189156 | Pivot Arm Axle |
| 3030 | 503194069 | Bolt M8 |
