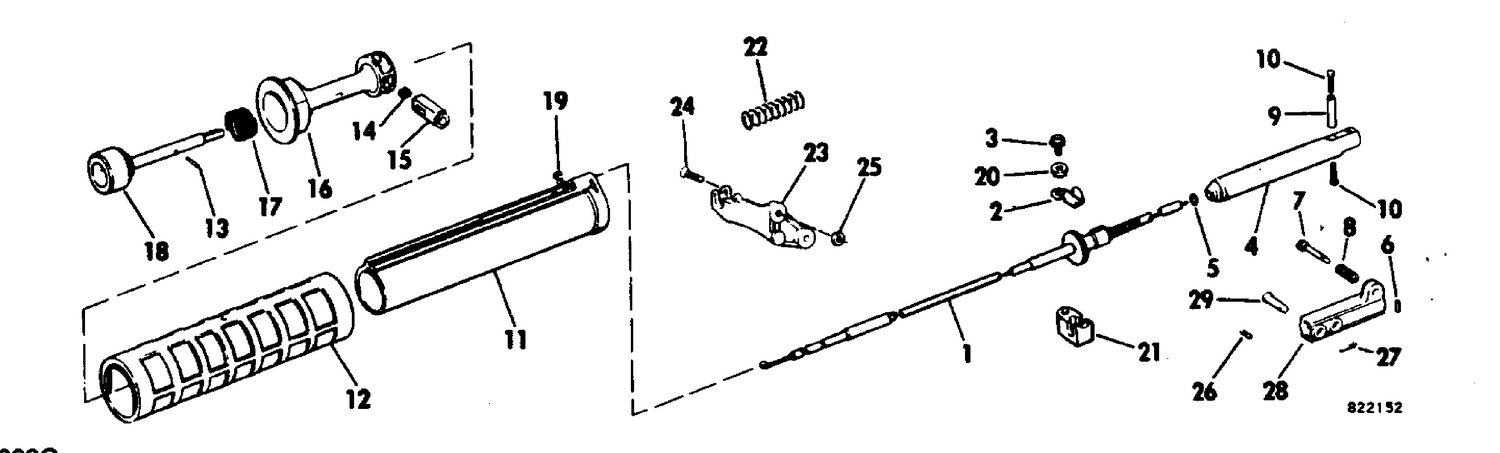

SHIFT HANDLE KIT 6RS,9.9,15
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0172803 | CABLE AND CASING ASSY |
| 2 | 0310687 | DETENT SPRING, Anchor block |
| 3 | 0310686 | SCREW |
| 3 | 0320014 | SCREW, Detent clip |
| 5 | 0307063 | O RING |
| 9 | 0318067 | CLAMP, Casing guide |
| 11 | 0124145 | HANDLE, Inner |
| 12 | 0122136 | HANDLE, Outer |
| 13 | 0305989 | GROOVE PIN |
| 19 | 0304816 | RETAINING RING |
| 20 | 0310688 | SAPCER, Anchor block |
| 21 | 0310685 | ABCHOR BLCOK, Trunnion |
| 22 | 0170911 | SPRING |
| 0172342 | 0172342 | DETENT ASSEMBLY |
| 0173985 | 0173985 | SHIFT HANDLE KIT - 6RS |
| 0173986 | 0173986 | SHIFT HANDLE KIT - 9.9 - 15 |
| 0381444 | 0381444 | CASING GUIDE |
