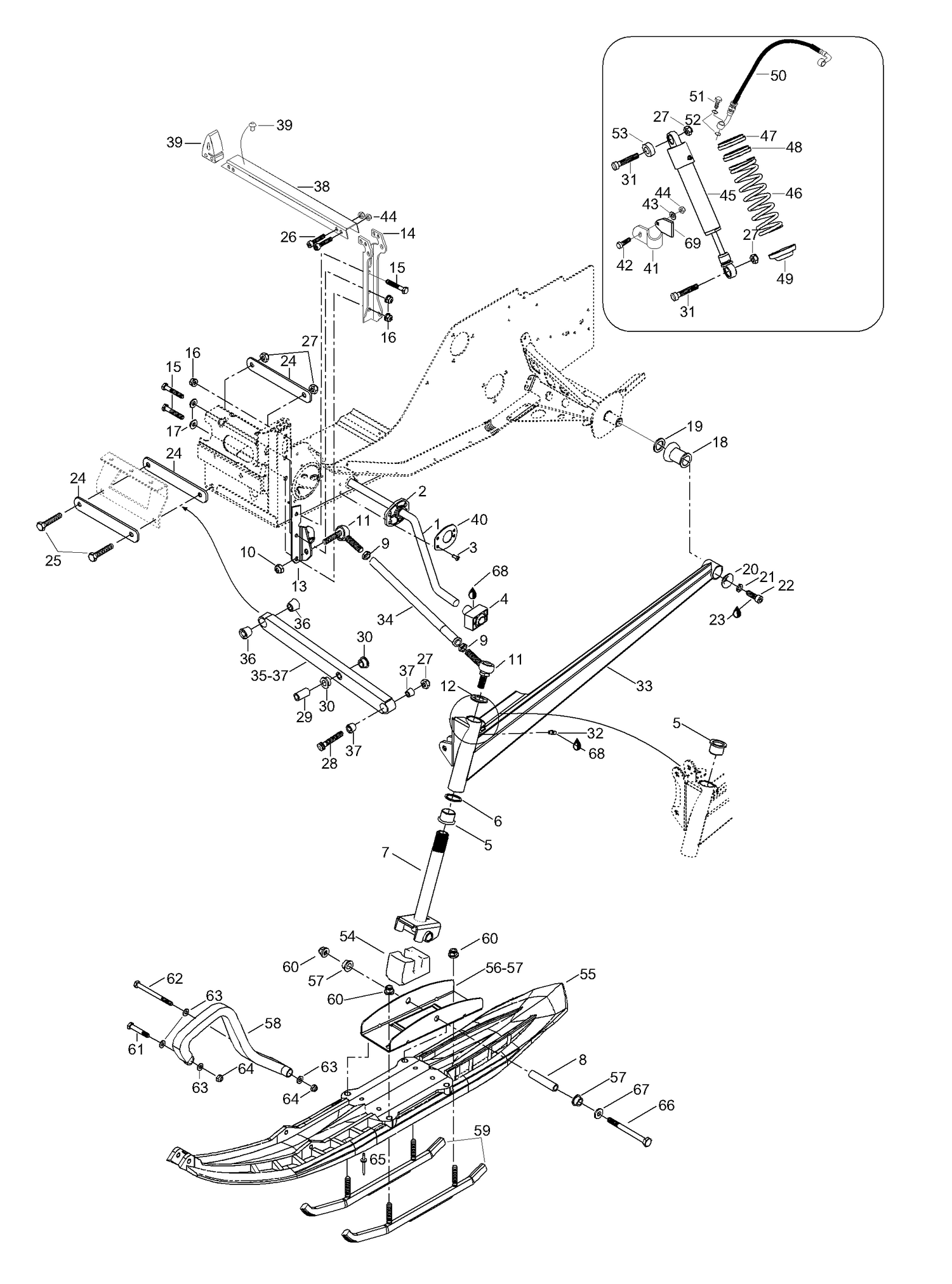

| Ref | Part Number | Description |
|---|
| 1 |
5246797 |
Sway bar |
| 2 |
505070191 |
Sleeve |
| 3 |
36009 |
Rivet |
| 4 |
505070117 |
BALL JOINT BLOCK - Call your local BRP dealership |
| 5 |
505070003 |
Bushing |
| 6 |
505070004 |
WASHER - Call your local BRP dealership |
| 7 |
5245502 |
Ski leg |
| 8 |
506133300 |
Spacer |
| 9 |
33048 |
Jam nut M12 |
| 10 |
33087 |
Jam nut elastic M12 |
| 11 |
31092 |
Ball joint |
| 12 |
20074 |
Lock washer |
| 13 |
5348063 |
R.H. Upper arm bracket |
| 13 |
5348064 |
L.H. Upper arm bracket |
| 14 |
5245488 |
Shock bracket |
| 14 |
5246395 |
Shock bracket |
| 15 |
40010 |
Screw M8x55 |
| 16 |
233281414 |
Hex. Flange Elastic Nut M8 This part replaces 33201. |
| 17 |
234081410 |
Flat Washer 8 mm This part replaces 20104. |
| 18 |
570062200 |
DAMPER - Call your local BRP dealership |
| 19 |
503146700 |
WASHER - Call your local BRP dealership |
| 20 |
506079600 |
CUP - Call your local BRP dealership |
| 21 |
20014 |
Spring washer |
| 22 |
40289 |
Allen screw M8x25 |
| 23 |
293800060 |
Loctite 243, 10ml |
| 24 |
5346112 |
Support plate |
| 25 |
40814 |
Screw M10x110 |
| 26 |
40345 |
Allen screw M6x40 |
| 27 |
33012 |
Nut elastic M10 |
| 28 |
40136 |
Allen screw M10 x 50 (1=10pcs) - Call your local BRP dealership |
| 29 |
5441433 |
Bushing |
| 30 |
31088 |
Bearing |
| 31 |
40837 |
Allen Screw M10x55 DIN 912 (1=10pcs) - Call your local BRP dealership |
| 32 |
34011 |
Grease Fitting M6 x 1,00(1=10pcs) - Call your local BRP dealership |
| 33 |
5246683 |
Swing arm, R.H. red |
| 33 |
5246684 |
Swing arm, L.H. red |
| 34 |
5346122 |
Upper arm |
| 36 |
5447769 |
Inner sleeve |
| 37 |
5447770 |
Outer sleeve |
| 38 |
5347134 |
Bracket |
| 39 |
28143 |
Rubber damper |
| 40 |
Not |
Available As Spare Part - Plate - DOES NOT APPLY TO THIS MODEL |
| 41 |
5446702 |
Bracket |
| 42 |
40846 |
Lock screw M6x16 |
| 43 |
234062410 |
Flat Washer 6 mm This part replaces 20009. |
| 44 |
33010 |
Lock Nut M6 (1=10Pcs) |
| 46 |
230057 |
Spring |
| 47 |
230053 |
Adjusting ring |
| 48 |
230054 |
Guide spring |
| 49 |
230076 |
Guide spring |
| 50 |
230062 |
Hose |
| 51 |
415093810 |
Screw |
| 52 |
415038700 |
O-ring |
| 53 |
230055 |
Rubber bushing |
| 54 |
570070400 |
Stopper-ski |
| 55 |
505070727 |
Ski liner |
| 57 |
505070001 |
BUSHING - Call your local BRP dealership |
| 58 |
505070963 |
Plastic handle This part replaces 572101000. |
| 59 |
5347985 |
Runner |
| 60 |
33074 |
NUT-FLANGE ELASTIC M10X1.5 (1=10pcs) - Call your local BRP dealership |
| 61 |
40009 |
Screw M8x50 |
| 62 |
207089044 |
Hex. Screw M8 x 90 This part replaces 40264. |
| 63 |
234081410 |
Flat Washer 8 mm This part replaces 20004. |
| 64 |
232581414 |
Hex. Elastic Stop Nut M8 This part replaces 33011. |
| 65 |
36072 |
Rivet |
| 66 |
40814 |
Screw M10x110 |
| 67 |
20105 |
Washer, hardened |
| 68 |
413711500 |
SYNTHETIC GREASE - Call your local BRP dealership |
