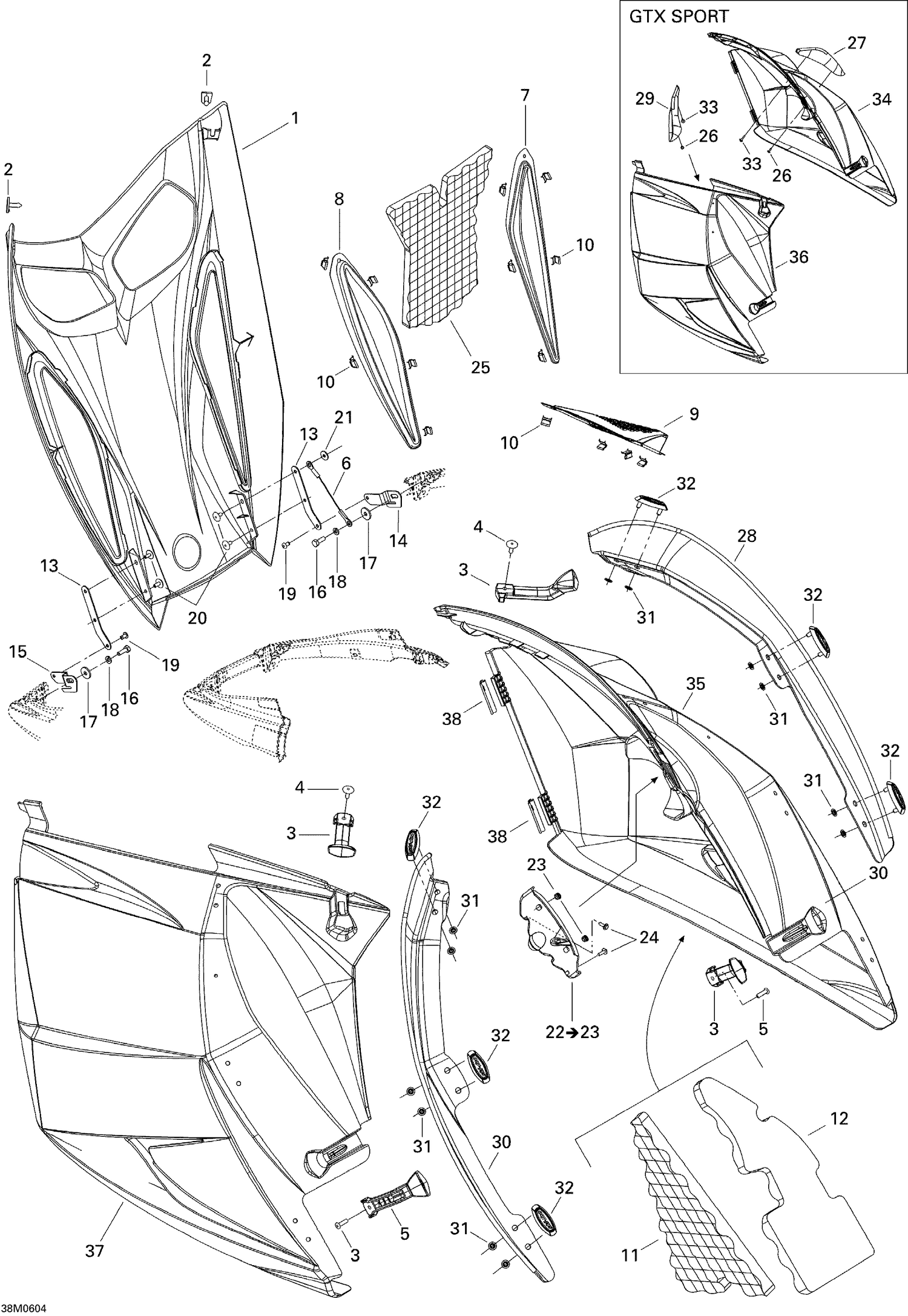

| Ref | Part Number | Description |
|---|
| 2 |
517302543 |
ROD_RETAINING - Call your local BRP dealership |
| 3 |
517302448 |
Panel Latch |
| 4 |
293150087 |
Pop Rivet 3/16” This part replaces 293150087. |
| 5 |
390410100 |
Pop Rivet 3/16” |
| 6 |
517302673 |
RETAINER CABLE - Call your local BRP dealership |
| 7 |
517302936 |
RH HOOD GRILL - Call your local BRP dealership |
| 8 |
517302937 |
LH HOOD GRILL - Call your local BRP dealership |
| 9 |
517302938 |
RH PANEL GRILL - Call your local BRP dealership |
| 10 |
517302789 |
CLIP - Call your local BRP dealership |
| 11 |
517303082 |
RH PANEL FRONT FOAM - Call your local BRP dealership |
| 12 |
517303492 |
RH PANEL REAR FOAM - Call your local BRP dealership |
| 13 |
517302544 |
UPPER HALF-HINGE - Call your local BRP dealership |
| 14 |
517303668 |
RH HINGE ASS'Y - Call your local BRP dealership This part replaces 517302444. |
| 15 |
517302445 |
LH Lower Half-Hinge |
| 16 |
207161844 |
Hex. Screw M6 X 18 |
| 17 |
224061121 |
Flat Washer |
| 18 |
234161471 |
Lock Washer M6, Black |
| 19 |
390909200 |
Avex Rivet |
| 20 |
390406500 |
Pop Rivet 3/16" |
| 21 |
517225900 |
Flat Washer |
| 23 |
275500241 |
Black, Cap |
| 24 |
241151640 |
Hex. Flange Screw K50 X 2.24 X 16 |
| 25 |
517303081 |
HOOD FOAM - Call your local BRP dealership |
| 26 |
250000723 |
Phillips Screw K40 X 16 This part replaces 250000084. |
| 27 |
517302800 |
RH AIR DEFLECTOR - Call your local BRP dealership |
| 28 |
XXX |
Not Available As Spare Parts |
| 29 |
517302801 |
LH AIR DEFLECTOR - Call your local BRP dealership |
| 30 |
XXX |
Not Available As Spare Parts |
| 31 |
XXX |
Not Available As Spare Parts |
| 32 |
XXX |
Not Available As Spare Parts |
| 33 |
250000101 |
Plastite Screw Type K-40, M4 X 25 |
| 35 |
XXX |
Not Available As Spare Parts |
| 37 |
XXX |
Not Available As Spare Parts |
