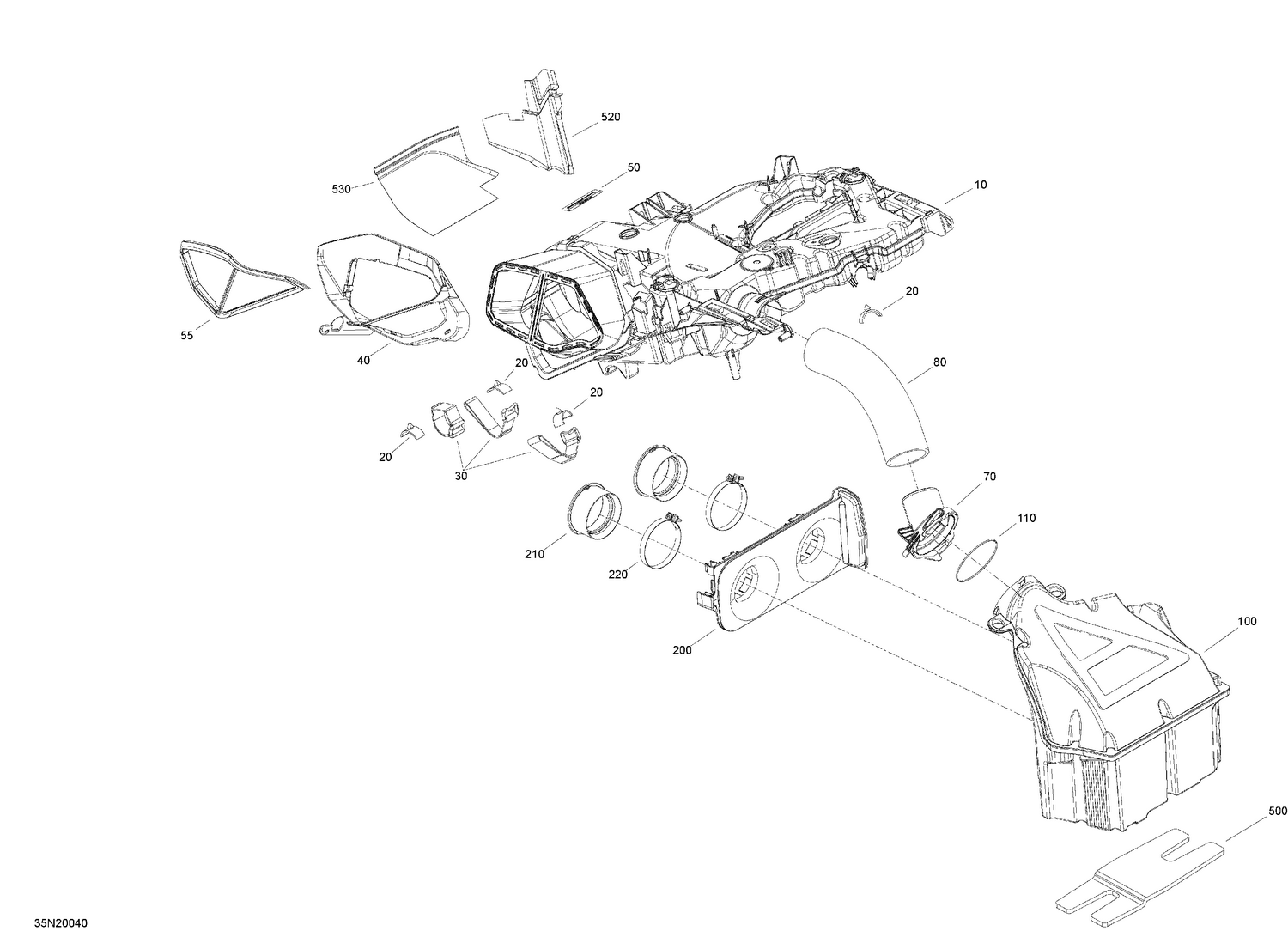

02- Engine - Air Intake
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 508000715 | Secondary Chamber Ass'y |
| 20 | 508000537 | Stopper |
| 30 | 508000820 | Velcro Strip |
| 40 | 508001021 | Adapter |
| 50 | 516006903 | Hot Parts Decal |
| 55 | 508000609 | Air Filter |
| 70 | 508000562 | Link |
| 80 | 508000406 | Tube |
| 100 | 508000680 | Primary Chamber Ass'y |
| 110 | 293300115 | O-Ring |
| 200 | 508000564 | ADAPTER PLATE - Call your local BRP dealership |
| 210 | 508000594 | Air Intake Adapter |
| 220 | 508000369 | Gemi Clamp |
| 500 | 508000674 | Insulated Foam |
| 520 | 508000684 | Heat Shield |
