| Ref | Part Number | Description |
|---|
| B |
710001588 |
Female Terminal Housing, 48 Circuits |
| B |
710001589 |
Female Terminal |
| B |
710001591 |
Cover, 48 positions |
| B |
710001592 |
Plug |
| B |
710001593 |
Plug |
| B |
710001727 |
Female Terminal |
| B |
710001728 |
Terminal |
| BFS1 |
515177192 |
Female Housing, 2 Circuits |
| BFS1 |
710001152 |
Lock |
| BFS1 |
710001163 |
Wire Seal |
| BFS1 |
710001164 |
Female Terminal |
| BFS2 |
515177192 |
Female Housing, 2 Circuits |
| BFS2 |
710001152 |
Lock |
| BFS2 |
710001163 |
Wire Seal |
| BFS2 |
710001164 |
Female Terminal |
| BN1 |
278001392 |
Open Barrel Terminal |
| BP1 |
278000992 |
Open Barrel |
| BP1 |
515177246 |
Shrink Tubing, 6 mm |
| BRK |
409209400 |
Male Terminal Housing, 2 Circuits |
| BRK |
515176164 |
Male Terminal |
| BRK |
515176621 |
Wire Seal |
| CL |
278002858 |
Female Housing 20 Circuits |
| CL |
278002860 |
Sealing Cap |
| CL |
515178018 |
Female Terminal |
| CL |
515178349 |
Female Terminal 22 AWG |
| D2 |
409012700 |
Diode |
| DC1 |
710005373 |
Housing |
| DC1 |
710005952 |
Female Terminal |
| DC3 |
515175231 |
Female Terminal |
| DC3 |
515175658 |
Female Housing, 2 Circuits |
| DESS |
710001161 |
Housing |
| DESS |
710001162 |
Lock |
| DESS |
710001163 |
Wire Seal |
| DESS |
710001164 |
Female Terminal |
| DESS |
710001225 |
Cap |
| DIFF |
710002003 |
Housing Connector |
| DIFF |
710003047 |
Terminal |
| DIFF |
710005491 |
Female Terminal |
| DIFF |
710006076 |
Label |
| DLC |
710002705 |
Lock |
| DLC |
710002706 |
Female Housing 6 Circuits |
| DLC |
710005437 |
Plug |
| DLC |
710005438 |
Female Terminal |
| DLC |
710005439 |
Female Terminal |
| DPS |
278002186 |
Wire Seal |
| DPS |
278002187 |
Female Terminal |
| DPS |
710001222 |
Lock |
| DPS |
710001873 |
Terminal This part replaces 710001765. |
| DPS |
710002075 |
Plug |
| DPS |
710003153 |
Seal |
| DPS |
710004989 |
Female Housing |
| DPS |
710005098 |
Lock |
| EVAP |
409012100 |
Female Terminal |
| EVAP |
710000402 |
Wire Seal |
| FP |
278002185 |
Male Housing, 4 Circuits |
| FP |
278002186 |
Wire Seal |
| FP |
278002187 |
Female Terminal |
| FP |
710001222 |
Lock |
| FP |
710001873 |
Terminal This part replaces 710001765. |
| FP |
710003153 |
Seal |
| FP |
710006214 |
Lock |
| FRONT |
FLASHER |
M 409210100 Clip Bracket Connector (edge) 409210100 |
| FRONT |
HL |
M 409210100 Clip Bracket Connector (edge) 409210100 |
| FT |
278000217 |
Female Housing, 2 Circuits |
| FT |
278000218 |
Wire Seal |
| FT |
409004300 |
Male Terminal |
| FT |
710000992 |
Clip |
| HIC |
710001222 |
Lock |
| HIC |
710001225 |
Cap |
| HIC |
710001228 |
Terminal |
| HIC |
710001229 |
Terminal |
| HIC |
710001233 |
Seal |
| HIC |
710001332 |
Seal Wire |
| HIC |
710001930 |
Female Housing, 12 Circuits |
| HIC |
710006333 |
Lock |
| KEYPAD |
710001161 |
Housing |
| KEYPAD |
710001162 |
Lock |
| KEYPAD |
710001163 |
Wire Seal |
| KEYPAD |
710001164 |
Female Terminal |
| PF1 |
278000216 |
Wire Seal |
| PF1 |
278000218 |
Wire Seal |
| PF1 |
278001065 |
Wire Seal |
| PF1 |
278002578 |
Female Terminal |
| PF1 |
278003448 |
Fuse Base Ass'y |
| PF1 |
278003553 |
Fuse Cover |
| PF1 |
293300198 |
Seal |
| PF1 |
515177177 |
Female Terminal |
| PF1 |
710000048 |
Wire Seal |
| PF1 |
710000918 |
Female Terminal |
| PF1 |
710005671 |
Housing Support |
| PF1 |
T |
LABEL 710007045 Fuse Box Decal 710007045 |
| PF2 |
278000216 |
Wire Seal |
| PF2 |
278000218 |
Wire Seal |
| PF2 |
278001065 |
Wire Seal |
| PF2 |
278002578 |
Female Terminal |
| PF2 |
278003448 |
Fuse Base Ass'y |
| PF2 |
278003553 |
Fuse Cover |
| PF2 |
293300198 |
Seal |
| PF2 |
710000918 |
Female Terminal |
| PF2 |
710006792 |
Fuse Box Decal |
| PF3 |
278001325 |
Fuse Holder |
| PF3 |
710000113 |
Female Terminal |
| PF4 |
278001325 |
Fuse Holder |
| PF4 |
710000113 |
Female Terminal |
| PF4 |
710000357 |
Female Terminal |
| PF6 |
278001325 |
Fuse Holder |
| PF6 |
710000357 |
Female Terminal |
| PF7 |
278001987 |
Fuse Holder |
| PF7 |
710000113 |
Female Terminal |
| SB |
278001482 |
Seal |
| SB |
710001134 |
Female Terminal |
| SB |
710002043 |
Lock |
| SB |
710002177 |
Housing |
| SS |
515177192 |
Female Housing, 2 Circuits |
| SS |
710001152 |
Lock |
| SS |
710001163 |
Wire Seal |
| SS |
710001164 |
Female Terminal |
| STSW |
409012100 |
Female Terminal |
| STSW |
710000402 |
Wire Seal |
| WSS |
REAR |
M 710002493 Holder 710002493 |
| YAW |
710003730 |
Housing |
| YAW |
710006230 |
Wire Seal |
| 4X4 |
710002000 |
Housing |
| 4X4 |
710003047 |
Terminal |
| 4X4 |
710005491 |
Female Terminal |
| 4X4 |
710006075 |
Label |
| 300 |
710008265 |

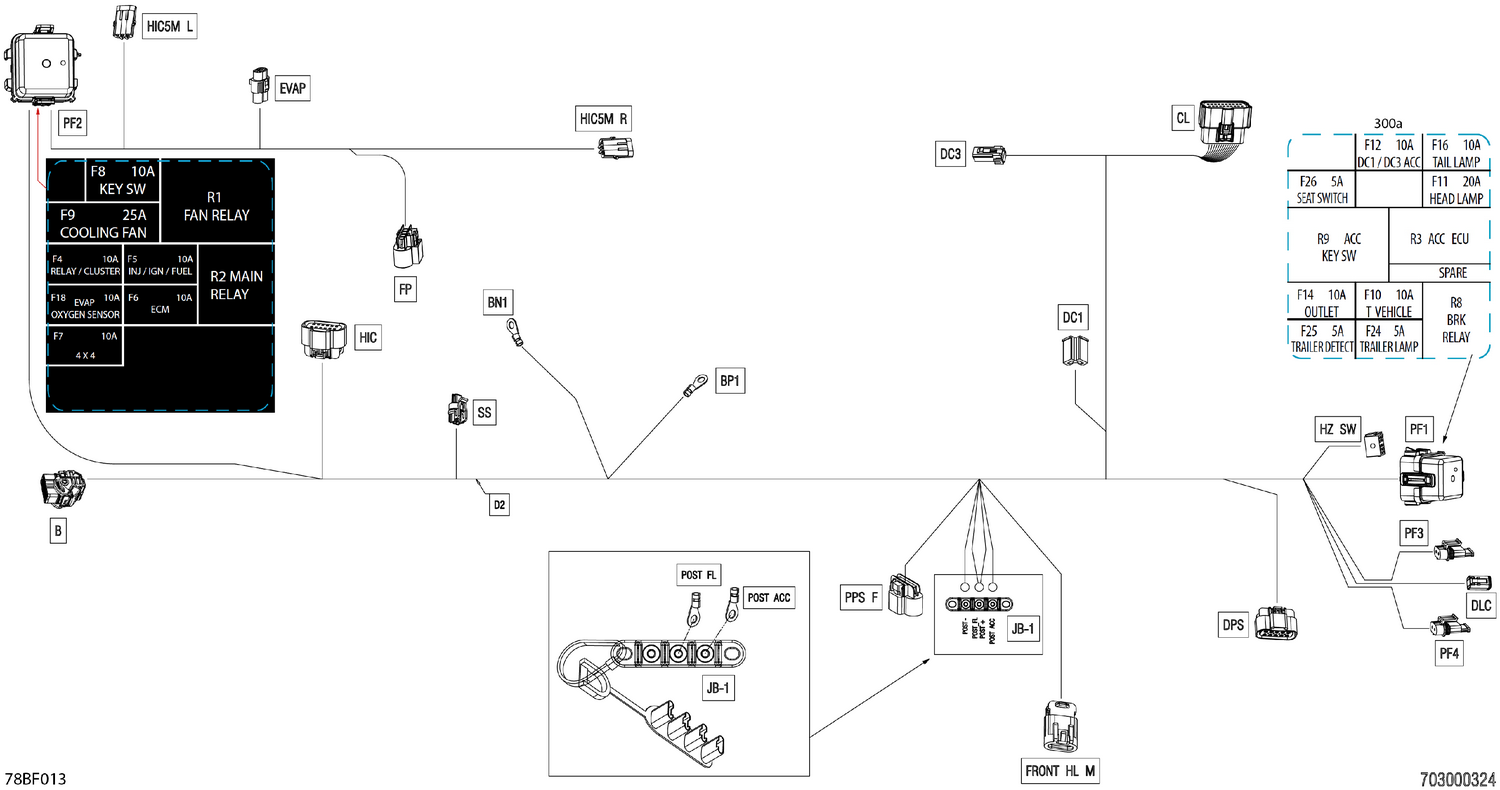

Main Wiring Harness |
| 300a |
710007045 |
Fuse Box Decal |
