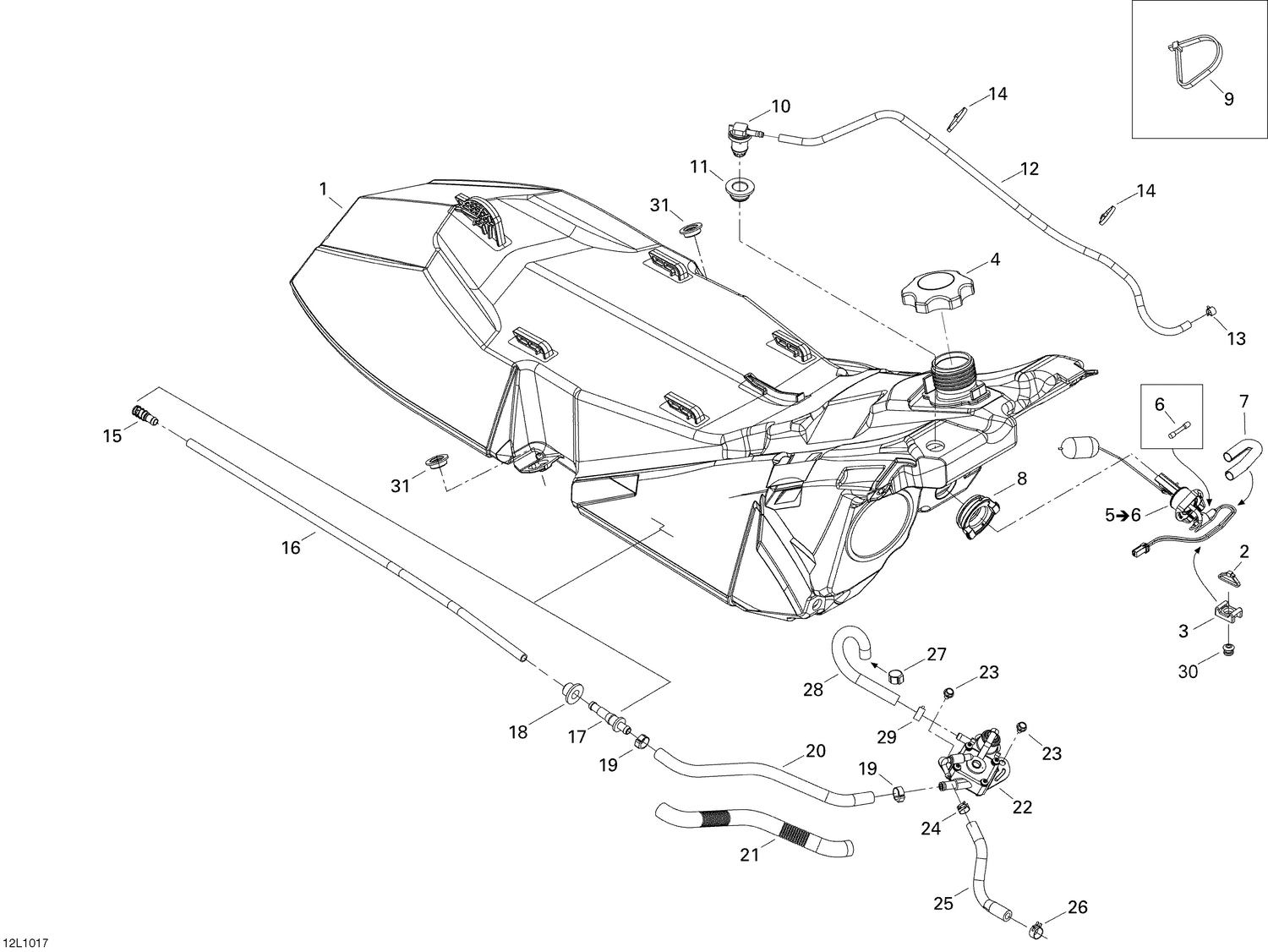

02- Fuel System
Parts (30)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 513033609 | Fuel Tank |
| 2 | 293750002 | Tie-Rap 142 mm |
| 3 | 515176795 | Tie Rap Mount (Screwable) |
| 4 | 513033025 | Fuel Tank Cap |
| 5 | 513033958 | Sensor Level Fuel This part replaces 513033605. |
| 6 | 710001995 | Fuse 0.5A |
| 7 | 415079900 | Tubing 10 mm |
| 8 | 513033606 | Grommet |
| 9 | 293750008 | Tie-Rap 368 mm |
| 10 | 513033842 | Check Valve This part replaces 513033188. |
| 11 | 513033596 | Grommet |
| 12 | 415080200 | HOSE, POLYURETHANE - Call your local BRP dealership |
| 13 | 414554800 | Spring Clamp |
| 14 | 414115200 | Tie-Rap 180 mm |
| 15 | 414872100 | Fuel Filter |
| 16 | 219704391 | POLYURETHANE HOSE 1000MM LONG This part replaces 513033332. |
| 17 | 414872700 | Male Connector |
| 18 | 513033435 | Grommet |
| 19 | 605627009 | CLAMP - Call your local BRP dealership |
| 20 | 513033165 | Hose |
| 21 | 415080000 | Tubing 16 mm |
| 22 | 513033184 | Fuel Pompe |
| 23 | 210261040 | Hex. Flanged Forming Screw M6 X 10 |
| 24 | 605627010 | Clamp |
| 25 | 513033327 | Hose |
| 26 | 605627005 | CLAMP MINI ABA 13 - Call your local BRP dealership |
| 27 | 605627005 | CLAMP MINI ABA 13 - Call your local BRP dealership |
| 28 | 513033343 | Hose |
| 29 | 605627005 | CLAMP MINI ABA 13 - Call your local BRP dealership |
| 30 | 390402000 | Pop Rivet 3/16" |
