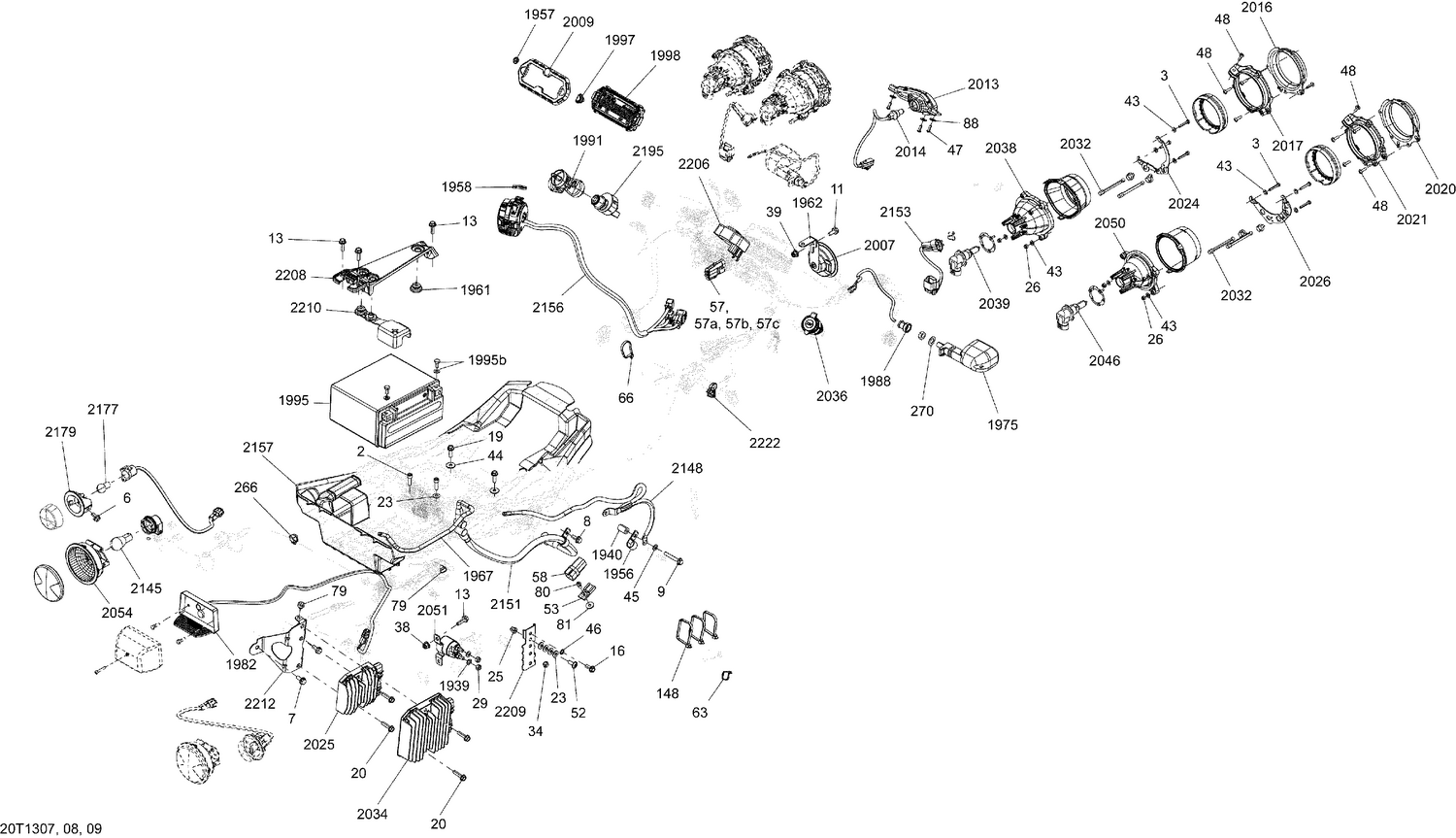

| Ref | Part Number | Description |
|---|
| 2 |
205562044 |
Socket Head Screw M6 X 20, Scotch Grip |
| 9 |
XXX |
Not Available As Spare Parts |
| 13 |
207662084 |
Hex. Flange Screw M6 X 20 |
| 16 |
210261650 |
Hex. Flange Screw M6 X 16 This part replaces 210261680. |
| 19 |
210262050 |
Hexagonal Head Screw This part replaces 210262080. |
| 20 |
210262550 |
Hex. Flange Forming Screw M6 X 25 This part replaces 210262580. |
| 23 |
224061121 |
Flat Washer |
| 25 |
232361493 |
Domed Nut M6 |
| 29 |
232561414 |
Elastic Stop Nut M6 |
| 34 |
232561414 |
Elastic Stop Nut M6 |
| 38 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 44 |
234062670 |
Stainless Steel Flat Washer |
| 45 |
XXX |
Not Available As Spare Parts |
| 46 |
234461608 |
External Serrated Lock Washer 6 mm |
| 52 |
250000223 |
Torx Screw M6 X 16 |
| 53 |
270000141 |
Clip |
| 58 |
710003006 |
Housing |
| 63 |
293750001 |
Tie Wrap 94 mm |
| 66 |
414115200 |
Tie-Rap 180 mm |
| 79 |
293830005 |
Rubber Bumper |
| 80 |
390402300 |
Pop Rivet 3/16" |
| 81 |
391301600 |
Washer |
| 148 |
293750008 |
Tie Wrap 368 mm |
| 266 |
414227300 |
Clip |
| 1939 |
234161601 |
Lock Washer Helical M6 |
| 1940 |
XXX |
Not Available As Spare Parts |
| 1956 |
518321570 |
Open Clamp |
| 1961 |
705014429 |
Rubber Stopper This part replaces 705003666. |
| 1995 |
410301203 |
Battery YUASA YTX20L |
| 2051 |
710007777 |
Starter Relay This part replaces 710001364. |
| 2148 |
710004382 |
Ground Cable This part replaces 710001747. |
| 2151 |
710001750 |
POSITIVE CABLE - Call your local BRP dealership |
| 2153 |
710005944 |
Light Harness This part replaces 710001757. |
| 2157 |
710008370 |
Battery Support This part replaces 710003325. |
| 2177 |
Not |
Available As Spare Part - Bulb |
| 2208 |
710009129 |
Retaining Plate This part replaces 710002404. |
| 2209 |
710002567 |
BRACKET - Call your local BRP dealership |
| 2210 |
710006729 |
Battery Cable Cap This part replaces 710002569. |
| 2212 |
710002587 |
Rectifier Support |
