| Ref | Part Number | Description |
|---|
| 1 |
0333258 |
HOUSING, Starter |
| 5 |
ROPE |
Ref: 6 0325431 *SPRING, Starter 0325431 |
| 7 |
0398237 |
PULLEY, Starter |
| 12 |
0333260 |
GUIDE, Rope |
| 24 |
0308624 |
O-RING |
| 27 |
0908511 |
SCREW |
| 28 |
0326129 |
SLEEVE |
| 29 |
0326130 |
GROMMET |
| 30 |
0306861 |
SCREW |
| 31 |
0328731 |
VIS, câble de verrouillage |
| 34 |
0330276 |
LOCKOUT LEVER |
| 35 |
0326128 |
SPRING |
| 36 |
0328456 |
CLAMP |
| 37 |
0329245 |
RATCHET, Flywheel |
| 38 |
0398550 |
PLATE & PIVOT PIN |
| 39 |
0326249 |
HANDLE, Starter |
| 42 |
0437040 |
LOCKOUT LEVER Assy |
| 44 |
0432648 |
BRACKET, Starter handle |
| 45 |
0326136 |
GROMMET |
| 49 |
0328696 |
SCREEN, Ground lead |
| 50 |
0327253 |
TIMING POINTER |
| 53 |
0432645 |
CABLE ASSY., Lockout |
| 54 |
0330338 |
SLIDE |
| 55 |
0304027 |
VIS, arbre de commande de sens de marche |
| 0398235 |
0398235 |

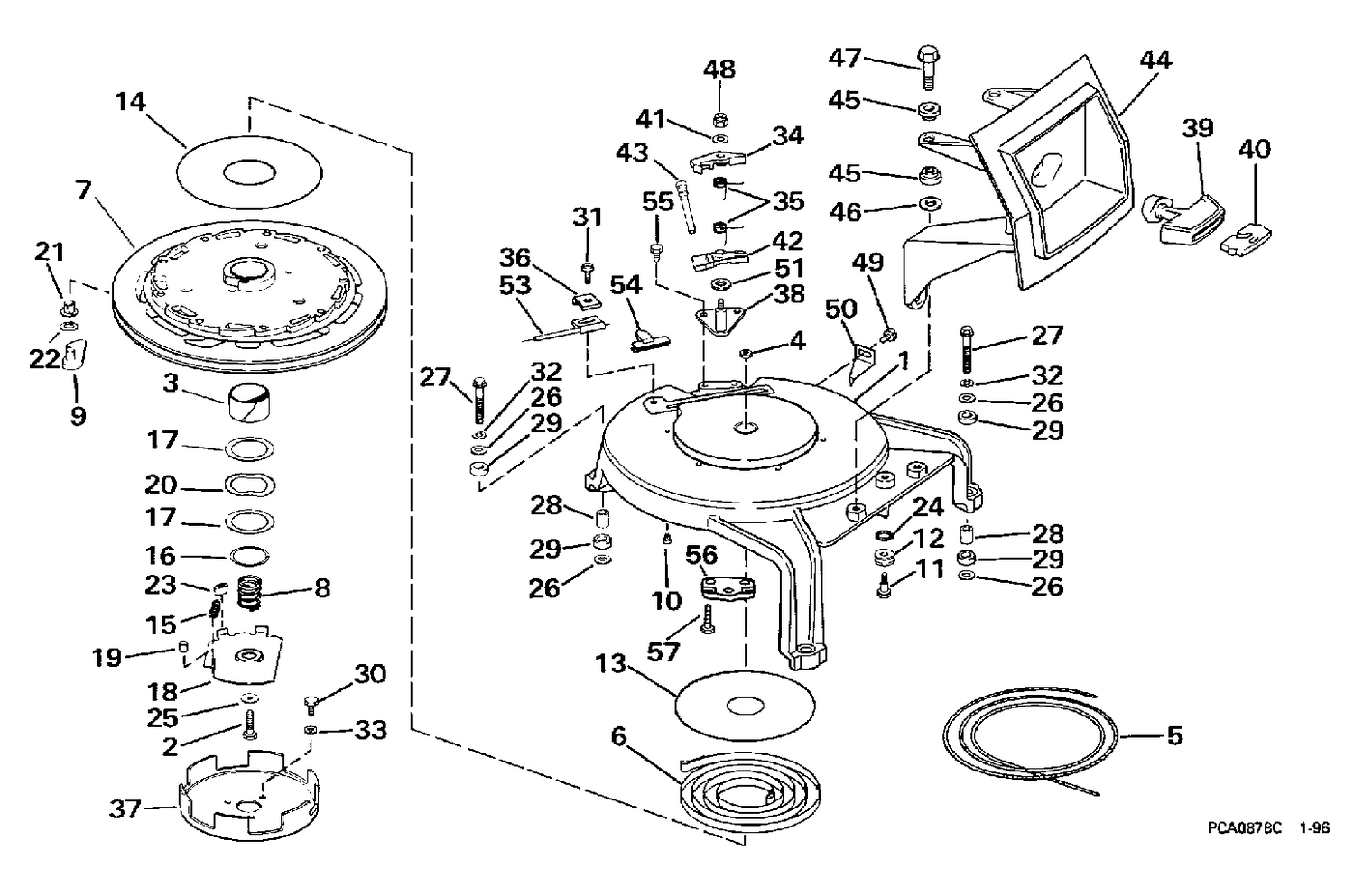

REWIND STARTER ASSY. |
