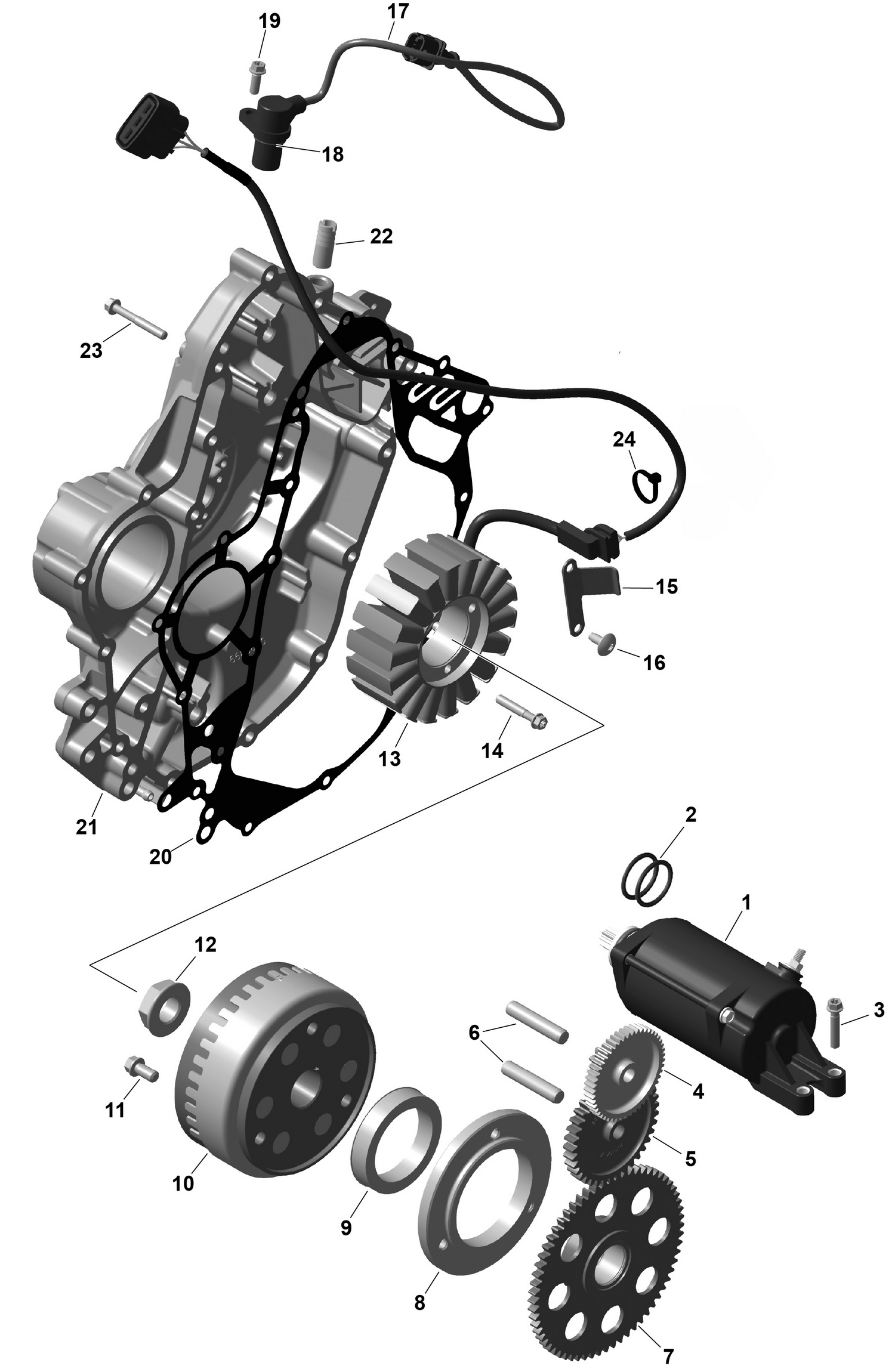

01- ROTAX - Magneto and Electric Starter
Parts (21)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420893838 | Starter Ass'y |
| 2 | 420250140 | O-Ring |
| 3 | 420840888 | Torx Flange Screw M6 X 30 |
| 4 | 420634741 | Starter Double Gear 11/49 T |
| 5 | 420634630 | Intermediate Gear 37 Teeth |
| 6 | 420229302 | Location Pin 10 M6x50 |
| 7 | 420434236 | Free Wheel Gear 64 Teeth |
| 8 | 420659263 | Sparg Clutch Housing |
| 9 | 420659113 | Sprag Clutch |
| 10 | 420686895 | Mag. Flywheel Ass'y |
| 11 | 420440854 | Torx Flange Screw M8 X 16 |
| 12 | 420842340 | Hex. Flange Nut M20 X 1.5 |
| 13 | 420685925 | Stator Assy 14V 420W |
| 14 | 420440274 | Torx Flange Screw M6 X 35 |
| 15 | 420251281 | Cable Cover |
| 16 | 420240051 | Torx Screw M6X13 |
| 17 | 420966570 | Crankshaft Position Sensor Ass'y |
| 18 | 420431580 | O-Ring |
| 19 | 420440164 | Torx Flange Screw M6 X 16 |
| 22 | 420256332 | Hose Nipple |
| 23 | 420440324 | Torx Flange Screw M6 X 45 |
