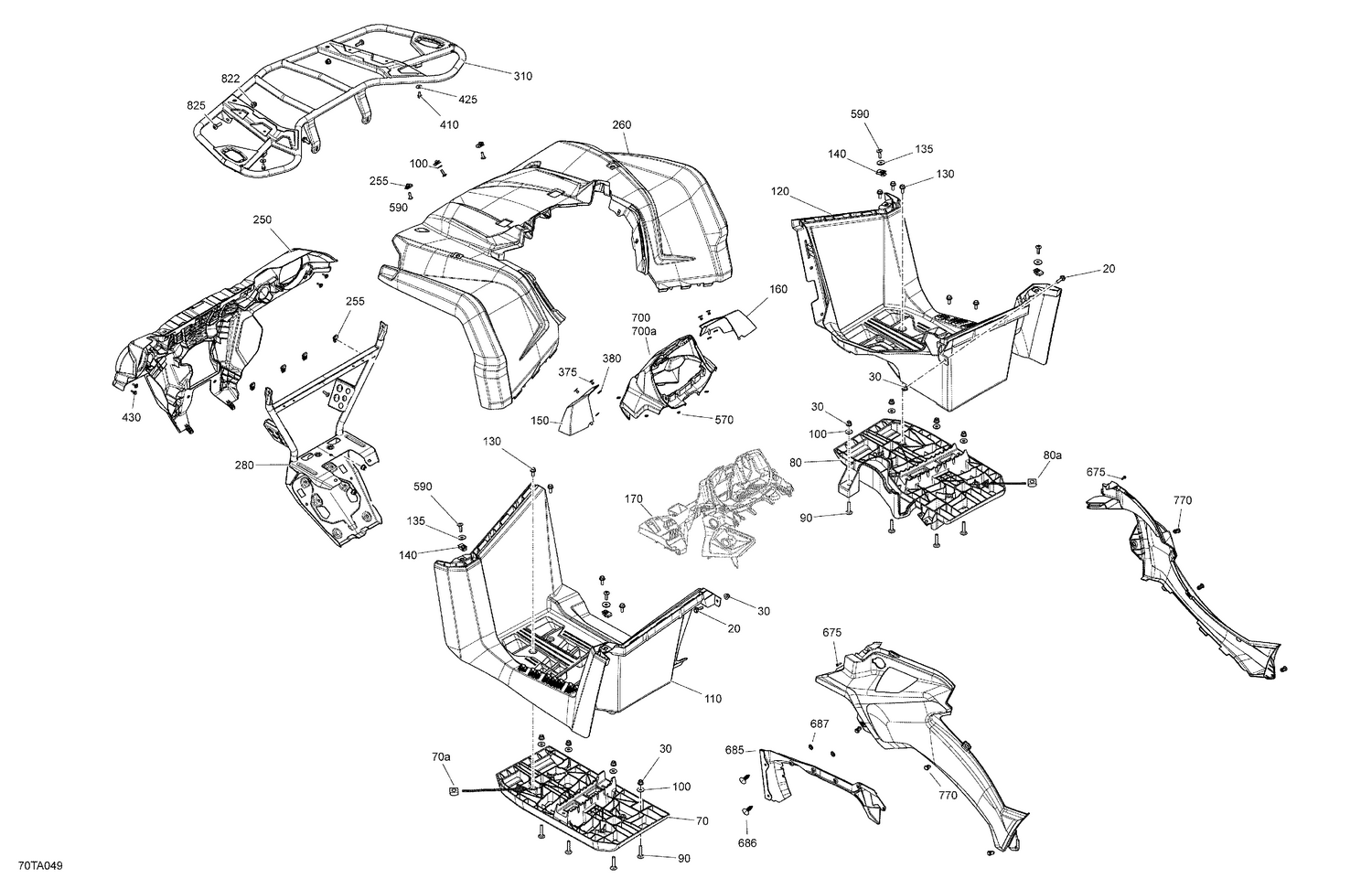

07- Body - Front Section
Parts (33)
| Ref | Part Number | Description |
|---|---|---|
| 20 | 207662054 | Hex. Flange Screw M6 X 20 |
| 30 | 233261434 | Flange Elastic Nut M6 |
| 70a | 232862412 | Square Nut M6 |
| 80a | 232862412 | Square Nut M6 |
| 90 | 207763554 | Carriage Bolt M6 X 35 |
| 100 | 234062410 | Flat Washer 6 mm |
| 110 | 705007040 | LH Step |
| 120 | 705007039 | RH Step |
| 130 | 207662054 | Hex. Flange Screw M6 X 20 |
| 135 | 224061201 | Flat Washer |
| 140 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 150 | 705006134 | LH Air Deflector |
| 160 | 705006135 | RH Air Deflector |
| 170 | 715006101 | Console Support Ass'y |
| 250 | 705009334 | Front Facia |
| 255 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 260 | 715007936 | Tundra Green, Front Fender Ass'y |
| 280 | 705017337 | Front Frame This part replaces 705009256. |
| 310 | 705006887 | Black, Front Luggage Rack |
| 375 | 293150104 | Pop Rivet 3/16" |
| 380 | 517124300 | Washer |
| 410 | 210261250 | Hex. Flange Screw M6 X 12 |
| 425 | 234062670 | Stainless Steel Flat Washer |
| 430 | 250000725 | Screw M4 X 16 |
| 570 | 732610072 | Push Nut |
| 590 | 250000722 | Torx Screw M6 X 20 |
| 675 | 250000723 | Phillips Screw K40 X 16 |
| 685 | 705014061 | Deflector Body Panel |
| 686 | 732610072 | Push Nut |
| 687 | 293730006 | Black, Dart |
| 700a | 705007066 | Gage Support |
| 770 | 293150230 | Tuflok Plastic Rivet |
| 822 | 233281464 | Elastic Flange Nut M8 |
