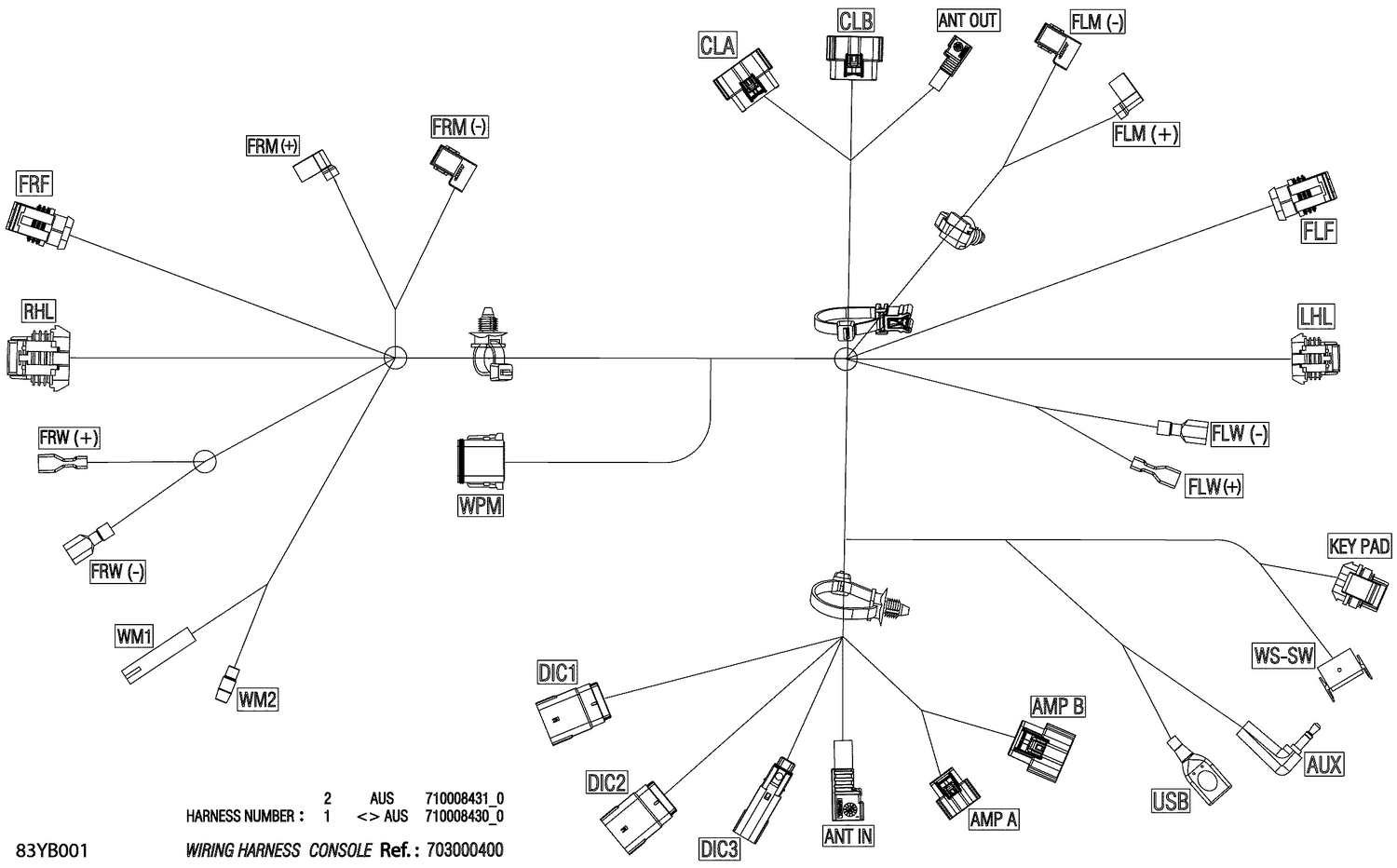

08- Electric - Console Wiring Harness - 710008430
Parts (32)
| Ref | Part Number | Description |
|---|---|---|
| AUX | 278003492 | Audio Jack |
| AUX | 515178018 | Female Terminal |
| DIC1 | 278002860 | Sealing Cap |
| DIC1 | 515178013 | Male Terminal |
| DIC1 | 710005976 | Connector Molex Mx150 16 Pos |
| DIC2 | 278002860 | Sealing Cap |
| DIC2 | 515178013 | Male Terminal |
| DIC2 | 710005977 | Connector Molex Mx150 16 Pos |
| DIC3 | 278002860 | Sealing Cap |
| DIC3 | 515178013 | Male Terminal |
| DIC3 | 515178347 | Male Housing Connector 4 Pins |
| KEYPAD | 710001161 | Housing |
| KEYPAD | 710001163 | Wire Seal |
| KEYPAD | 710001164 | Female Terminal |
| LHL | 278001482 | Seal |
| LHL | 710000645 | Housing |
| LHL | 710001134 | Female Terminal |
| RHL | 278001482 | Seal |
| RHL | 710000645 | Housing |
| RHL | 710001134 | Female Terminal |
| USB | 515178018 | Female Terminal |
| USB | 710006405 | USB Connector |
| WM1 | 278001007 | Insulated Sheath |
| WM1 | 710000421 | Female Terminal |
| WM2 | 278001008 | Insulated Sheath |
| WM2 | 278002261 | Female Terminal |
| WPM | 278000632 | Female Terminal |
| WPM | 278001665 | Female Terminal |
| WPM | 278002377 | Female Terminal Housing, 12 Circuits |
| WPM | 409015700 | Female Lock, 12 Circuits |
| WS_SW | 515178175 | Bloc Femelle 4 Circuits |
| 50 | 710008430 | Console Wiring Harness |
