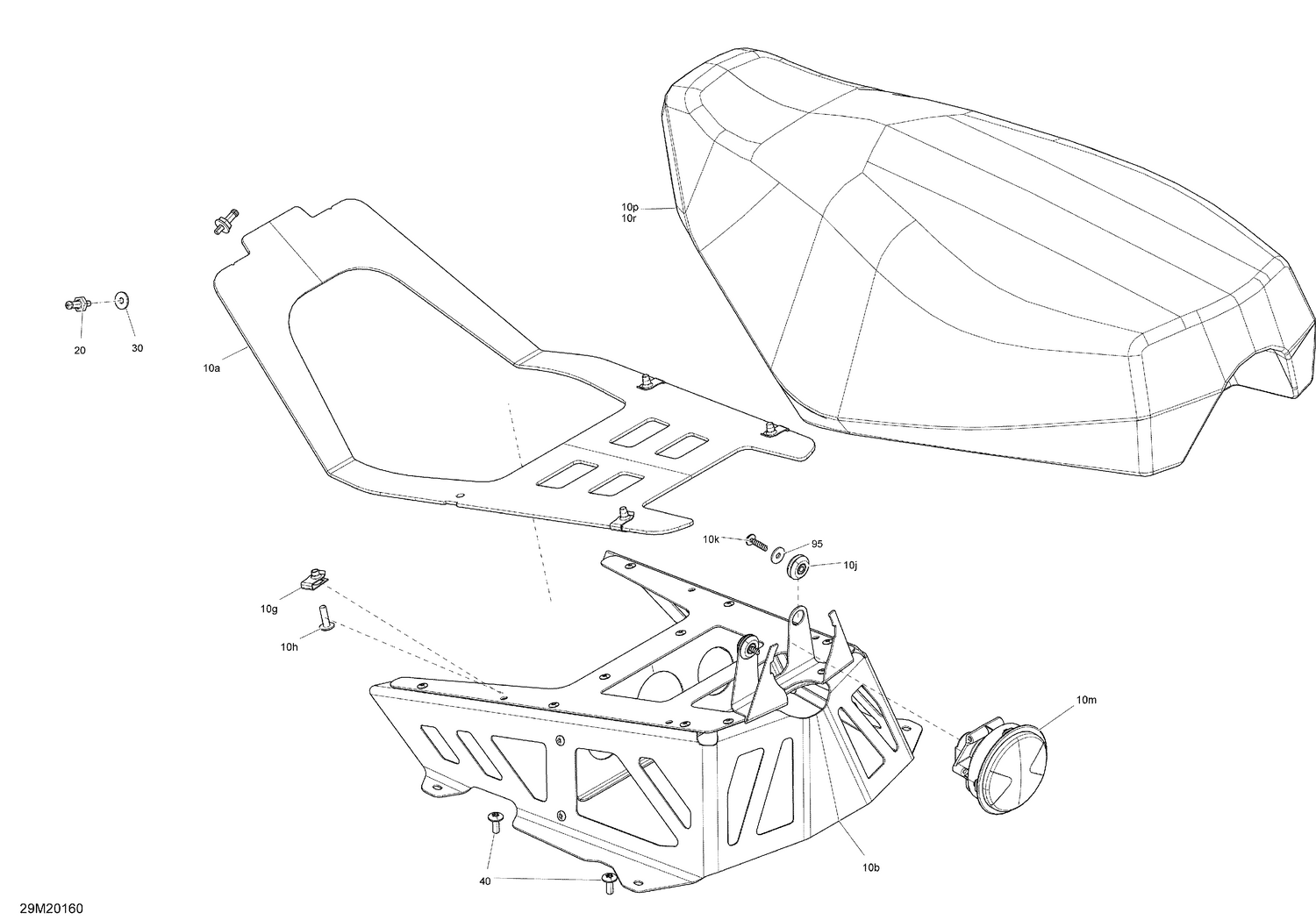

09- Seat - Main Section - Racing
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 10a | 510006984 | Seat Base |
| 10b | 510006985 | SEAT BASE - Call your local BRP dealership |
| 10g | 250100198 | Panel Nut M6 X 1.0 |
| 10h | 250000722 | Torx Screw M6 X 20 |
| 10j | 709000582 | Grommet |
| 10k | 250000760 | Torx Screw Truss Head K50X20 T20 |
| 10m | 710001645 | Tail Light Ass'y |
| 10p | 510006990 | Seat Foam |
| 10r | 510006991 | Seat Cover |
| 20 | 207551044 | Hex. Flange Screw M5 X 10 |
| 30 | 250200140 | Washer |
| 40 | 250000717 | Torx Head Screw M6 X 16 |
