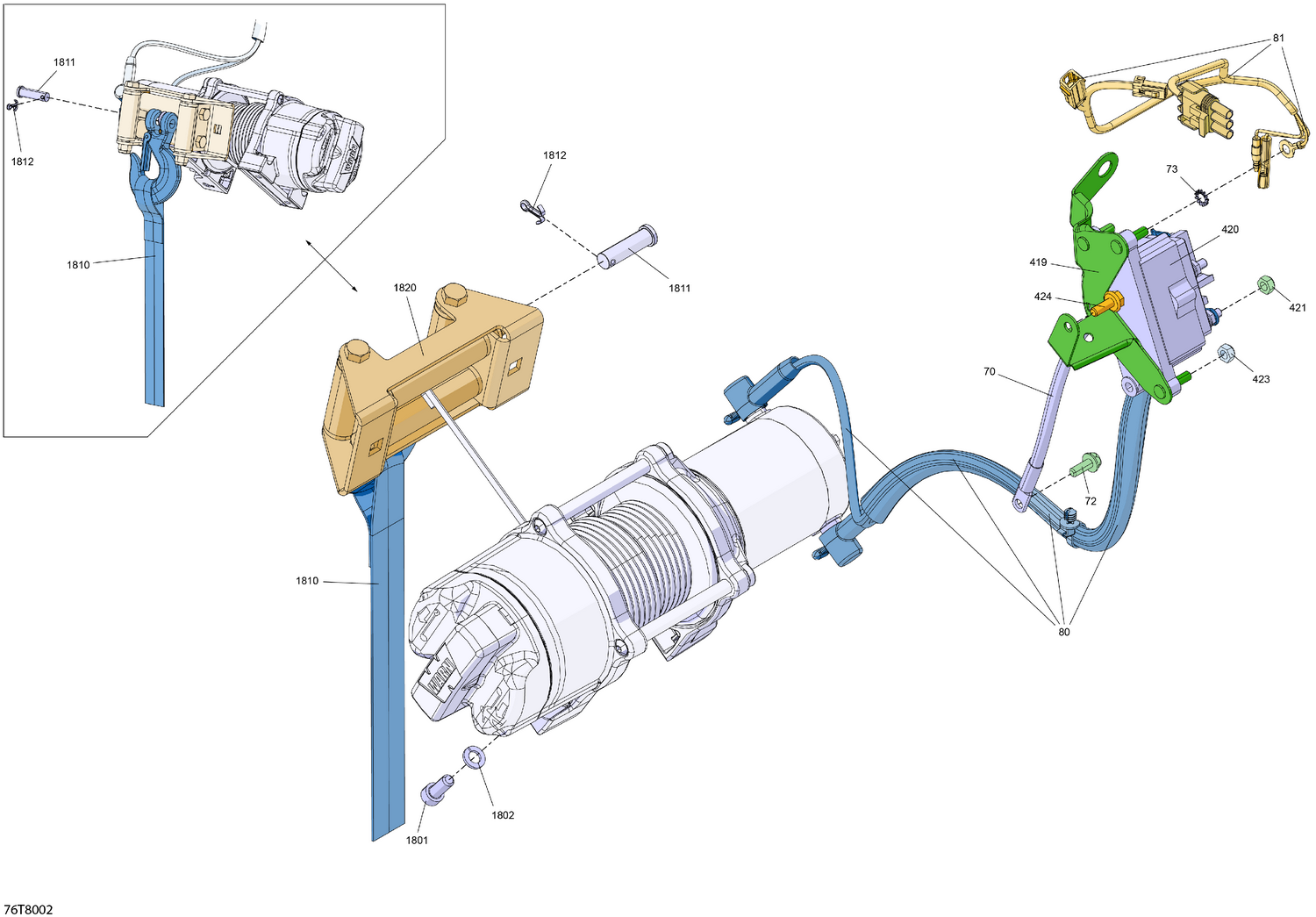

08- Electric - Winch
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 70 | 710005163 | Negative Cable |
| 72 | 210265040 | Hex. Flange Screw M6 X 50 |
| 73 | 234461608 | External Serrated Lock Washer 6 mm |
| 80 | 710004378 | Winch Cables |
| 81 | 710005246 | Winch Cable |
| 419 | 710004935 | Module Support |
| 420 | 710001000 | Winch Solenoid |
| 421 | 232561414 | Elastic Stop Nut M6 |
| 423 | 232561414 | Elastic Stop Nut M6 |
| 424 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 1801 | 205082044 | Socket Head Screw M8 X 20 |
| 1802 | 234181401 | Lock Washer 8 mm |
| 1810 | 705014949 | Winch Hook Kit This part replaces 705002329. |
| 1811 | 250400021 | Clevis Pin |
| 1812 | 250400022 | Cotter Pin |
