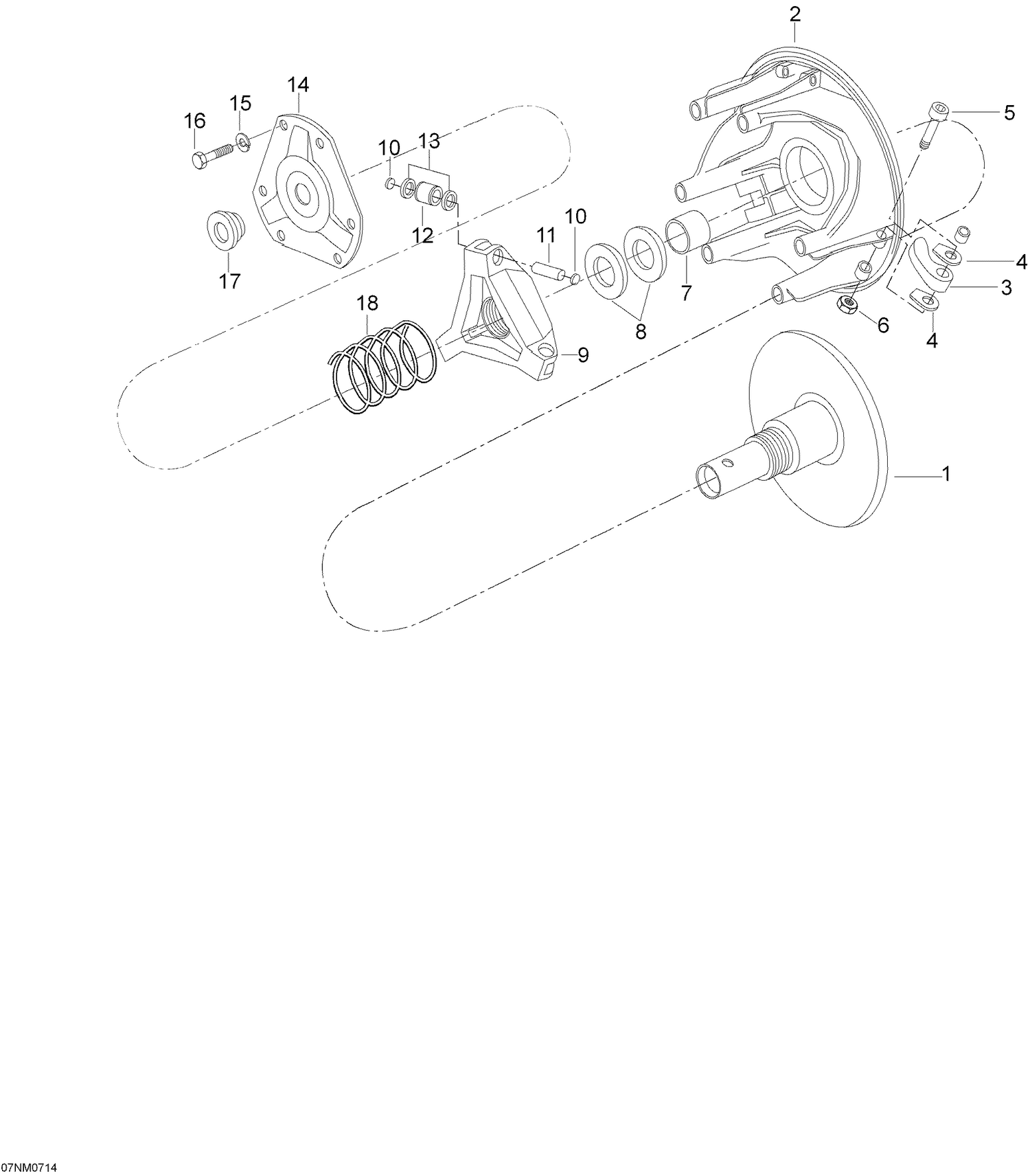

05- Drive Pulley
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 140028 | Fixed pulley |
| 2 | 140024 | Sliding pulley |
| 3 | 140030 | Cam arm |
| 4 | Not | Available As Spare Part - Washer |
| 5 | Not | Available As Spare Part - Allen screw |
| 6 | Not | Available As Spare Part - Nut |
| 7 | 140023 | Bushing |
| 8 | 140022 | Spacer for spider Ass'y |
| 10 | 140021 | Spider thrust button Ass'y |
| 11 | 140020 | Pin assy |
| 12 | 140018 | Roller assy |
| 13 | 140019 | Thrust washer Ass'y |
| 14 | 140016 | Cover plate |
| 15 | Not | Available As Spare Part - Lock washer |
| 16 | Not | Available As Spare Part - Screw |
| 17 | 140013 | Pilot washer |
