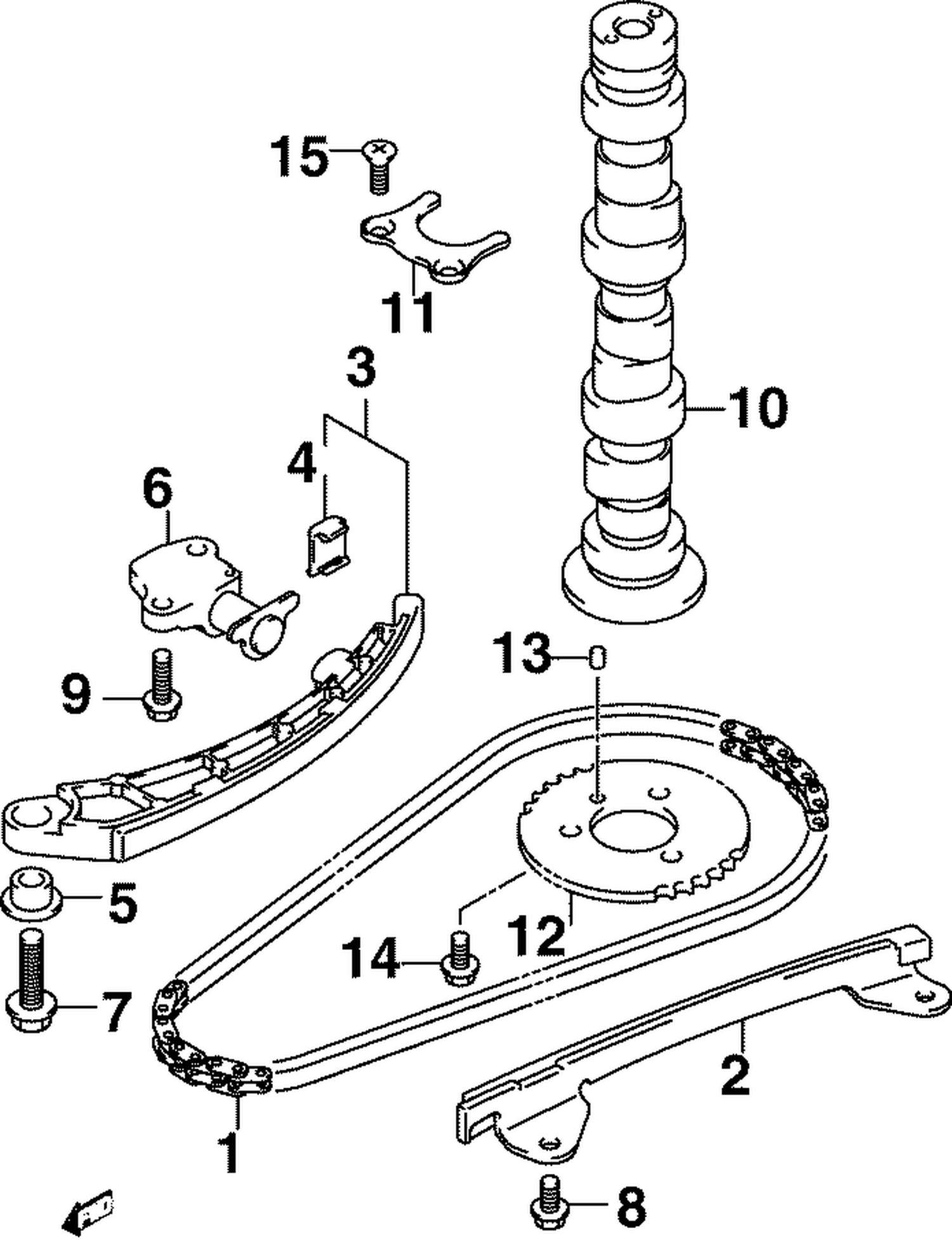

CAMSHAFT
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 5031945 | CHAIN, TIMING |
| 2 | 5031946 | GUIDE, Timing chain |
| 3 | 5034666 | TENSIONER, TIMING CHAIN |
| 5 | 5031336 | SPACER, Timing chain tensioner |
| 6 | 5036680 | ADJUSTER Assy, TENSIONER This part replaces 5034356. |
| 8 | 5031814 | BOLT (6X12) |
| 9 | 5031666 | BOLT |
| 10 | 5031942 | CAMSHAFT |
| 10 | 5032306 | CAMSHAFT |
| 11 | 5031943 | PLATE, Camshaft thrust |
| 12 | 5031944 | SPROCKET, Camshaft timing |
| 13 | 5031882 | KNOCK PIN |
| 14 | 5031664 | BOLT |
