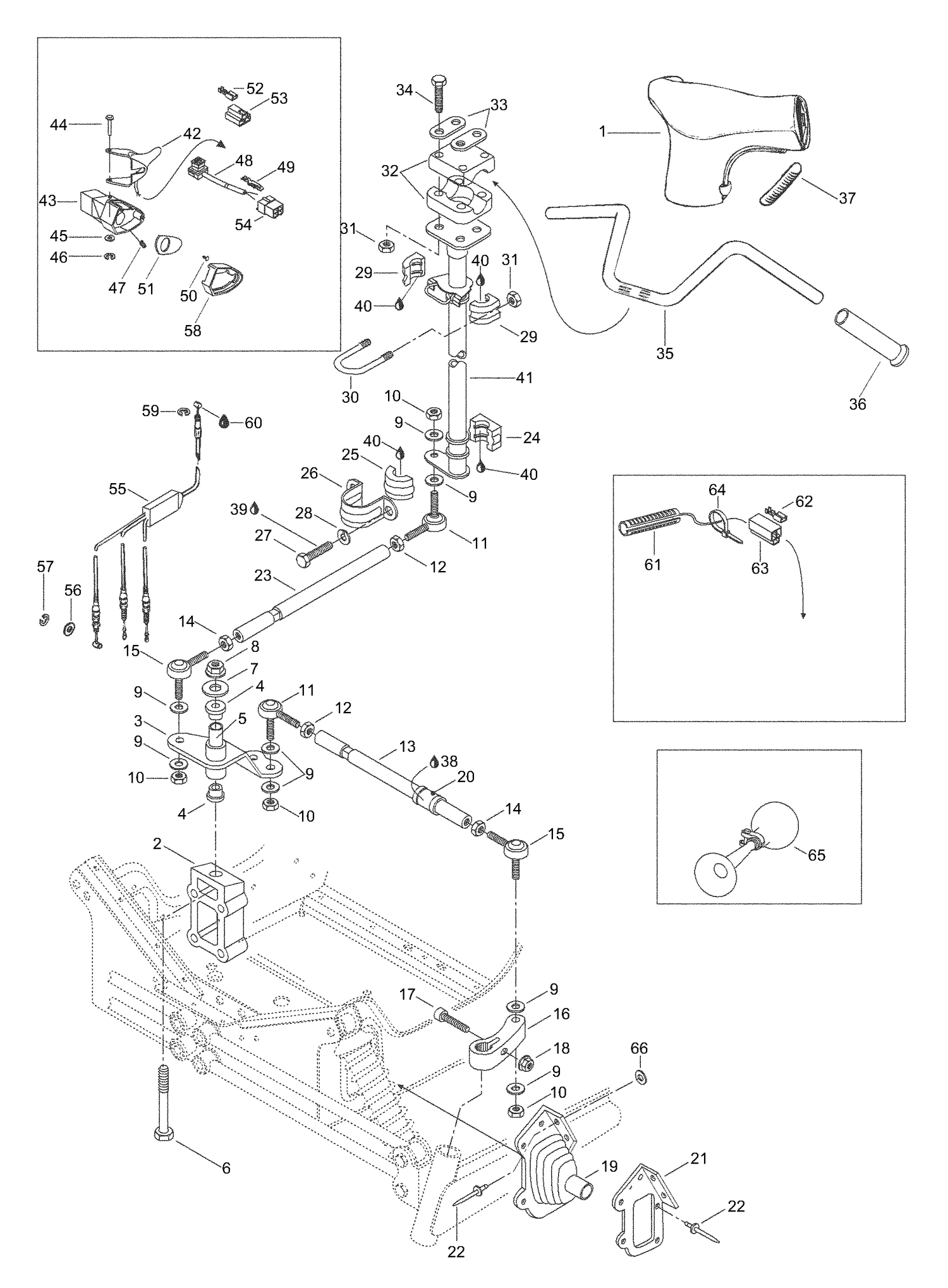

07- Steering
Parts (67)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 514526900 | Steering padding |
| 2 | 506121400 | Block |
| 3 | 506133800 | Pivot arm |
| 4 | 415041100 | CUSHION - Call your local BRP dealership |
| 5 | 415038000 | Sleeve |
| 6 | 40359 | Screw M12x85 |
| 7 | 506136400 | FLAT WASHER - Call your local BRP dealership |
| 8 | 232521414 | NUT-STOP ELASTIC DIN.985 - Call your local BRP dealership This part replaces 33013. |
| 9 | 503175800 | Washer |
| 10 | 33023 | Nut elastic M10 |
| 11 | 506151845 | LH JOINT BALL - Call your local BRP dealership This part replaces 414768100. |
| 12 | 250100016 | LH Threaded Hex. Jam Nut M10 This part replaces 732610011. |
| 13 | 506136000 | Tie rod |
| 14 | 732610010 | RH Threaded Hex. Jam Nut M10 |
| 15 | 506151492 | RH BALL JOINT - Call your local BRP dealership This part replaces 414768000. |
| 16 | 506144800 | R.H. Steering arm |
| 16 | 506144900 | L.H. Steering arm |
| 17 | 40828 | Allen screw M8x35 |
| 18 | 233281414 | Hex. Flange Elastic Nut M8 This part replaces 33201. |
| 19 | 570024800 | R.H. tie rod cap |
| 19 | 570024900 | LH TIE ROD CAP - Call your local BRP dealership |
| 20 | 572036500 | BUSHING - Call your local BRP dealership |
| 21 | 517241200 | R.H. plate cap |
| 21 | 517241300 | LH CAP PLATE - Call your local BRP dealership |
| 22 | 390402200 | Pop Rivet 3/16 |
| 23 | 506110800 | Tie rod |
| 24 | 572064400 | Sleeve |
| 25 | 572064500 | BUSHING - Call your local BRP dealership |
| 26 | 517126200 | Retaining support |
| 27 | 40036 | Screw M8x20 |
| 28 | 20014 | Spring washer |
| 29 | 572067100 | HALF-BUSHING - Call your local BRP dealership |
| 30 | 506060600 | U-clamp |
| 31 | 232581414 | Hex. Elastic Stop Nut M8 This part replaces 33011. |
| 32 | 277000142 | STEERING CLAMP - Call your local BRP dealership |
| 33 | 709400509 | Stiffner This part replaces 506151196. |
| 34 | 40010 | Screw M8x55 |
| 35 | 506125900 | Handle bar |
| 36 | 5340464 | Grip |
| 38 | 293550030 | Grease, Super Lube This part replaces 293550014. |
| 39 | 293800005 | Loctite 271, 10ml |
| 40 | 413711500 | SYNTHETIC GREASE - Call your local BRP dealership |
| 41 | 506151114 | Main tube |
| 42 | 512060214 | Handle Assy This part replaces 512059144. |
| 43 | 512060603 | Housing throttle This part replaces 512059334. |
| 44 | 414438700 | Lever pin |
| 45 | 234051600 | Washer M5 This part replaces 414438900. |
| 46 | 414439000 | Circlip |
| 47 | 414440800 | Socket Set Screw M8 X 10 |
| 48 | 515177362 | Kill Switch This part replaces 512059146. |
| 49 | 409210000 | MALE TERMINAL - Call your local BRP dealership |
| 50 | 414473200 | Screw |
| 51 | 512060390 | Plate This part replaces 572099400. |
| 52 | 515175253 | FEMALE TERMINAL - Call your local BRP dealership |
| 53 | 409008500 | Female connector |
| 54 | 409209300 | MALE HOUSING - Call your local BRP dealership |
| 55 | 414883100 | THROTTLE CABLE AND HOUSING - Call your local BRP dealership |
| 56 | 234081100 | Flat Washer 8 mm This part replaces 414753300. |
| 57 | 414753500 | Circlip |
| 58 | 572044600 | THROTTLE COVER - Call your local BRP dealership |
| 59 | 414274500 | Circlip |
| 60 | 293550004 | Grease |
| 61 | 515175573 | Heater This part replaces 515175387. |
| 62 | 515175252 | FEMALE TERMINAL - Call your local BRP dealership |
| 63 | 409204300 | Female connector |
| 64 | 293750008 | Tie-Rap 368 mm This part replaces 27100. |
| 65 | 549011291 | Horn This part replaces 21003. |
