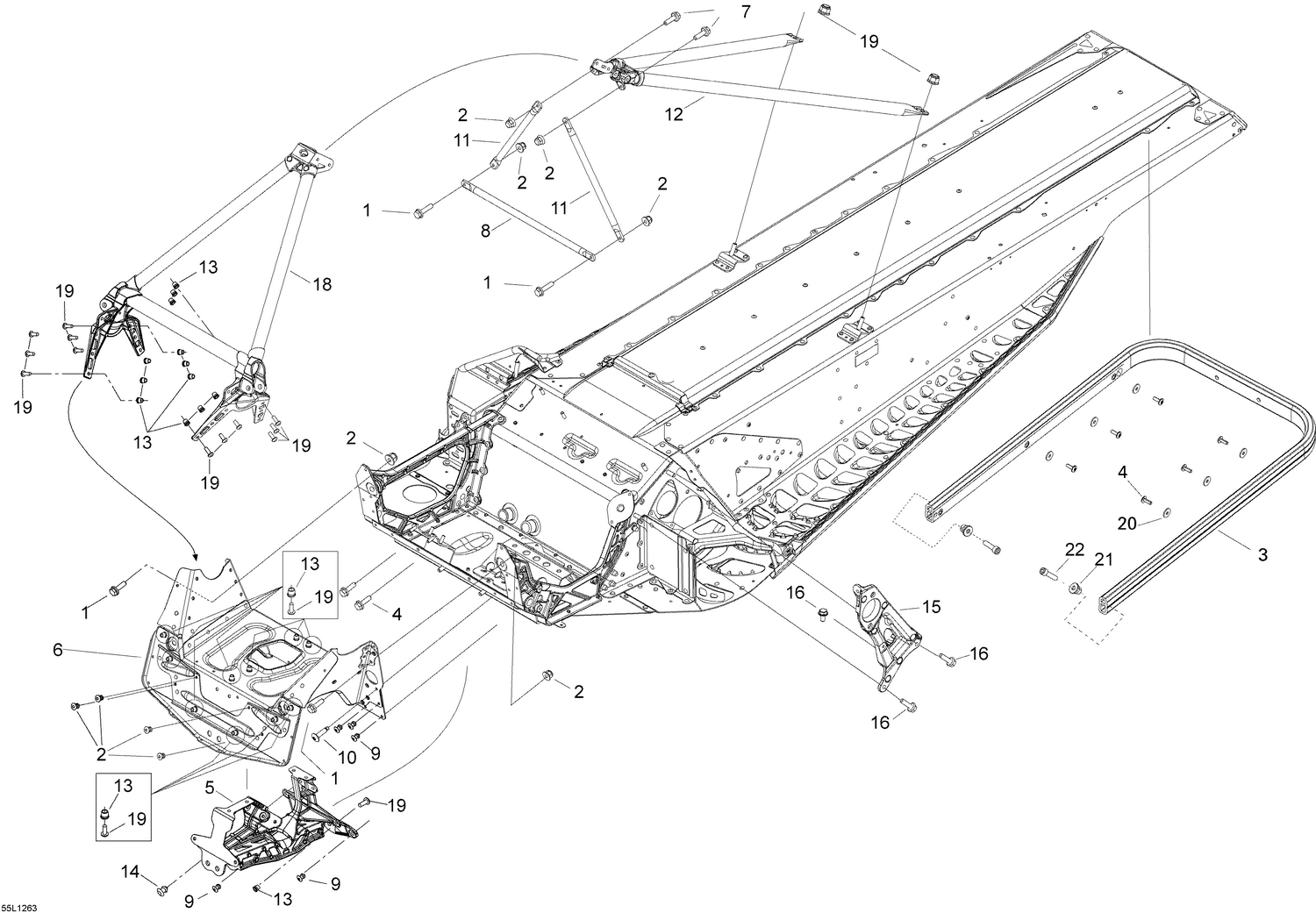

09- Frame And Components
Parts (21)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 207662544 | Hex. Flange Screw M6 X 25 |
| 2 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 3 | 510005582 | Rack bar, black |
| 4 | 250000779 | Torx Screw M6 X 1.0 X 18, Scotch Grip This part replaces 250000402. |
| 5 | 518327487 | Support This part replaces 518325925. |
| 6 | 518326762 | Cross member (S-module) |
| 7 | 207662044 | Hex. Flange Screw M6 X 20 |
| 8 | 518325115 | Center Column Support |
| 9 | 293150144 | Stavex Rivet |
| 10 | 210262050 | Forming Screw M6 x 20 This part replaces 210262080. |
| 11 | 518325114 | Upper Column Support |
| 12 | 518326685 | Rear Member |
| 13 | 207662044 | Hex. Flange Screw M6 X 20 |
| 14 | 293150266 | Rivet Ornit 6,5 X 14.5 This part replaces 293150147. |
| 15 | 518327460 | Pulley Support This part replaces 518326192. |
| 16 | 207582586 | Hex. Flange Screw M8 X 25, Scotch Grip |
| 17 | 205862044 | Socket Head Screw M6 X 20, Scotch Grip |
| 18 | 518326970 | Front Member This part replaces 518326555. |
| 19 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 20 | 224061201 | Flat Washer |
| 21 | 510005287 | Bushing |
