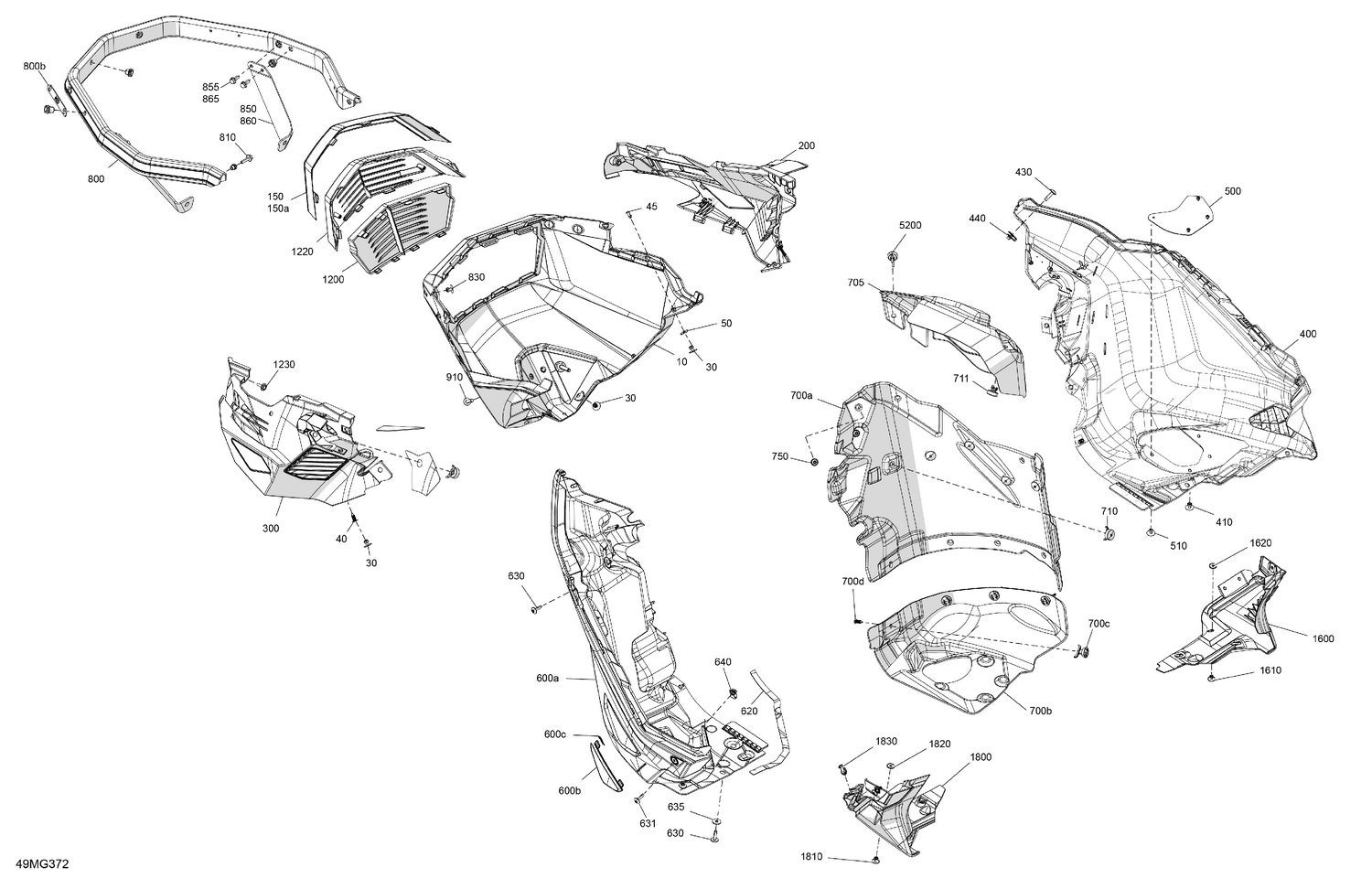

| Ref | Part Number | Description |
|---|
| 10 |
502008525 |
Deep Black, Front Bottom Pan |
| 30 |
293150321 |
Black, Rivet Ornit 4.8 X 14 |
| 40 |
293730079 |
Dart |
| 45 |
293150314 |
Rivet Ornit 4,8 X 14,3 |
| 50 |
250200025 |
Washer M5 |
| 150a |
502008354 |
Deep Black, Central Trim |
| 200 |
502008264 |
Deep Black, RH Bottom Pan Cap |
| 300 |
502009004 |
Deep Black, LH Bottom Pan Cap |
| 400 |
502008783 |
Deep Black, RH Bottom Pan |
| 410 |
293150322 |
Black, Rivet Ornit 4.8 X 12 |
| 430 |
250000586 |
Torx Truss M5 X 20 |
| 440 |
250000958 |
Panel Nut M5 X 0.8 |
| 500 |
502007868 |
Plate |
| 510 |
293150322 |
Black, Rivet Ornit 4.8 X 12 |
| 600a |
502008786 |
Deep Black, LH Bottom Pan |
| 600b |
502007676 |
Bottom Pan Door |
| 600c |
269800431 |
Hairpin Cotter |
| 620 |
219704476 |
Gasket, Neoprene 2000Mm Long |
| 630 |
250001232 |
Screw Torx M5 X 20 |
| 631 |
250001232 |
Screw Torx M5 X 20 |
| 635 |
250200025 |
Washer M5 |
| 640 |
250000958 |
Panel Nut M5 X 0.8 |
| 700a |
502009018 |
Rear Central Acoustic Panel |
| 700b |
502008865 |
RH Lower Acoustic Panel |
| 700c |
502008753 |
Stopper |
| 700d |
293730062 |
Dart |
| 705 |
502008868 |
Acoustic Panel |
| 710 |
502008752 |
Stopper |
| 711 |
502008752 |
Stopper |
| 750 |
250000546 |
Oval Head Torx Screw K60 X 16 |
| 800b |
502007880 |
Bumper Trim |
| 810 |
207552044 |
Hex. Flange Screw M5 X 20, Scotch Grip |
| 830 |
293150321 |
Black, Rivet Ornit 4.8 X 14 |
| 850 |
502008968 |
RH Interior Bumper Reinforcement |
| 855 |
207661644 |
Hex. Flange Screw M6 X 16 |
| 860 |
502008969 |
LH Interior Bumper Reinforcement |
| 865 |
207661644 |
Hex. Flange Screw M6 X 16 |
| 910 |
250000758 |
Torx Screw M6 X 25 |
| 1200 |
502008245 |
Lower Prefilter Grille |
| 1220 |
502008736 |
Upper Grille Prefilter |
| 1230 |
250000725 |
Screw M4 X 16 |
| 1600 |
502007871 |
RH Bottom Pan Panel |
| 1610 |
293150322 |
Black, Rivet Ornit 4.8 X 12 |
| 1620 |
517124300 |
Washer |
| 1800 |
502007872 |
LH Panel |
| 1810 |
293150322 |
Black, Rivet Ornit 4.8 X 12 |
| 1820 |
517124300 |
Washer |
| 1830 |
293150230 |
Tuflok Plastic Rivet |
