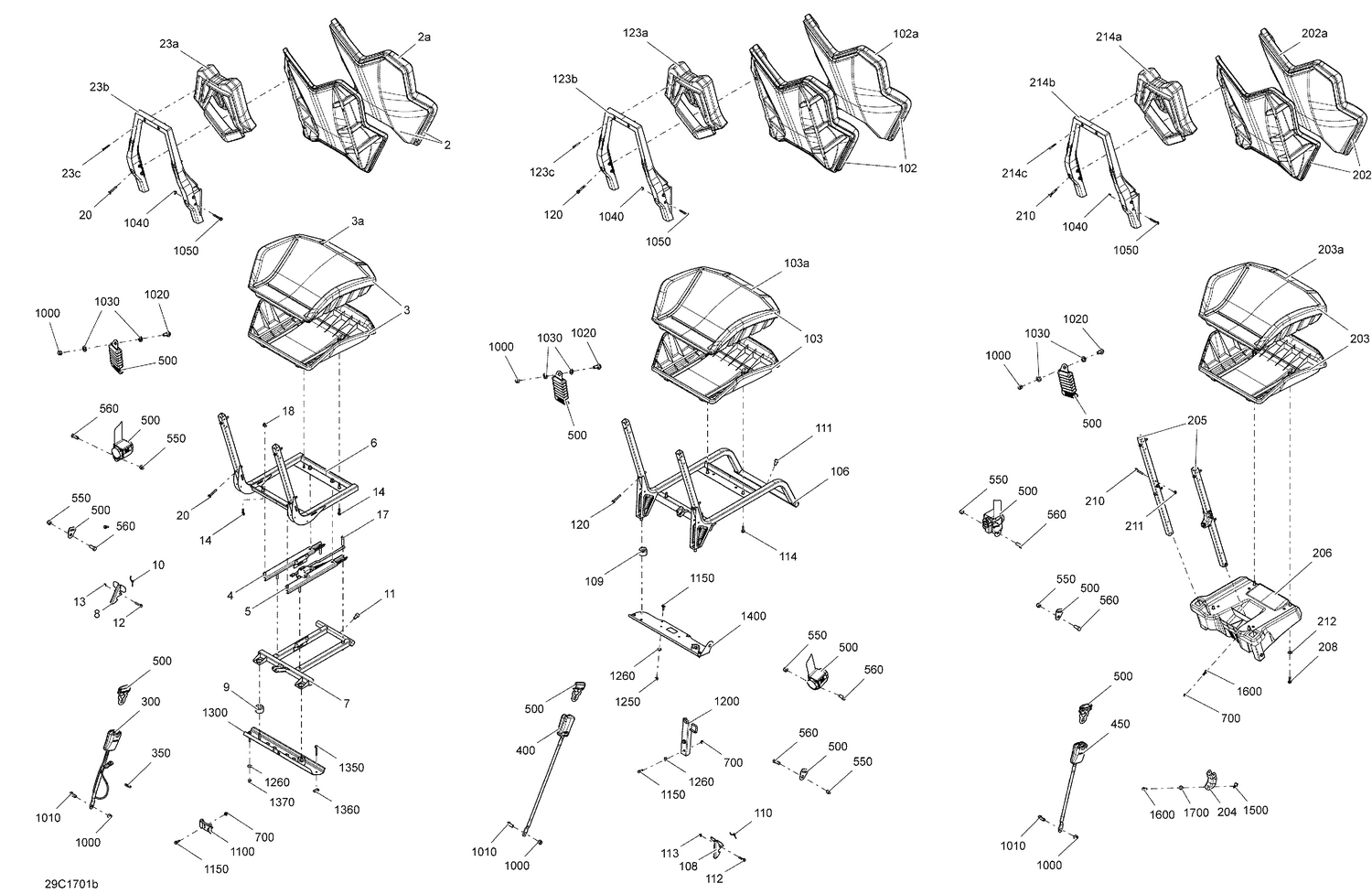

09- Seat - Commander MAX
Parts (65)
| Ref | Part Number | Description |
|---|---|---|
| 4 | 708000848 | LH Rail |
| 5 | 708001739 | RH Rail |
| 6 | 708001356 | Operator Seat Frame |
| 7 | 708001174 | Seat Member |
| 8 | 708001355 | Seat Latch |
| 9 | 708001671 | Rubber Bumper |
| 10 | 708000921 | Spring |
| 11 | 205501644 | Socket Screw M10 X 16 |
| 12 | 207563034 | Hex. Flange Screw M6 X 30, Scotch Grip |
| 13 | 232561600 | Hex. Elastic Stop Nut M6 |
| 14 | 207562544 | Hex. Flange Screw M6 X 25 |
| 17 | 205084044 | Socket Head Screw M8 X 1.25 X 40 |
| 18 | 233281414 | Hex. Flange Elastic Nut M8 |
| 20 | 250000672 | Hex. Flange Screw M6 |
| 23a | 708001074 | Head Rest |
| 23b | 708001245 | Seat Support |
| 23c | 250000897 | Hex. Flange Screw K50 X 40 This part replaces 250000897. |
| 106 | 708001357 | Passenger Seat Frame |
| 108 | 708001355 | Seat Latch |
| 109 | 708001671 | Rubber Bumper |
| 110 | 708000921 | Spring |
| 111 | 205501644 | Socket Screw M10 X 16 |
| 112 | 207563034 | Hex. Flange Screw M6 X 30, Scotch Grip |
| 113 | 232561600 | Hex. Elastic Stop Nut M6 |
| 114 | 207562544 | Hex. Flange Screw M6 X 25 |
| 120 | 250000672 | Hex. Flange Screw M6 |
| 123a | 708001074 | Head Rest |
| 123b | 708001245 | Seat Support |
| 123c | 250000897 | Hex. Flange Screw K50 X 40 This part replaces 250000897. |
| 204 | 708001474 | Rear Anchor |
| 205 | 708001476 | Side Tube |
| 206 | 708001198 | Seat Support |
| 208 | 207562544 | Hex. Flange Screw M6 X 25 |
| 210 | 250000672 | Hex. Flange Screw M6 |
| 211 | 233161464 | Hex. Elastic Flange Nut M6 |
| 212 | 234062670 | Stainless Steel Flat Washer |
| 214a | 708001074 | Head Rest |
| 214b | 708001245 | Seat Support |
| 214c | 250000897 | Hex. Flange Screw K50 X 40 This part replaces 250000897. |
| 300 | 708002061 | Driver Buckle Side |
| 350 | 293750008 | Tie Wrap 368 mm |
| 400 | 708002064 | Passenger Buckle Side |
| 450 | 708002063 | Rear Passenger Buckle Side |
| 500 | 708001854 | Safety Belt |
| 550 | 250100135 | Nylon Insert Hex. Lock Nut 7/16-20 |
| 560 | 250000521 | Hex. Cap Screw 7/16'' X 1'' |
| 700 | 250100242 | Threaded Insert M6 X 1.0 This part replaces 293450274. |
| 1000 | 250100135 | Nylon Insert Hex. Lock Nut 7/16-20 |
| 1010 | 250000521 | Hex. Cap Screw 7/16'' X 1'' |
| 1020 | 708000890 | Safety Belt Screw |
| 1030 | 708000891 | Position Washer |
| 1040 | 233161464 | Hex. Elastic Flange Nut M6 |
| 1100 | 708001212 | Anchor |
| 1150 | 207562054 | Hex. Flange Screw S.Grip M6 X 20 |
| 1200 | 708001213 | Anchor |
| 1250 | 233061414 | Hex. Flange Nut M6 |
| 1260 | 234062670 | Stainless Steel Flat Washer |
| 1300 | 708001214 | Seat Support |
| 1350 | 250000213 | Hex. Flange Screw M6 X 1.0 X 45 |
| 1360 | 250100171 | Panel Nut M6 X 1.0 |
| 1370 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 1400 | 708001804 | Support |
| 1500 | 250100171 | Panel Nut M6 X 1.0 |
| 1600 | 207562054 | Hex. Flange Screw S.Grip M6 X 20 |
| 1700 | 234281474 | Conical Spring Washer M8 |
