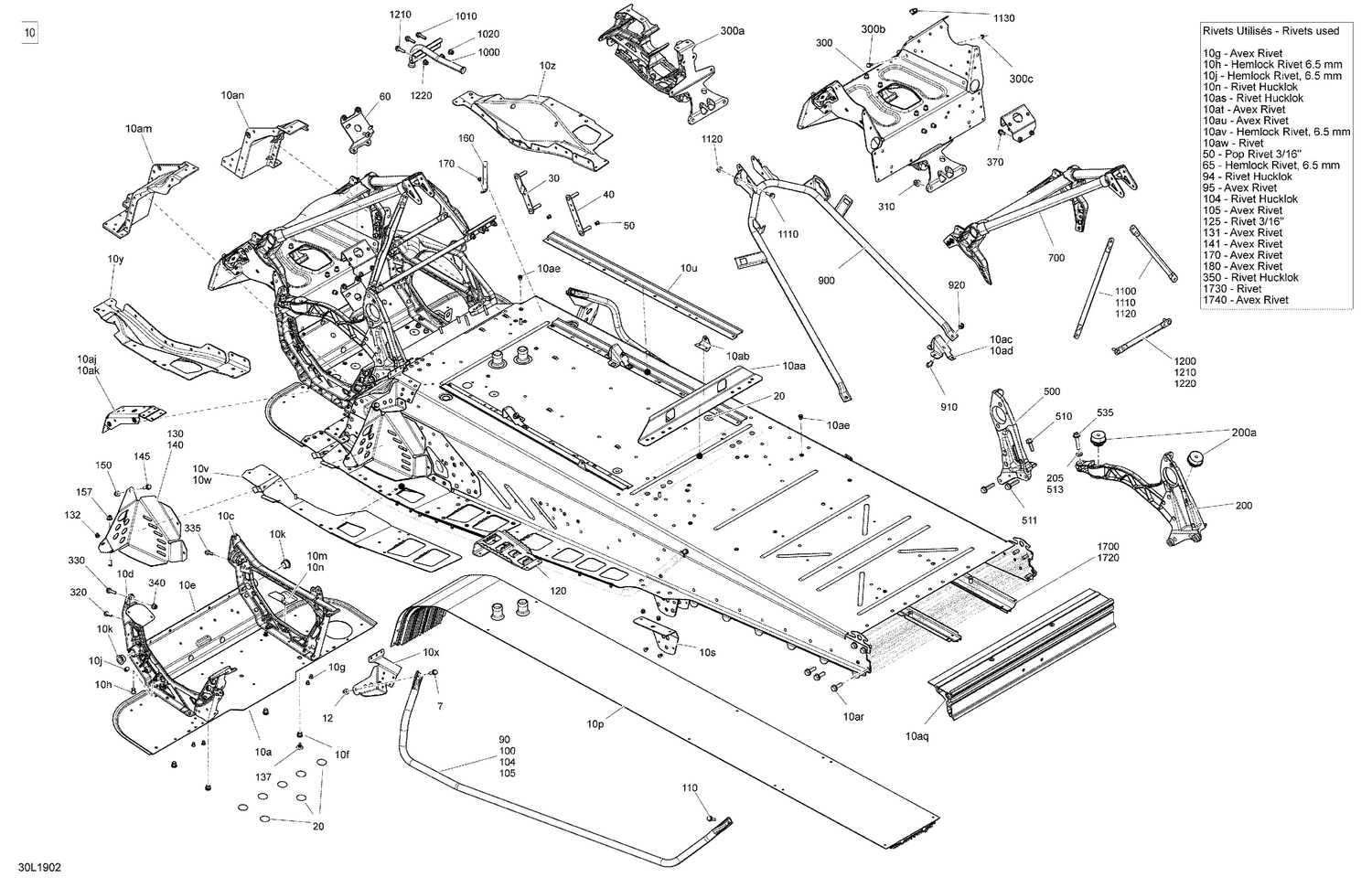

| Ref | Part Number | Description |
|---|
| 10aa |
518325986 |
BATTERY SUPPORT PLATE - Call your local BRP dealership |
| 10ab |
518329164 |
Seat Box Bracket |
| 10ac |
518329109 |
LH Support Tube Bracket |
| 10ad |
518329110 |
RH Support Tube Bracket |
| 10ae |
605636003 |
Clinch Nut M6 Hexsert |
| 10aj |
518326430 |
Clinch Nut Plate |
| 10ak |
250100065 |
Clinching Nut Hexert M8 |
| 10am |
518325524 |
Frame corner L.H. |
| 10an |
518328024 |
Frame Corner RH |
| 10aq |
518328748 |
Rear Profile |
| 10ar |
207582586 |
Hex. Flange Screw M8 X 25, Scotch Grip |
| 10as |
293150163 |
Rivet Hucklok |
| 10at |
390909100 |
Avex Rivet |
| 10au |
390909200 |
Avex Rivet |
| 10av |
293150119 |
Hemlock Rivet, 6.5 mm |
| 10aw |
293150183 |
Rivet hemlock 19.7 mm. |
| 10c |
518326328 |
RH Side Member |
| 10d |
518326330 |
LH Side Member |
| 10e |
518326198 |
Front Member |
| 10f |
605636002 |
Clinch Nut Hexsert M8 |
| 10g |
390909100 |
Avex Rivet |
| 10h |
293150120 |
Hemlock Rivet 6.5 mm |
| 10j |
293150119 |
Hemlock Rivet, 6.5 mm |
| 10k |
505072690 |
Leg Bushing |
| 10m |
518327983 |
SUPPORT_EXHAUST - Call your local BRP dealership |
| 10n |
293150163 |
Rivet Hucklok |
| 10p |
509000976 |
Tunnel Radiator |
| 10q |
205061244 |
Socket Head Screw M6 x 12 |
| 10u |
518326107 |
Fastening Rail |
| 10v |
518328332 |
Footrest LH |
| 10w |
518328333 |
Footrest RH |
| 10x |
605355235 |
FASTENING BRACKET - Call your local BRP dealership |
| 10y |
518328016 |
LH Drive Axle Cover |
| 10z |
518328017 |
RH Drive Axle Cover |
| 20 |
518325560 |
Adhesive Patch |
| 30 |
518326123 |
GEARBOX FRONT PLATE - Call your local BRP dealership |
| 40 |
518326124 |
Gearbox Counter Plate, Rear |
| 50 |
390402200 |
Pop Rivet 3/16 |
| 60 |
518326178 |
MAG Engine Support |
| 65 |
293150174 |
Hemlock Rivet, 6.5 mm |
| 90 |
518326963 |
Footboard Support Tube, LH |
| 94 |
293150163 |
Rivet Hucklok |
| 95 |
390909100 |
Avex Rivet |
| 100 |
518326964 |
Footboard Support Tube, RH |
| 104 |
293150163 |
Rivet Hucklok |
| 105 |
390909100 |
Avex Rivet |
| 110 |
207662056 |
Socket Head Screw M6x20 8.8 |
| 130 |
518327374 |
Toe hook L.H. Black |
| 131 |
390909200 |
Avex Rivet |
| 132 |
605636003 |
Clinch Nut M6 Hexsert |
| 137 |
414644300 |
Black, Dart |
| 140 |
518327376 |
Toe hook R.H. Black |
| 141 |
390909200 |
Avex Rivet |
| 145 |
207662056 |
Socket Head Screw M6x20 8.8 |
| 150 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 160 |
514054846 |
Spring Bracket |
| 170 |
390909200 |
Avex Rivet |
| 180 |
390909200 |
Avex Rivet |
| 200a |
512061516 |
Vibration Damper This part replaces 512060295. |
| 205 |
234281474 |
Conical Spring Washer M8 |
| 300a |
518327487 |
Front Suspension Support |
| 300b |
207161444 |
Hex. Screw M6 X 14 |
| 300c |
232561600 |
Hex. Elastic Stop Nut M6 |
| 310 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 320 |
210262050 |
Washer Head Hexagonal Screw |
| 330 |
207662544 |
Hex. Flange Screw M6 X 25 |
| 335 |
207662544 |
Hex. Flange Screw M6 X 25 |
| 340 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 350 |
293150163 |
Rivet Hucklok |
| 370 |
207661644 |
Hex. Flange Screw M6 X 16 |
| 510 |
207582586 |
Hex. Flange Screw M8 X 25, Scotch Grip |
| 511 |
250000986 |
Hex. Flanged Screw M8 X 35 This part replaces 207583586. |
| 535 |
207584044 |
Hex. Flange Screw M8 X 40, Scotch Grip |
| 700 |
518326975 |
Front Member Ass'y |
| 900 |
518329105 |
Upper Support Tube |
| 910 |
207182044 |
Hex. Screw M6 X 20, Scotch Grip |
| 920 |
232581414 |
Hex. Elastic Stop Nut M8 |
| 1100 |
518326848 |
Upper Column Support |
| 1110 |
207662056 |
Socket Head Screw M6x20 8.8 |
| 1120 |
233261416 |
Elastic Flanged Nut M6 X 1.0 |
| 1130 |
414227300 |
Clip |
| 1200 |
518326355 |
Center Column Support |
| 1210 |
207662556 |
Hex. Flange Screw M6 X 25 |
| 1220 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
