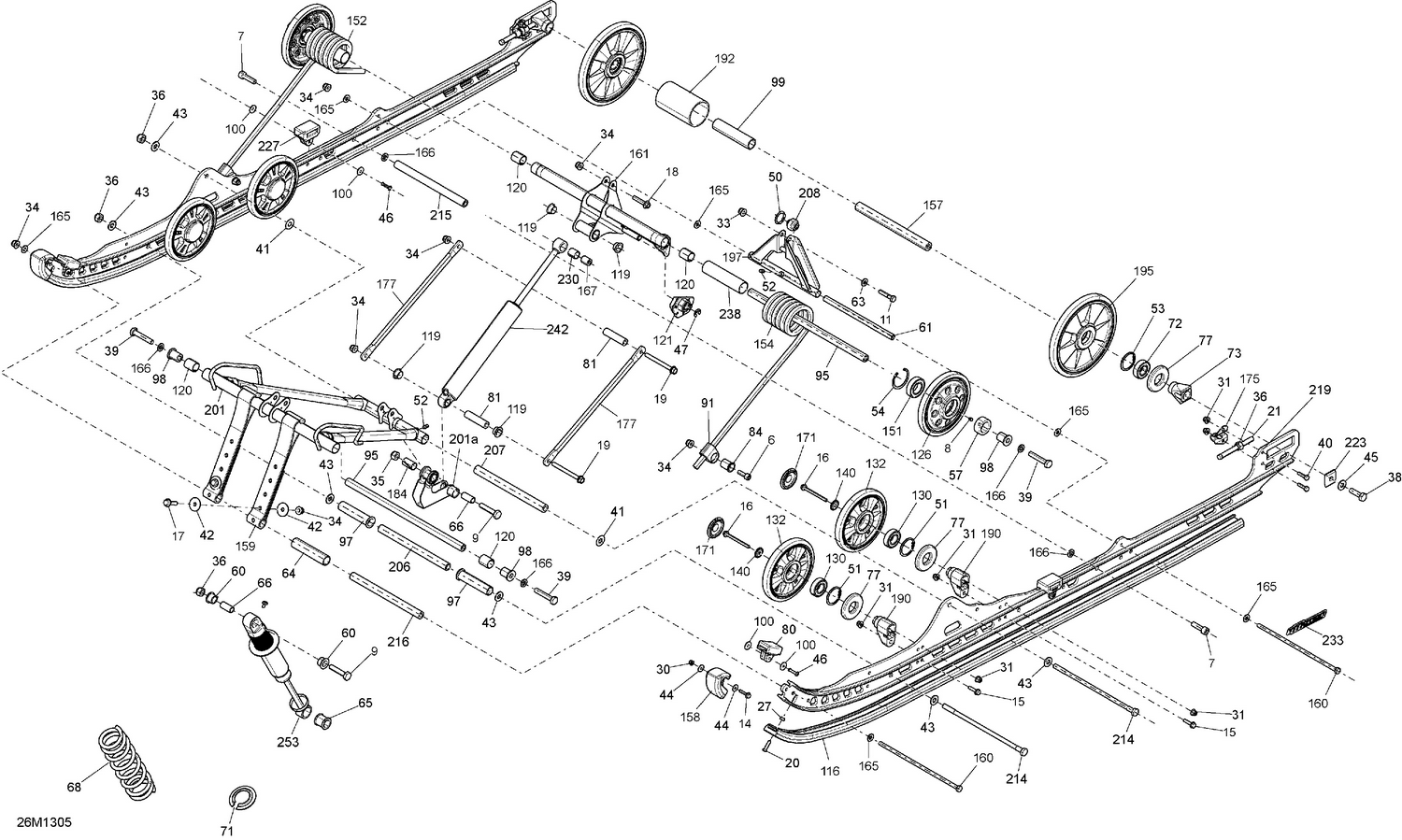

08- Rear Suspension
Parts (48)
| Ref | Part Number | Description |
|---|---|---|
| 6 | 205082554 | Socket Screw M8 X 25 |
| 7 | 205503554 | Socket Head Screw M10 X 35 |
| 8 | 206260844 | Socket Set Screw M6 X 8 |
| 9 | 207005044 | Hex. Screw M10 X 1.5 X 50 |
| 14 | 207652544 | Hex. Flange Screw M5 X 25 |
| 15 | 207662556 | Hex. Flange Screw M6 X 25 |
| 16 | 207667056 | Hex. Flange Screw M6 X 70 |
| 18 | 207684044 | Hex. Flange Screw M8 X 40 |
| 19 | 207688544 | Hex. Flange Screw |
| 21 | 230100054 | Hex Screw M10 x 100 |
| 30 | 233251434 | Flange Elastic Nut M5 This part replaces 233251414. |
| 31 | 233261466 | Hex. Flange Elastic Nut M6 |
| 34 | 233281466 | Elastic Flange Nut M8 |
| 36 | 233601466 | Elastic Locking Nut M10 |
| 38 | 250000592 | Hex Cap Screw Nylon M10 x 35 |
| 39 | 250000605 | Hex. Screw S.Grip M10 X 55 |
| 40 | 250000619 | Hex Screw M6 X 25 |
| 43 | 250200138 | Washer |
| 44 | 250200140 | Washer |
| 51 | 415129371 | Retaining Ring |
| 57 | 503168800 | Retaining Ring |
| 61 | 503189156 | Pivot Arm Axle |
| 77 | 503190434 | Labyrinth Seal |
| 81 | 503190643 | Axle Bar (Long) |
| 84 | 861805547 | Spring Support Kit This part replaces 503190754. |
| 91 | 861805547 | Spring Support Kit This part replaces 503191183. |
| 95 | 503191215 | Upper Shaft |
| 97 | 503191259 | Center Bushing |
| 98 | 503191262 | Bushing |
| 130 | 503190396 | Ball Bearing |
| 132 | 503191755 | Black, Wheel Ass'y 152 mm |
| 140 | 503191820 | Wheel Cup M6 |
| 158 | 503192299 | Runner Protector |
| 160 | 503192440 | Bolt M8 X 248mm |
| 165 | 503192494 | Washer |
| 166 | 503192496 | Washer |
| 167 | 503196509 | Axle Shock Absorber This part replaces 503192606. |
| 171 | 503192771 | Black, Wheel Cap |
| 175 | 503192583 | Tensioner This part replaces 503192814. |
| 177 | 503192900 | Acceleration Link Rod |
| 190 | 503193894 | Casted Support This part replaces 503193082. |
| 201a | 503193464 | Rocker |
| 206 | 503193435 | Pivot Axle This part replaces 503193142. |
| 207 | 503196972 | Lower Shaft This part replaces 503193144. |
| 214 | 503193227 | Bolt M10 X 251MM |
| 215 | 503193322 | LOWER SHAFT - Call your local BRP dealership |
| 216 | 503193332 | STRAP AXLE - Call your local BRP dealership |
| 230 | 505072663 | Leg Cushion |
