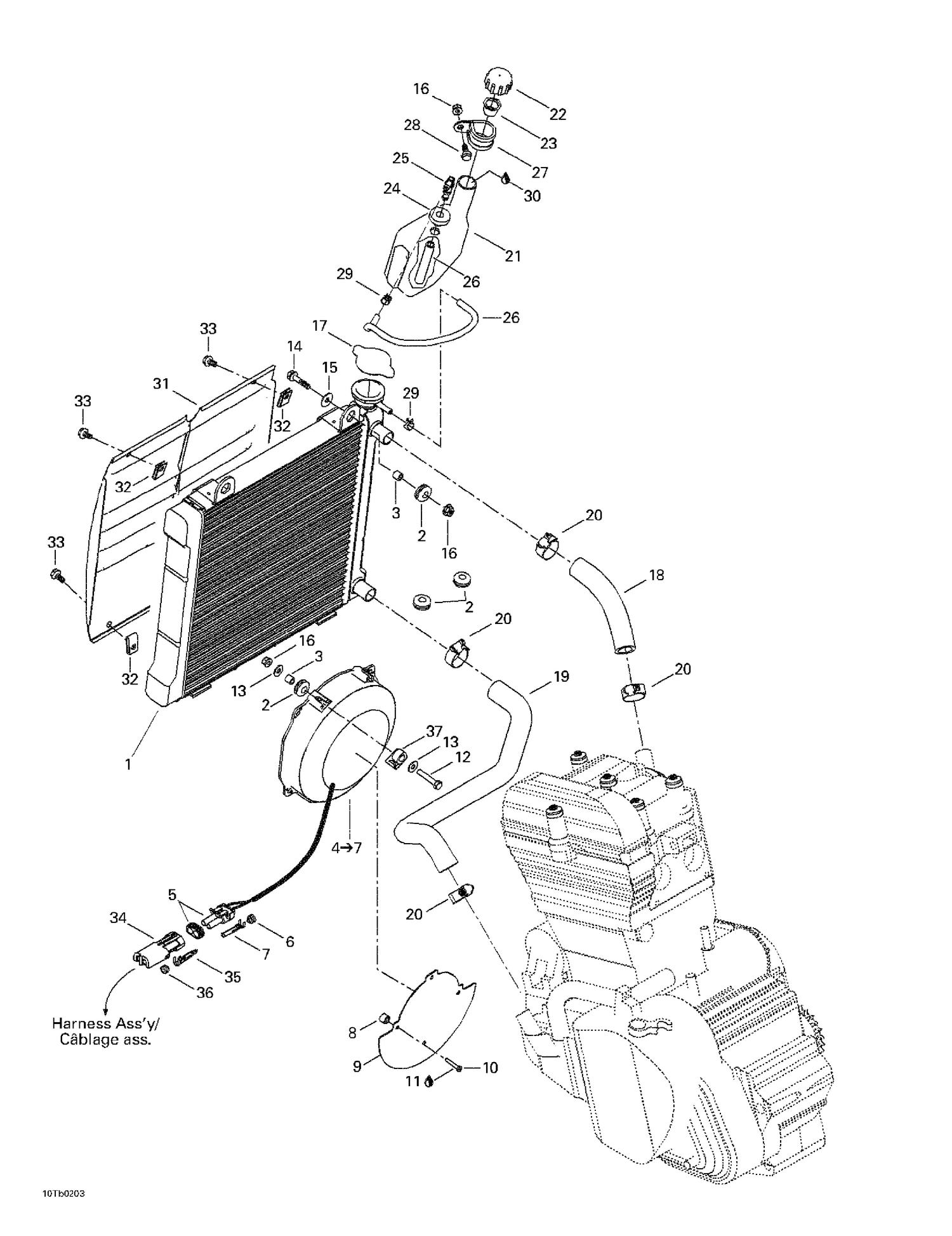

01- Cooling System
Parts (35)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 709200070 | Radiator |
| 2 | 709000582 | Grommet This part replaces 293720053. |
| 3 | 293900105 | Bushing This part replaces 512045400. |
| 5 | 278000220 | Male Connector, 2 Circuits |
| 6 | 710000048 | Wire Seal |
| 7 | 409007300 | Female Terminal |
| 8 | 707000058 | Spacer |
| 9 | 709200041 | Heat Shield |
| 10 | 209642590 | Tapping Screw M4.2 X 25 |
| 11 | 293800005 | Loctite 271, 10 ml |
| 12 | 207063544 | Hex. Flange Screw M6 X 35 |
| 13 | 391302100 | FLAT WASHER - Call your local BRP dealership |
| 14 | 207662544 | Hex. Flange Screw M6 X 25 |
| 15 | 224060201 | Flat Washer |
| 16 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 17 | 709200207 | Radiator Pressure Cap This part replaces 709200033. |
| 18 | 709200021 | Radiator Inlet Hose |
| 19 | 709200022 | Radiator Outlet Hose |
| 20 | 293650051 | Tridon Gear Clamp |
| 21 | 709200099 | COOLANT TANK - Call your local BRP dealership This part replaces 709200058. |
| 22 | 709200009 | TANK CAP - Call your local BRP dealership |
| 23 | 709200205 | PROTECTION CAP - Call your local BRP dealership This part replaces 709200034. |
| 24 | 709200285 | Grommet This part replaces 570135100. |
| 25 | 414580600 | Elbow Male Connector |
| 26 | 219704414 | Was 415110000 Polyurethane Hose 5.2 mm |
| 27 | 709200036 | Hose Anchor |
| 28 | 207661644 | Hex. Flange Screw M6 X 16 |
| 29 | 414554800 | Spring Clamp |
| 30 | 219700362 | ANTIFREEZE BOTTLE12X1 - Call your local BRP dealership This part replaces 413711802. |
| 31 | 709200037 | Radiator Protector |
| 32 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000048. |
| 33 | 207661244 | Hex. Flange Screw M6 X 12 |
| 34 | 278000217 | Female Housing, 2 Circuits |
| 35 | 409004300 | Male Terminal |
| 36 | 278000218 | Wire Seal |
