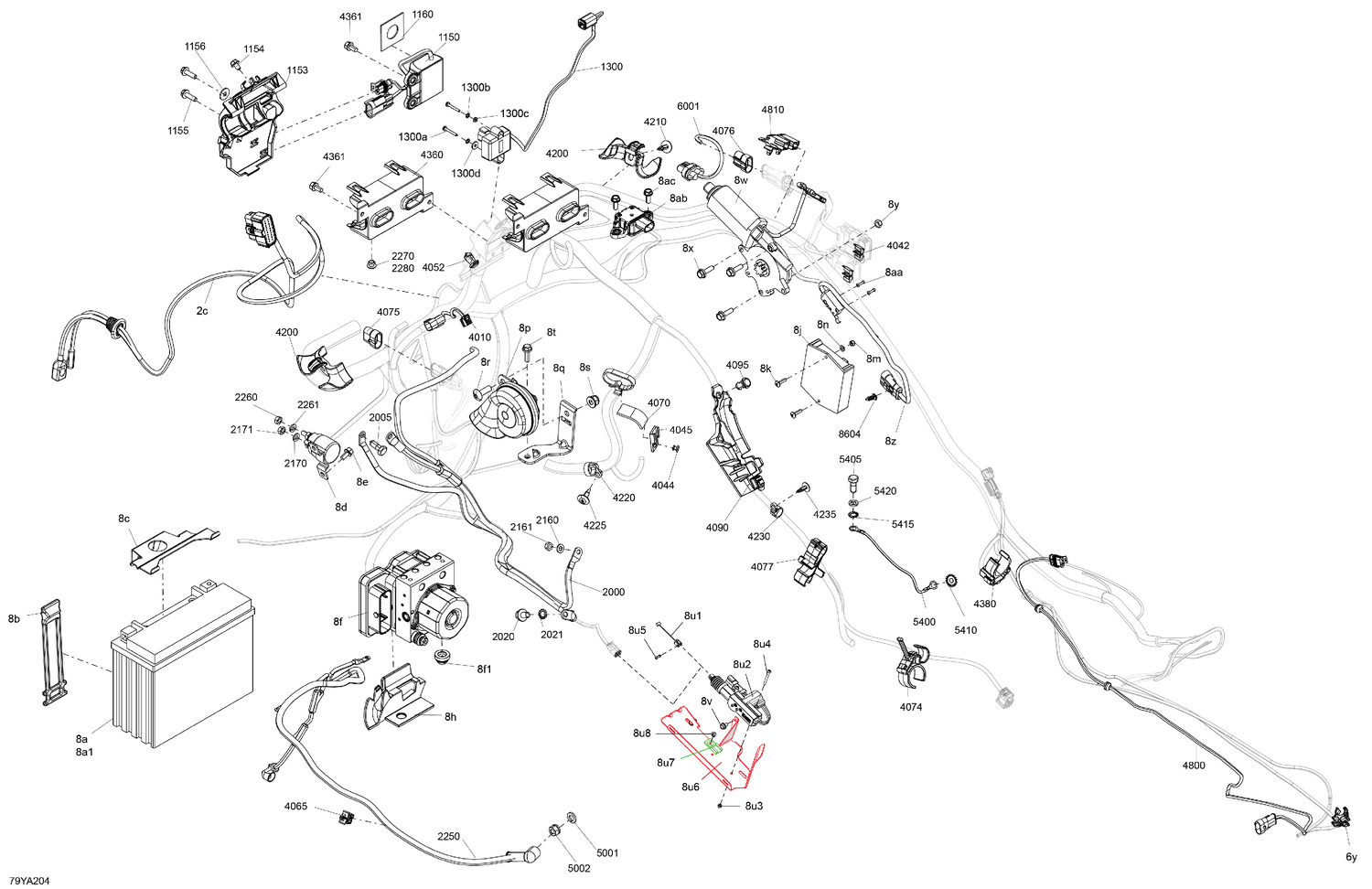

08- Electric - System
Parts (91)
| Ref | Part Number | Description |
|---|---|---|
| 2c | 710006141 | Harness USB |
| 6y | 710004279 | Cable Support |
| 8a | 410922962 | Battery YUASA YTX24-HL |
| 8a1 | 250000282 | Battery Bolt Kit |
| 8aa | 293150150 | Pop Rivet |
| 8ab | 710005658 | Yaw Rate Sensor |
| 8ac | 210261650 | Hex. Flange Screw M6 X 16 |
| 8b | 520000528 | Latch |
| 8c | 710002893 | Battery Holder |
| 8d | 710007777 | Starter Relay |
| 8e | 210261250 | Hex. Flange Screw M6 X 12 |
| 8f | 219800502 | VCM Wet Prog & Grommet Module Kit This part replaces 219800488. |
| 8f1 | 710003279 | Shock Damper |
| 8h | 710003996 | VCM Harness Protector |
| 8j | 710005887 | PBM Module Ass'y |
| 8k | 250000750 | Torx Screw M4 X 16 |
| 8m | 232541484 | Elastic Stop Nut M4 |
| 8n | 234041480 | Flat Washer 4 mm |
| 8p | 710004940 | Horn |
| 8q | 710005769 | Horn Support |
| 8r | 250000874 | Torx Truss M8 X 25 |
| 8s | 233281414 | Hex. Flange Elastic Nut M8 |
| 8t | 207562034 | Hex. Flange Screw M6 X 20, Scotch Grip |
| 8u1 | 710002889 | Reverse Cable |
| 8u2 | 710011269 | Actuator |
| 8u3 | 232541414 | Elastic Stop Nut M4 |
| 8u4 | 205444056 | Socket Head Screw M4 X 40 |
| 8u5 | 390403000 | Pop Rivet 5/32 |
| 8u6 | 710005642 | Reverse Actuator Support |
| 8u7 | 270000141 | Clip |
| 8u8 | 390402400 | Pop Rivet 3/16" |
| 8v | 210261250 | Hex. Flange Screw M6 X 12 |
| 8w | 710007256 | Actuator Motor |
| 8x | 207662054 | Hex. Flange Screw M6 X 20 |
| 8y | 232561434 | Elastic Stop Nut M6 |
| 8z | 710001379 | Brake Pressure Switch Ass'y |
| 1150 | 710004916 | Dess Module |
| 1153 | 710004308 | Wire Support |
| 1154 | 210261050 | Hex. Forming Screw M6 X 10 |
| 1155 | 210262050 | Hexagonal Head Screw |
| 1156 | 234062410 | Flat Washer 6 mm |
| 1160 | 293830091 | Rubber Bumper |
| 1300a | 250000955 | Hex. Screw Forming M4 X 30 |
| 1300b | 211100002 | Push Nut |
| 1300c | 213200016 | Flat Washer, Emhart |
| 1300d | 234052400 | Flat Washer 5 mm, Stainless |
| 2000 | 710006399 | Starter Cable Ass'y |
| 2005 | 207582044 | Hex. Flange Screw M8 X 20, Scotch Grip |
| 2020 | 207581244 | Hex. Flange Screw M8 X 12, Scotch Grip |
| 2021 | 234481608 | Serrated Lock Washer 8 mm |
| 2160 | 234061600 | Stainless Flat Washer M6 |
| 2161 | 232561434 | Elastic Stop Nut M6 |
| 2170 | 234161601 | Lock Washer Helical M6 |
| 2171 | 232061600 | Hex. Nut M6 |
| 2250 | 710005026 | Pos Cable |
| 2260 | 232061600 | Hex. Nut M6 |
| 2261 | 234161601 | Lock Washer Helical M6 |
| 2270 | 205961060 | Socket Head Screw M6 X 10, Scotch Grip |
| 2280 | 205961060 | Socket Head Screw M6 X 10, Scotch Grip |
| 4010 | 710006986 | Diagnostic Harness |
| 4042 | 710001222 | Lock |
| 4044 | 390402400 | Pop Rivet 3/16" |
| 4045 | 270000141 | Clip |
| 4052 | 293150230 | Tuflok Plastic Rivet |
| 4065 | 293750083 | Cable Support |
| 4070 | 709000401 | Rubber Pad |
| 4074 | 710004613 | Support |
| 4075 | 710004901 | Connector Plug |
| 4076 | 710004901 | Connector Plug |
| 4077 | 710004669 | Wire Support |
| 4090 | 710004794 | Harness Holder |
| 4095 | 293150230 | Tuflok Plastic Rivet |
| 4200 | 710004931 | Harness Holder |
| 4210 | 414745900 | Tuflock Phillips Plastic Screw |
| 4220 | 710004424 | Tie Rap |
| 4225 | 414745900 | Tuflock Phillips Plastic Screw |
| 4230 | 710004424 | Tie Rap |
| 4235 | 414745900 | Tuflock Phillips Plastic Screw |
| 4360 | 710004472 | Fuse Holder Support |
| 4361 | 210261250 | Hex. Flange Screw M6 X 12 |
| 4380 | 710004299 | Cable Support |
| 4800 | 710006428 | Tail Harness |
| 4810 | 710004456 | Connector With Cap |
| 5001 | 234181601 | Lock Washer 8 mm, Stainless |
| 5002 | 232081414 | Hex. Nut M8 |
| 5400 | 710006436 | Fuel Tank Cable |
| 5405 | 207382060 | Hex. Screw M8 X 20, Scotch Grip |
| 5410 | 250200041 | Lock Washer Serrated M6 |
| 5415 | 234481608 | Serrated Lock Washer 8 mm |
| 5420 | 250200111 | Washer |
| 6001 | 710007190 | Wiring Harness Adaptor |
