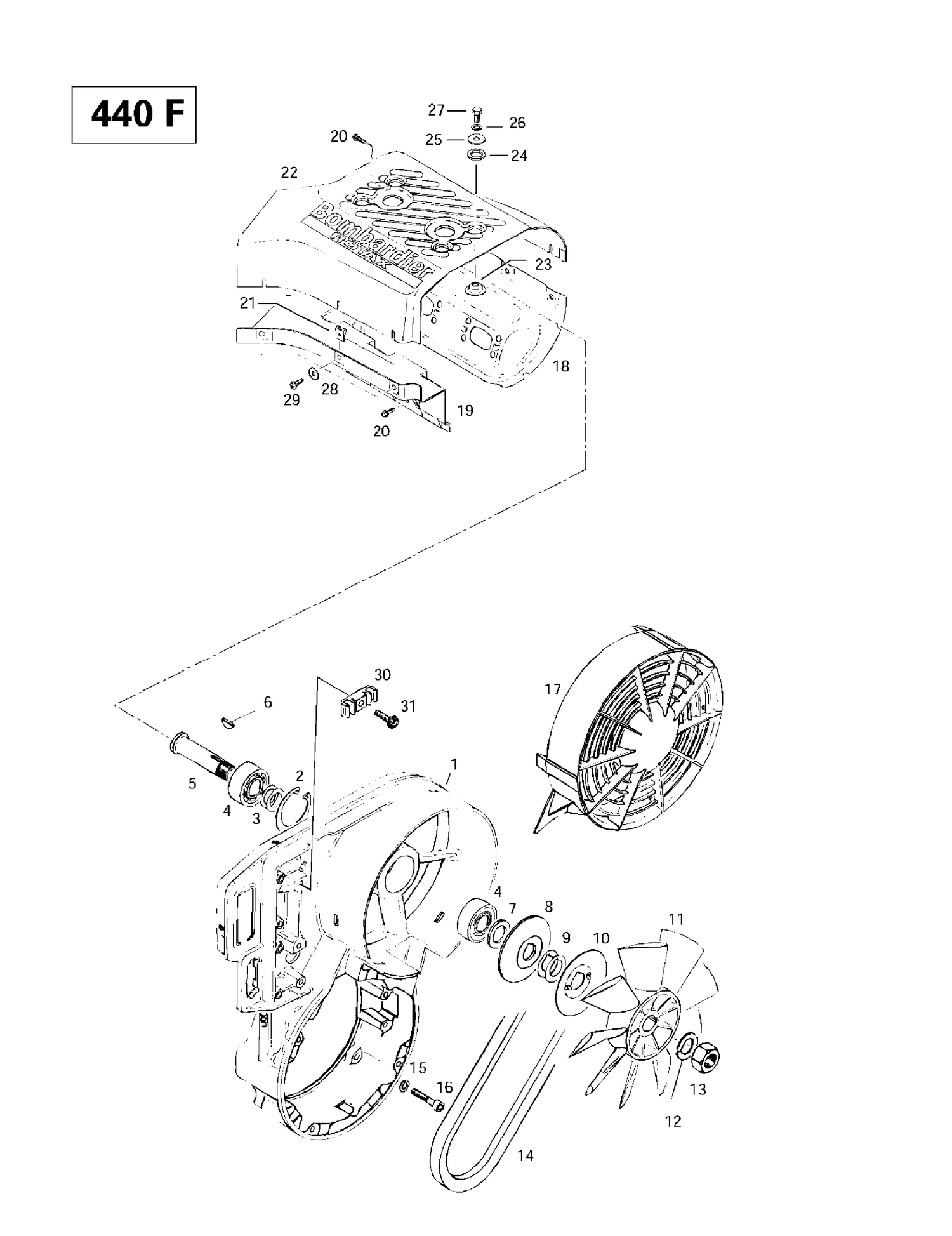

| Ref | Part Number | Description |
|---|
| 1 |
420912202 |
Fan Housing |
| 2 |
420945880 |
Lock Ring |
| 3 |
420244585 |
Shim |
| 4 |
420832161 |
Ball Bearing This part replaces 405406100. |
| 5 |
420937941 |
Fan Axle This part replaces 420937940. |
| 6 |
420246015 |
Woodruff Key |
| 7 |
420827650 |
Spacer Bushing |
| 8 |
420980496 |
Flange This part replaces 420980495. |
| 9 |
420827080 |
Shim 0.5 mm |
| 10 |
420980523 |
Protection Washer This part replaces 420980522. |
| 11 |
420866292 |
FAN - Call your local BRP dealership |
| 12 |
420945756 |
Lock Washer |
| 13 |
420942289 |
Nut M16 This part replaces 420942285. |
| 14 |
414630800 |
V-Belt |
| 15 |
420945751 |
WASHER-LOCK DIN.128 - Call your local BRP dealership |
| 16 |
205063044 |
Socket Head Screw M6 X 30 This part replaces 222963065. |
| 17 |
420975695 |
FAN COVER - Call your local BRP dealership |
| 18 |
420810762 |
Cylinder Cowl (Exhaust Side) |
| 19 |
420810790 |
Cylinder Cowl (Carburator Side) |
| 20 |
420240580 |
TAPTITE SCREW M6 X 16 - Call your local BRP dealership |
| 21 |
420842390 |
Spring Nut |
| 22 |
420810776 |
CYLINDER COWL - Call your local BRP dealership |
| 23 |
420827817 |
Cup Washer |
| 24 |
420960865 |
Rubber Washer |
| 25 |
420227936 |
Washer This part replaces 420227935. |
| 26 |
420945832 |
Washer-Lock Din.128 This part replaces 420945752. |
| 27 |
207181644 |
Hex. Screw M8 x 16 This part replaces 222081665. |
| 28 |
420926180 |
FLAT WASHER - Call your local BRP dealership |
| 29 |
417300006 |
Tapping Screw M4.8 X 16 This part replaces 420841495. |
| 30 |
420860940 |
CLAMP - Call your local BRP dealership |
