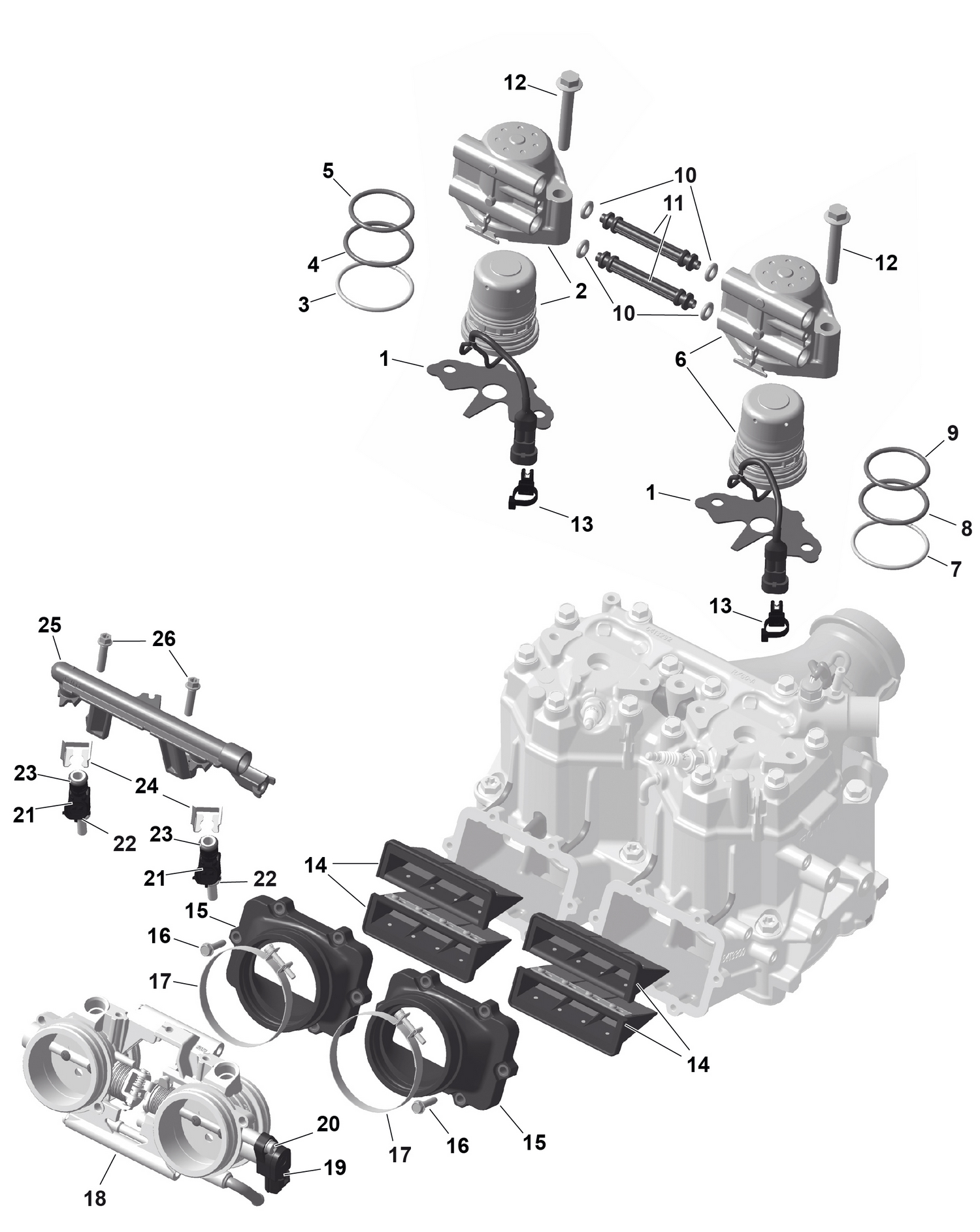

01- ROTAX - Electronic Fuel Injection
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 420874876 | Fuel Injector PTO |
| 3 | 415129497 | Crush Ring |
| 4 | 415129498 | O-Ring |
| 5 | 415129499 | O-Ring |
| 7 | 415129497 | Crush Ring |
| 8 | 415129498 | O-Ring |
| 9 | 415129499 | O-Ring |
| 11 | 420874190 | Tube |
| 12 | 420840097 | Hex Screw M9 X 60 |
| 13 | 420951652 | Tie Rap 200 X 4.6 |
| 14 | 420924798 | Reed Valve Ass'y |
| 15 | 420867390 | Intake Socket |
| 16 | 420841556 | Tapping Screw M5 X 20 |
| 17 | 420251208 | Clamp |
| 20 | XXX | Not Available As Spare Parts |
| 24 | 420853031 | Clip |
| 25 | 420874158 | Fuel Rail |
