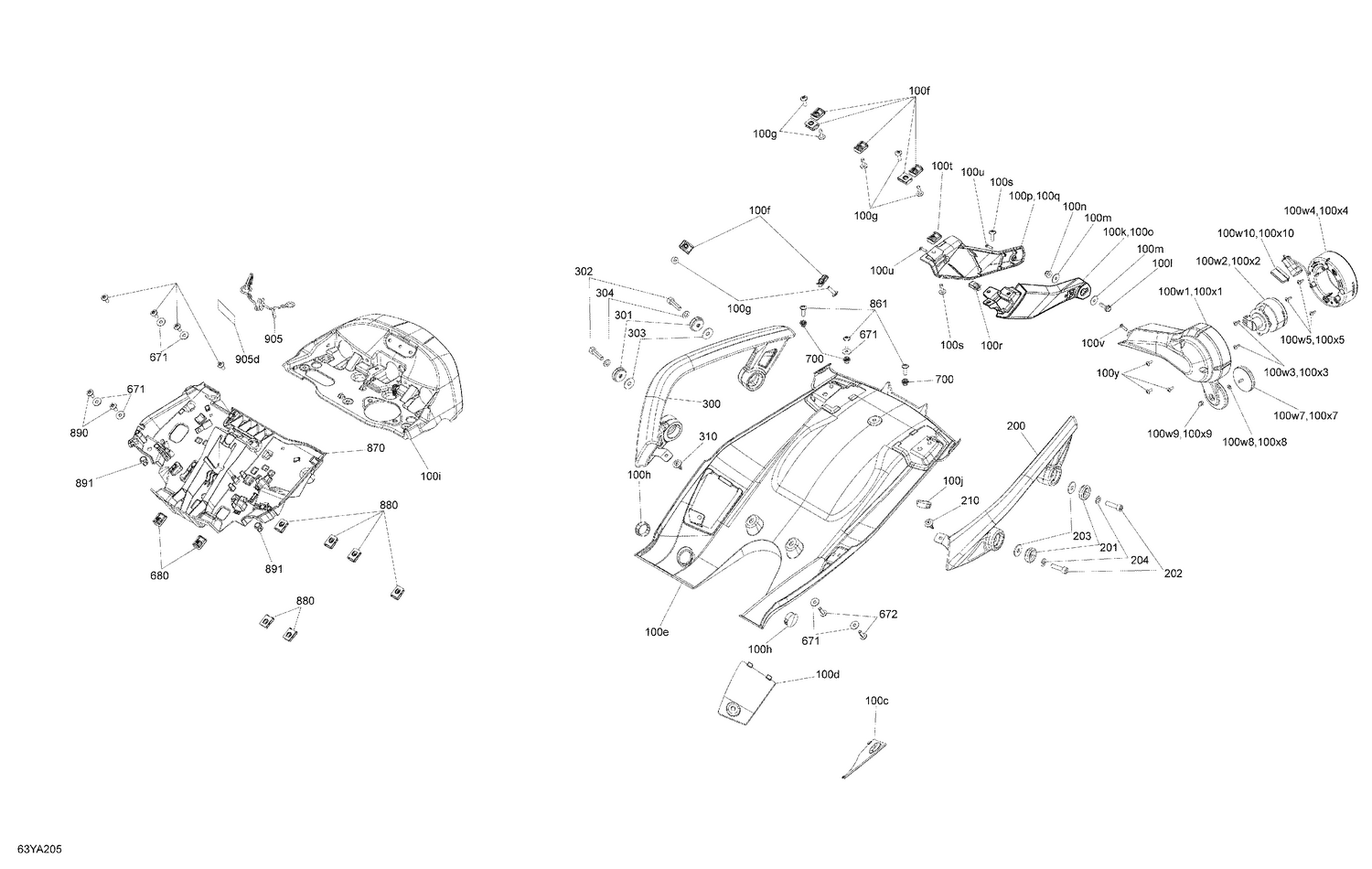

07- Body - Cargo - Japan
Parts (60)
| Ref | Part Number | Description |
|---|---|---|
| 100c | 708301513 | LH Front Cap |
| 100d | 708301514 | RH Front Cap |
| 100e | 708001415 | Under Tail Cover |
| 100f | 250100208 | Panel Nut M6 X 1.0 |
| 100g | 250000446 | Torx Screw M6 X 20, Scotch Grip |
| 100h | 414916600 | Black, Nylon Cap |
| 100i | 708002814 | Taillight Support |
| 100j | 414916600 | Black, Nylon Cap |
| 100k | 708002222 | LH Flasher Support |
| 100l | 207662044 | Hex. Flange Screw M6 X 20 |
| 100m | 224060201 | Flat Washer |
| 100n | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 100o | 708002223 | RH Flasher Support |
| 100p | 708001624 | LH Cap Support |
| 100q | 708001625 | RH Cap Support |
| 100r | 250100198 | Panel Nut M6 X 1.0 |
| 100s | 250000446 | Torx Screw M6 X 20, Scotch Grip |
| 100t | 250100208 | Panel Nut M6 X 1.0 |
| 100u | 250000759 | Torx Truss Pt K40 X 16 |
| 100v | 250000287 | Flange Torx Screw K40 X 16 |
| 100w1 | 708002232 | LH Housing Ass'y |
| 100w10 | 219704371 | Neoprene Seal 3000 mm Long |
| 100w2 | 710004057 | Rear Flasher |
| 100w3 | 250001131 | Torx Truss PT K40 x 12 |
| 100w4 | 710004056 | Rear Light |
| 100w5 | 250001131 | Torx Truss PT K40 x 12 |
| 100w7 | 705011221 | Red Reflector |
| 100w8 | 234051670 | Flat Washer M5 |
| 100w9 | 250100152 | Cap Nut M5 |
| 100x1 | 708002233 | RH Housing Ass'y |
| 100x10 | 219704371 | Neoprene Seal 3000 mm Long |
| 100x2 | 710004057 | Rear Flasher |
| 100x3 | 250001131 | Torx Truss PT K40 x 12 |
| 100x4 | 710004056 | Rear Light |
| 100x5 | 250001131 | Torx Truss PT K40 x 12 |
| 100x7 | 705011221 | Red Reflector |
| 100x8 | 234051670 | Flat Washer M5 |
| 100x9 | 250100152 | Cap Nut M5 |
| 100y | 250001131 | Torx Truss PT K40 x 12 |
| 200 | 708003456 | LH Rear Holding Handle This part replaces 708001413. |
| 201 | 708302461 | Bushing |
| 202 | 250000823 | Socket Head Screw M8 X 30, Scotch Grip |
| 203 | 234082410 | Flat Washer 8 mm |
| 204 | 234081670 | Stainless Steel Flat Washer 8 mm |
| 210 | 414745900 | Tuflock Phillips Plastic Screw |
| 300 | 708003457 | RH Rear Holding Handle This part replaces 708001414. |
| 301 | 708302461 | Bushing |
| 302 | 250000823 | Socket Head Screw M8 X 30, Scotch Grip |
| 303 | 234082410 | Flat Washer 8 mm |
| 304 | 234081670 | Stainless Steel Flat Washer 8 mm |
| 310 | 414745900 | Tuflock Phillips Plastic Screw |
| 671 | 234062670 | Stainless Steel Flat Washer |
| 672 | 250000446 | Torx Screw M6 X 20, Scotch Grip |
| 680 | 250100208 | Panel Nut M6 X 1.0 |
| 700 | 250100199 | Insert Half Hex Body M6 x 1.0 |
| 861 | 250000722 | Torx Screw M6 X 20 |
| 870 | 708301698 | Cargo Rear Support |
| 880 | 250100208 | Panel Nut M6 X 1.0 |
| 890 | 250000881 | Torx Truss M8 X 16 |
| 891 | 293150230 | Tuflok Plastic Rivet |
