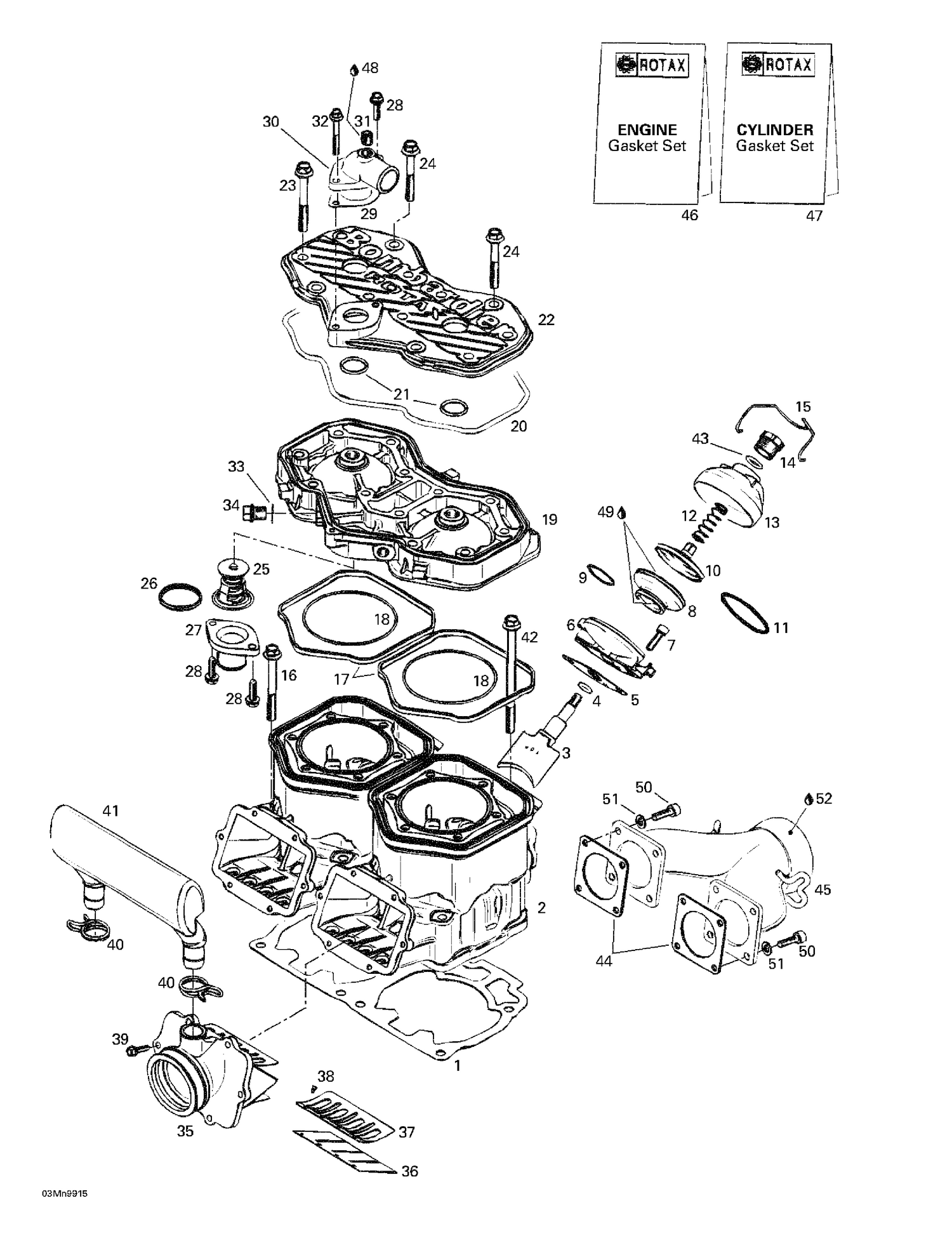

01- Cylinder, Exhaust Manifold

01- Cylinder, Exhaust Manifold

Parts (53)

RefPart NumberDescription
1 420931832 DOUBLE GASKET 0.6 MM - Call your local BRP dealership
2 420923690 Nicasil Cylinder
3 420854330 EXHAUST VALVE - Call your local BRP dealership
4 420430110 O-Ring
5 420250239 Gasket
6 420854265 Valve Housing
7 205062044 Socket Head Screw M6 X 20 This part replaces 222962065.
8 420260723 Exhaust Bellows
9 420838255 Hose Spring This part replaces 420838253.
10 420854449 Exhaust Valve This part replaces 420854447.
11 420939281 Hose Spring This part replaces 290239048.
12 420239947 Spring
13 420911552 Valve Cover This part replaces 420911551.
14 420241221 Adjuster Screw This part replaces 420241220.
15 420838083 SPRING CLIP - Call your local BRP dealership This part replaces 420838082.
16 420841316 Hex. Collar Screw M8 x 75
17 420931590 Rubber Ring
18 420931840 O-RING - Call your local BRP dealership
19 420923455 Cylinder Head (Silver)
20 420950320 O-Ring
21 420430782 O-Ring
22 420923465 CYLINDER HEAD COVER - Call your local BRP dealership This part replaces 420923460.
23 420841307 Hex. Collar Screw M8 X 65 This part replaces 420841306.
24 420941627 Hex. Screw M8 X 56.5 This part replaces 420941621.
25 420922519 Thermostat This part replaces 414834100.
26 420931270 SEALING RING - Call your local BRP dealership
27 420922025 BENT OUTLET SOCKET - Call your local BRP dealership
28 420941251 SCREW-TAPPING - Call your local BRP dealership This part replaces 420941250.
29 420850339 Gasket This part replaces 420850338.
30 420922062 BENT OUTLET SOCKET - Call your local BRP dealership
31 420240480 PLUG SCREW - Call your local BRP dealership
32 420941451 HEX. COLLAR SCREW M6 X 40 - Call your local BRP dealership
33 420250016 Aluminum Sealing Ring This part replaces 420250015.
34 420841924 Plug screw This part replaces 420841921.
36 420924680 Reed Pedal
37 420924539 Reed Pedal Stop
38 420941215 Phillips Screw M3 X 5
39 420941928 Taptite Screw M5 X 16 This part replaces 420941925.
40 420851440 CLAMP - Call your local BRP dealership
41 420867815 Intake Resonator
42 420941651 HEX. SCREW M8 X 119 - Call your local BRP dealership
43 420430220 O-Ring
44 420850552 Gasket
45 420973590 Exhaust Manifold
46 420888600 Engine Gasket Set
47 420888605 Cylinder Gasket Set
48 293800060 Loctite 243, 10 ml This part replaces 293800015.
49 413707000 Dow Corning 111, 150 g
50 205062544 Socket Head Screw M6 X 25 This part replaces 222962565.
51 234161471 Lock Washer M6, Black This part replaces 224761110.
420931830 DOUBLE GASKET 0.3 MM - Call your local BRP dealership 420931830
420931830 Joint Double De 0.3 mm - Appelez votre concessionnaire BRP local 420931830
420931831 Double Gasket 0.4 mm 420931831
