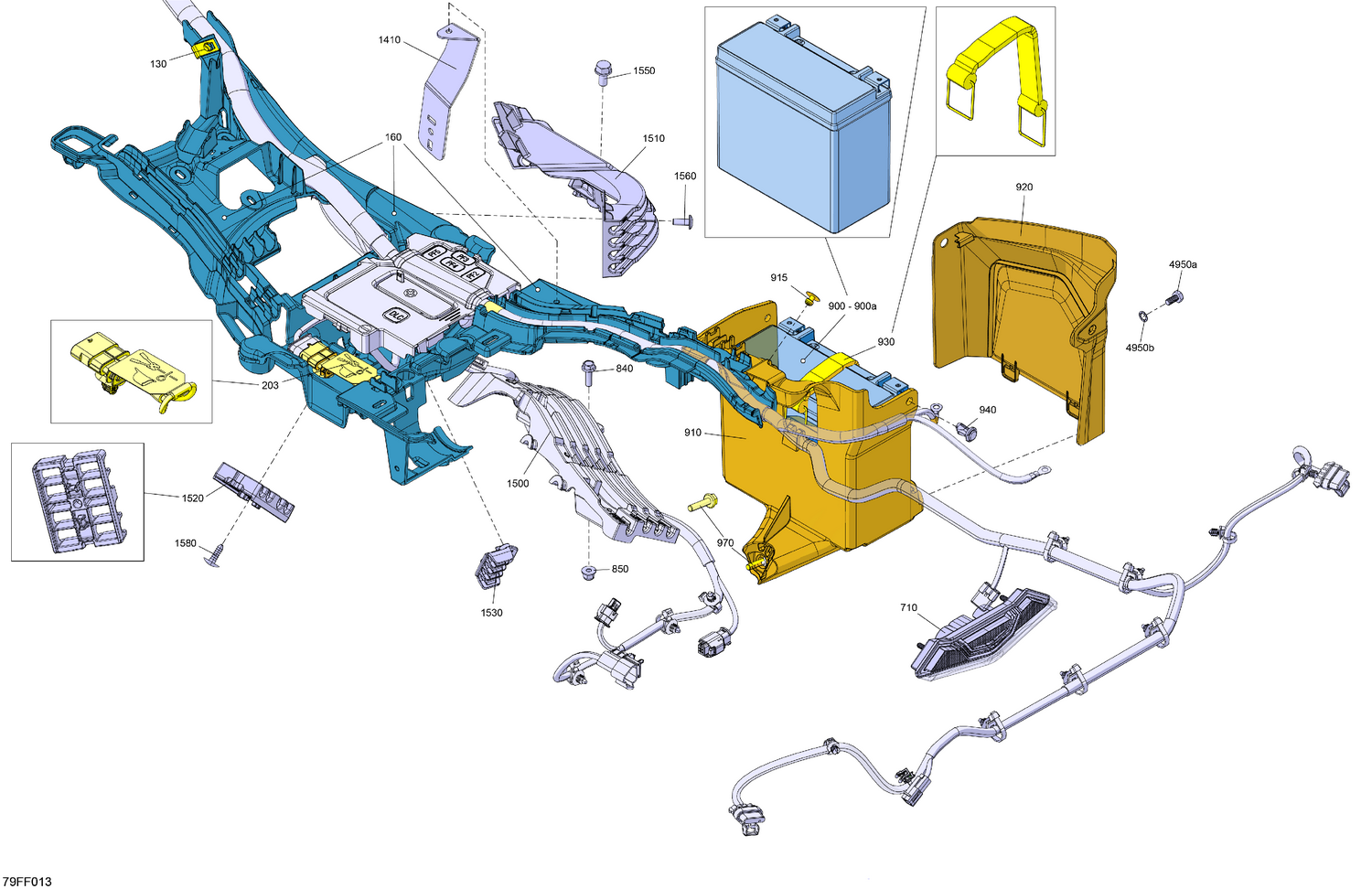

08- Electric - Rear Section
Parts (22)
| Ref | Part Number | Description |
|---|---|---|
| 130 | 250100198 | Panel Nut M6 X 1.0 |
| 160 | 710011919 | Starter Relay Support |
| 203 | 710010030 | Emergency Response Wiring Harness (FRCL) |
| 710 | 710006633 | Tail Light |
| 840 | 207662046 | Hex. Flange Screw M6 X 20 |
| 850 | 233261466 | Hex. Flange Elastic Nut M6 |
| 900a | 715500541 | Battery Bolt Kit |
| 910 | 710008195 | Battery Support |
| 915 | 293150292 | Black, Pop Rivet 3/16 X ,550 |
| 920 | 710011427 | Battery Cover |
| 930 | 293850087 | Fuel Tank Strap |
| 940 | 293150230 | Tuflok Plastic Rivet |
| 970 | 207562544 | Hex. Flange Screw M6 X 25 |
| 1410 | 710010222 | Cable Support |
| 1500 | 710010139 | Electric Motor Cable Support |
| 1510 | 710010261 | Inverter Cable Support |
| 1520 | 710010037 | High Voltage Cable Support |
| 1530 | 710011209 | High Voltage Cable Support |
| 1550 | 210281640 | Hex Forming Screw Hd.Fl. Din. M8 X 16 |
| 1560 | 250000717 | Torx Head Screw M6 X 16 |
| 1580 | 293730011 | Black, Dart |
| 4950a | 710009084 | Screw |
