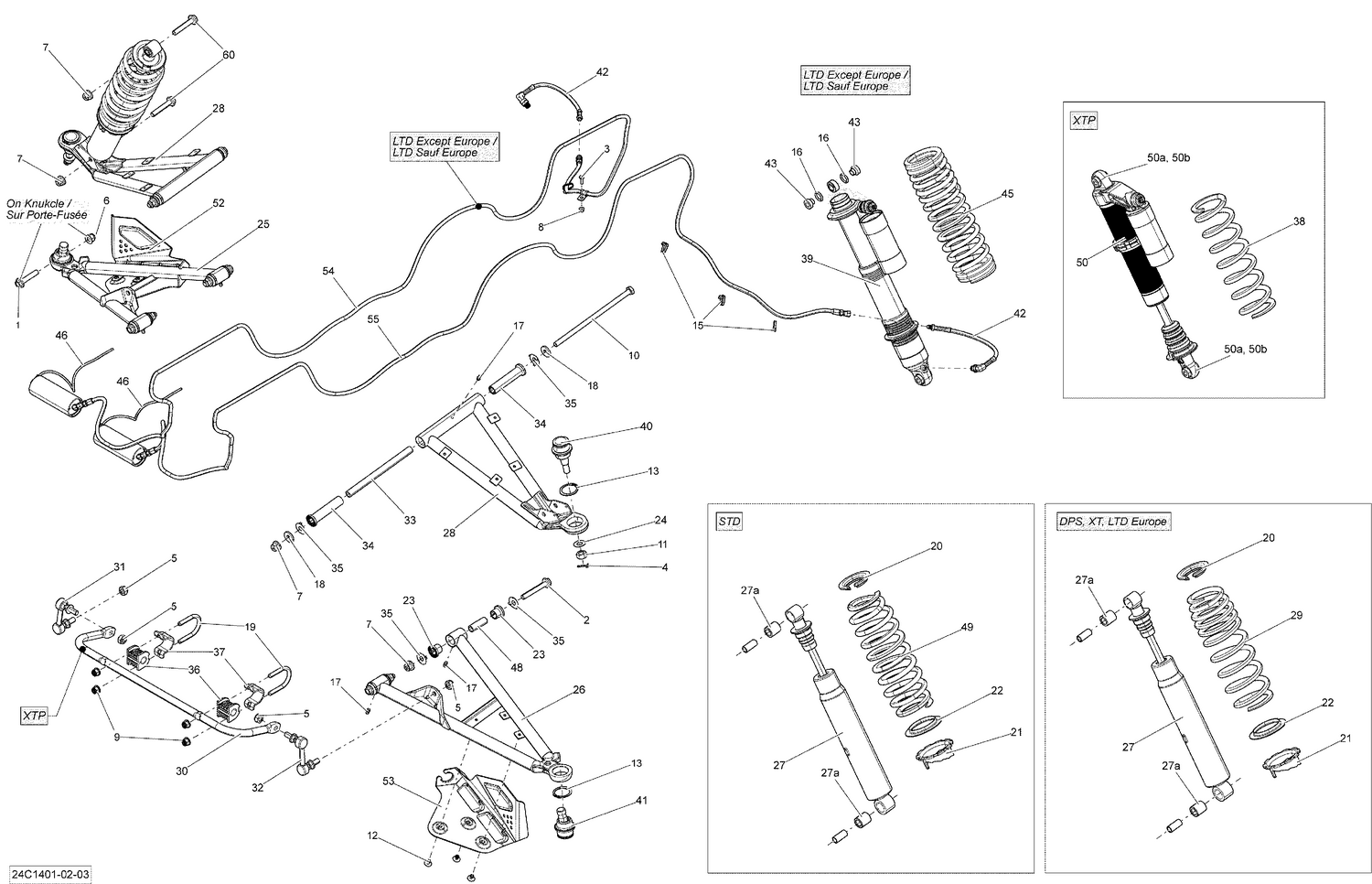

07- Front Suspension
Parts (50)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 207605044 | Hex. Flange Screw M10 X 50 |
| 2 | 207607046 | Hex. Flange Screw M10 X 70 |
| 3 | XXX | Not Available As Spare Parts |
| 4 | 211400017 | Cotter Pin |
| 5 | 232501416 | Elastic Flange Nut M10 |
| 6 | 233201414 | Hex. Flange Elastic Nut M10 |
| 7 | 233201436 | Hex. Flange Elastic Nut M10 |
| 8 | XXX | Not Available As Spare Parts |
| 9 | 233281414 | Hex. Flange Elastic Nut M8 |
| 10 | 250001032 | Hex. Cap Screw M10 X 225 This part replaces 250000510. |
| 11 | 250100099 | Nut M12 |
| 12 | 293150104 | Pop Rivet 3/16" |
| 13 | 293370035 | Circlip |
| 15 | XXX | Not Available As Spare Parts |
| 16 | XXX | Not Available As Spare Parts |
| 17 | 408200700 | Grease Fitting |
| 18 | 503190439 | Washer |
| 19 | 506060600 | U-clamp |
| 20 | 706000567 | Spring Stopper |
| 21 | 706000910 | Adjustment Ring |
| 22 | 706000911 | Protector Ring |
| 24 | 706200281 | Hardened Washer This part replaces 250200086. |
| 25 | 706200742 | LH Lower Suspension Arm |
| 26 | 706200744 | RH Lower Suspension Arm |
| 27a | 715900122 | Bushing |
| 28 | 706200796 | Suspension Upper Arm |
| 30 | 706202560 | Sway Bar Ass'y This part replaces 706200865. |
| 31 | 706202536 | LH Sway Bar Link This part replaces 706200894. |
| 32 | 706202537 | RH Sway Bar Link This part replaces 706201032. |
| 33 | 706202445 | Bushing This part replaces 706201061. |
| 34 | 706201062 | Cushion |
| 35 | 706201063 | Wear Plate |
| 36 | 706201086 | Stabilizer Bushing |
| 37 | 706201087 | Clamp |
| 38 | 706201124 | YELLOW FRONT SPRING - Call your local BRP dealership |
| 39 | XXX | Not Available As Spare Parts |
| 40 | 706202044 | Ball Joint |
| 41 | 706202045 | Ball Joint |
| 42 | XXX | Not Available As Spare Parts |
| 43 | XXX | Not Available As Spare Parts |
| 45 | XXX | Not Available As Spare Parts |
| 46 | XXX | Not Available As Spare Parts |
| 49 | 706201631 | RED FRONT SPRING - Call your local BRP dealership |
| 50 | 706201658 | FRONT SHOCK ASS'Y - Call your local BRP dealership |
| 50a | 715900209 | O-Ring Bushing |
| 50b | 715900210 | Interior Bushing |
| 52 | 706201669 | LH Protector |
| 53 | 706201670 | RH Protector |
| 54 | XXX | Not Available As Spare Parts |
| 55 | XXX | Not Available As Spare Parts |
