Home / BRP / STERN DRIVE / 1989 / 4.30 / 262AMLMED 1989 / EXHAUST & COOLING

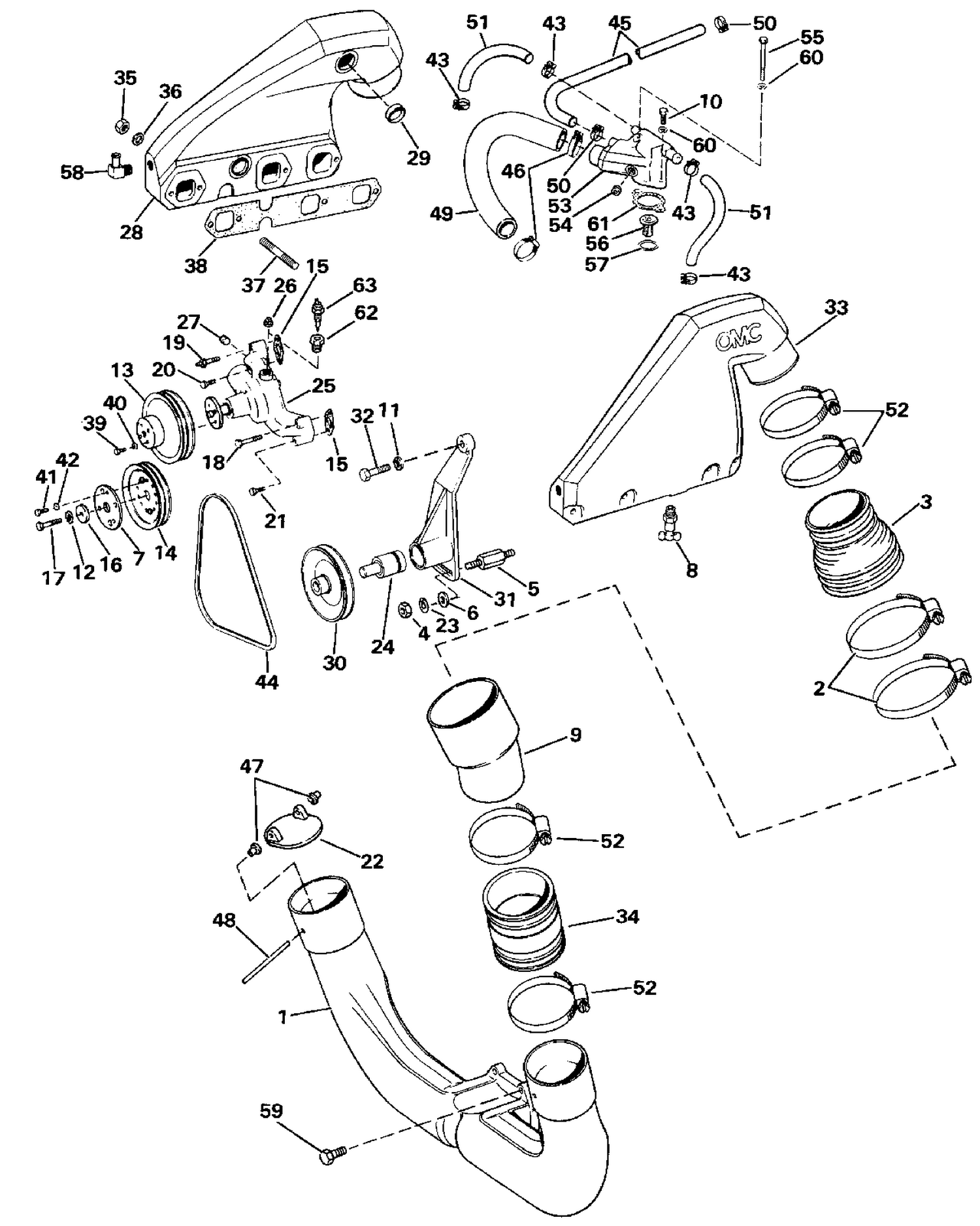

EXHAUST & COOLING

EXHAUST & COOLING

Parts (56)

RefPart NumberDescription
1 0985715 EXHAUST PIPE
2 0984387 CLAMP
3 0912328 HOSE, Exhaust pipe to manifold
5 3853402 STUD, Bracket to engine This part replaces 0910527.
7 3852505 PULLEY, Crankshaft This part replaces 0911287.
8 0379957 PETCHOCK ASSY, Water drain
9 0912317 EXHAUST PIPE, Upper
10 0306414 SCREW
11 0120177 L'WASHER, Alternator to brkt
12 0303269 L'WASHER, Upper
13 0384104 PULLEY ASSEMBLY
14 3852137 PULLEY, Crankshaft This part replaces 0315781.
15 3852477 GASKET, Pump to block This part replaces 0909835.
16 3852110 WASHER, Harmonic balancer This part replaces 0312787.
17 0314953 BOLT
19 3852507 STUD, Bracket to water pump This part replaces 0910440.
21 0551094 BOLT, Manifold to head
22 0985749 EXHAUST SEAL
24 0982727 BEARING, Idler pulley
25 3853850 WATER PUMP ASSY. This part replaces 0985429.
26 0315713 PIPE PLUG, High rise
27 0314834 PLUG
28 0984222 EXHAUST MANIFOLD, Stbd
29 0315712 CORE PLUG
30 0982709 PULLEY, Idler
31 0910492 BRACKET, Idler pulley
32 0310896 SCREW
33 0984221 EXHAUST MANIFOLD, Port
34 3852742 HOSE, Exhaust pipe This part replaces 0913592.
35 0908700 NUT
36 0309336 L'WASHER, Alternator to bracket
37 0909222 STUD, Exh manifold
38 3853412 GASKET, Manifold to engine This part replaces 0910157.
39 0306861 SCREW
41 0306865 SCREW, Crankshaft pulley
42 0120177 L'WASHER, Alternator to brkt
43 0979803 CLAMP
44 0311606 BELT
44 3852504 BELT, Alternator This part replaces 0910371.
45 0913486 HOSE, Gimbal hsg to therm
45 5000354 Hose & Tag Ay This part replaces 0911945.
47 3853566 BUSHING, Pin This part replaces 0913672.
48 0913663 PIN EXHAUST FLAP
49 0312781 HOSE, Housing to water pump
50 0912627 CLAMP
51 0911636 HOSE, Therm hsg to manifold, port
51 0911637 HOSE, Therm hsg to manifold, stbd
52 3852604 CLAMP, Exhaust This part replaces 0912667.
53 3850360 HOUSING, Thermostat This part replaces 0985880.
54 3850999 PLUG This part replaces 0913564.
55 0311390 BUSHING
56 0383307 TERMOSTAT ASSEMBLY
58 3852538 ELBOW, Exhaust manifold This part replaces 0911730.
60 0120177 L'WASHER, Alternator to brkt
61 0312797 GASKET, Therm. hsg. to adapter
62 0913401 BUSHING, Temperature switch
