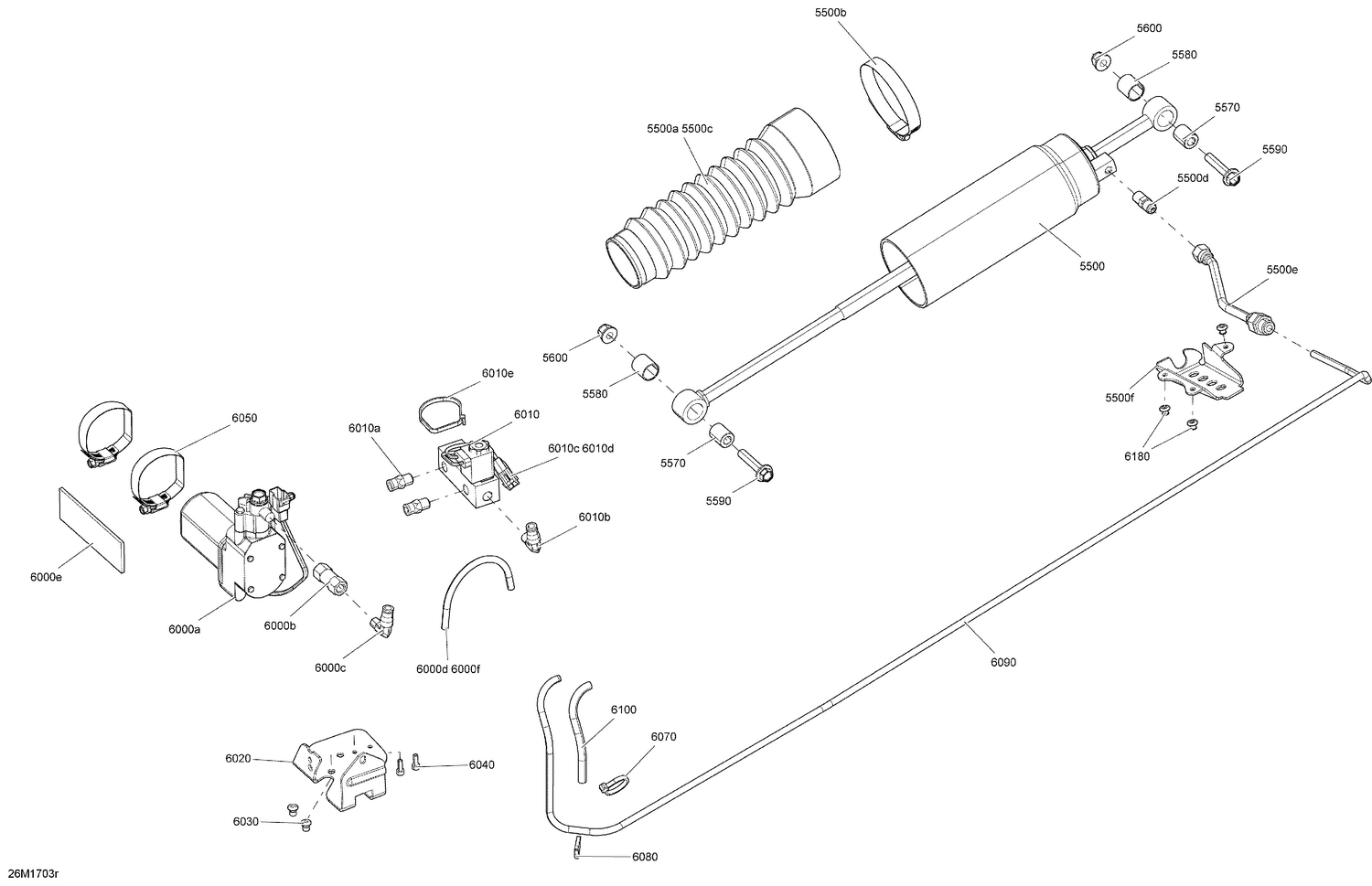

08- Rear Suspension - rMotion with Air Ride - Package SE - Shock
Parts (29)
| Ref | Part Number | Description |
|---|---|---|
| 5500a | 570278300 | Protection Boot |
| 5500b | 293650064 | Tridon Clamp |
| 5500c | 293750008 | Tie Wrap 368 mm |
| 5500d | 503191939 | Male Pneumatic Connector |
| 5500e | 503192652 | Air Hose Ass'y |
| 5500f | 503194290 | BRACKET - Call your local BRP dealership |
| 5570 | 503196509 | Axle Shock Absorber This part replaces 503192606. |
| 5580 | 505072663 | Leg Cushion |
| 5590 | 207684044 | Hex. Flange Screw M8 X 40 |
| 5600 | 233281466 | Elastic Flange Nut M8 |
| 6000a | 706001349 | Compressor |
| 6000b | 706000940 | Check Valve |
| 6000c | 706000872 | Elbow 90° |
| 6000d | 219704415 | Hose 4.32Mm 3000Mm Long |
| 6000e | 503191940 | Rubber Damper |
| 6000f | 219704425 | Tubing 6 Mm 3000Mm Long |
| 6010a | 706000869 | Connector |
| 6010b | 706000872 | Elbow 90° |
| 6010c | 515175232 | Male Terminal |
| 6010d | 515175654 | Male Terminal Housing, 2 Circuits |
| 6010e | 414115200 | Tie-Rap 180 mm |
| 6020 | 503194043 | SUPPORT - Call your local BRP dealership |
| 6030 | 390909200 | Avex Rivet |
| 6040 | 205041044 | Socket Head Screw M4 X 10 |
| 6050 | 293650090 | Norma Gear Clamp |
| 6070 | 414115200 | Tie-Rap 180 mm |
| 6080 | 414115200 | Tie-Rap 180 mm |
| 6090 | 219704415 | Hose 4.32Mm 3000Mm Long |
| 6100 | 219704425 | Tubing 6 Mm 3000Mm Long |
