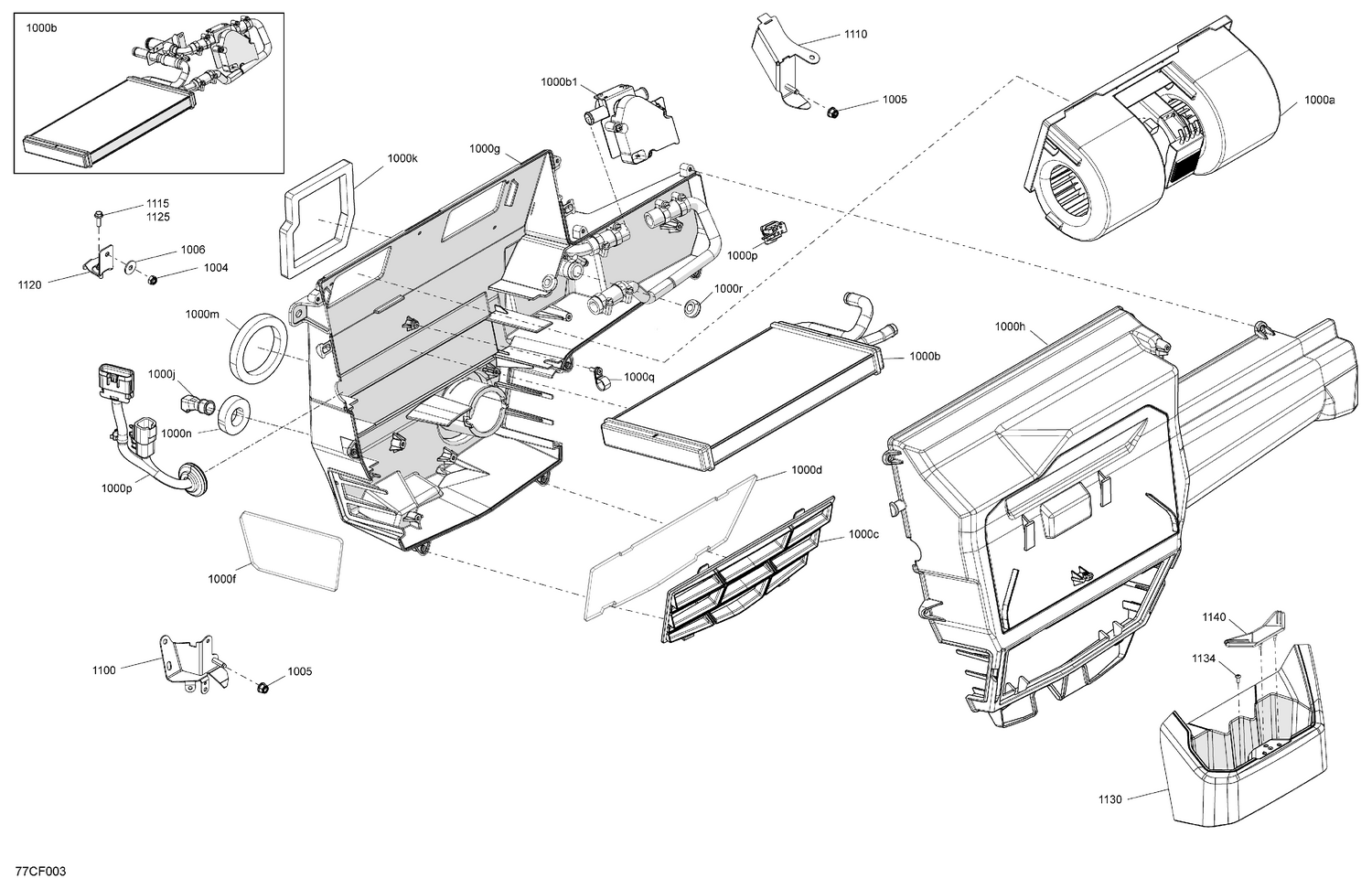

07- Enclosure Cab - Air Conditioning Unit
Parts (24)
| Ref | Part Number | Description |
|---|---|---|
| 1000a | 520001536 | Fan |
| 1000b1 | 705800487 | Valve Ass'y |
| 1000c | 705800453 | Grille Unit |
| 1000d | 705800440 | Air Filter |
| 1000f | 705800430 | Air Filter |
| 1000g | 705800448 | Front Cover |
| 1000h | 705800384 | Rear Cover |
| 1000j | 705800809 | Drain Valve |
| 1000k | 705800494 | Self Adhesive Weather Strip |
| 1000m | 705800495 | Self Adhesive Weather Strip |
| 1000n | 705800496 | Self Adhesive Weather Strip |
| 1000p | 705800451 | Heater Unit Wiring Harness |
| 1000q | 715900670 | Mounting Clip |
| 1000r | 520001676 | Grommet 5/8'' |
| 1004 | 232581414 | Hex. Elastic Stop Nut M8 |
| 1005 | 233281414 | Hex. Flange Elastic Nut M8 |
| 1006 | 234082410 | Flat Washer 8 mm |
| 1100 | 705801110 | LH Upper Console Support |
| 1110 | 705801112 | RH Upper Console Support |
| 1115 | 207662044 | Hex. Flange Screw M6 X 20 |
| 1120 | 705801148 | Lower Console Support |
| 1125 | 207662044 | Hex. Flange Screw M6 X 20 |
| 1130 | 705800452 | Cup Holder |
| 1134 | 250000577 | Torx Truss Screw K40 X 12 |
