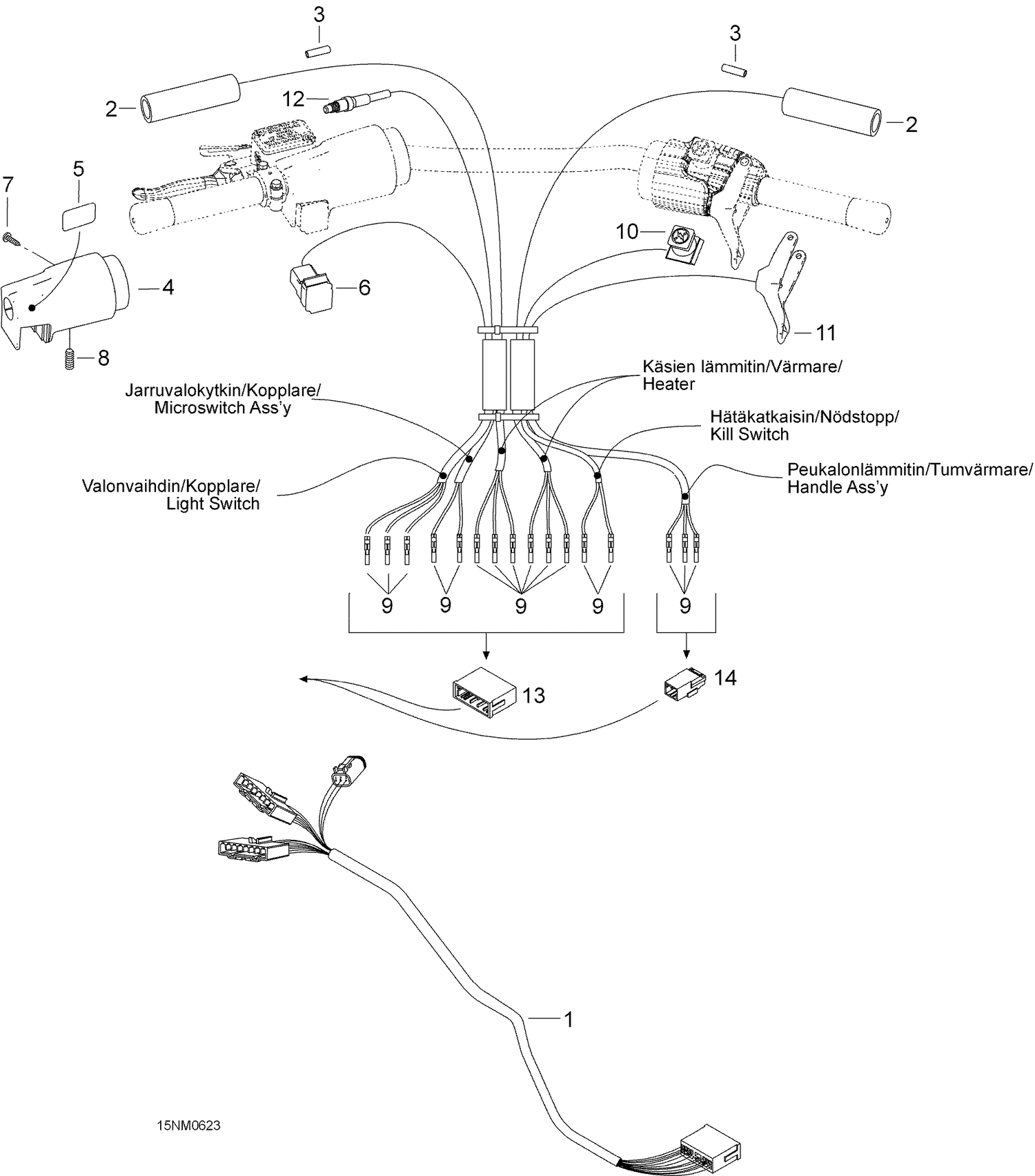

| Ref | Part Number | Description |
|---|
| 1 |
5148348 |
Wiring harness |
| 2 |
515175664 |
Heater |
| 3 |
39023 |
Plastic Tubing d=6, musta - Call your local BRP dealership |
| 4 |
515175696 |
BRAKE HOUSING - Call your local BRP dealership |
| 5 |
415025500 |
Decal |
| 6 |
515175390 |
Switch |
| 7 |
250000022 |
SCREW-THREAD CUT.PH.PAN TYPE25 - Call your local BRP dealership |
| 8 |
414440800 |
Socket Set Screw M8 X 10 |
| 9 |
605642628 |
CONNECTOR - Call your local BRP dealership This part replaces 42603. |
| 10 |
515175410 |
Switch kill |
| 11 |
512059348 |
Throttle handle |
| 12 |
507032366 |
Microswitch ass'y This part replaces 507032334. |
| 13 |
42617 |
Male connector housing (15 circuit) |
