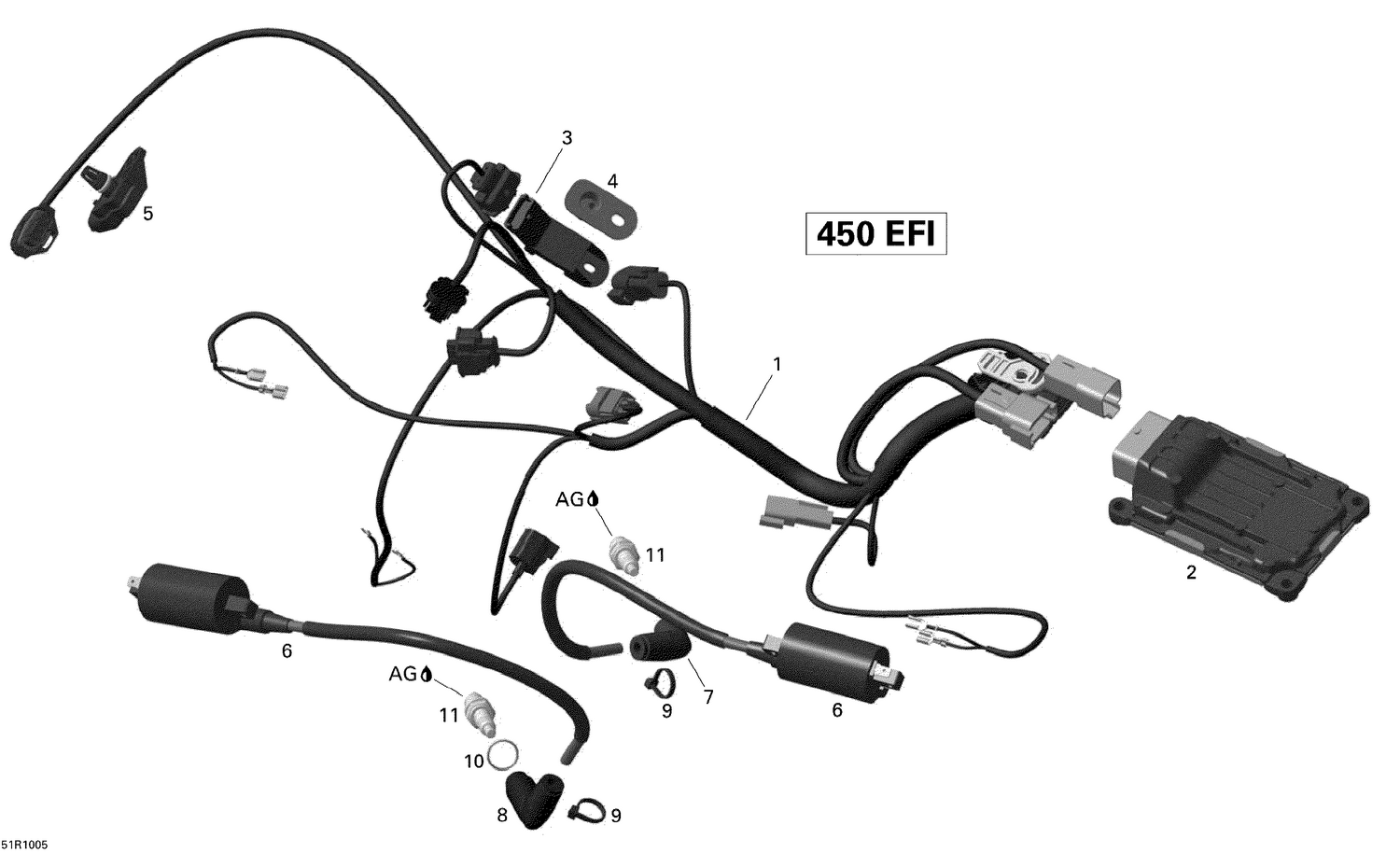

| Ref | Part Number | Description |
|---|
| 1 |
420665591 |
WIRING HARNESS ASS'Y - Call your local BRP dealership This part replaces 420665590. |
| 2 |
420266697 |
Module Ecu *Electronic Box This part replaces 420266694. |
| 3 |
270600040 |
Pressure Sensor This part replaces 420274055. |
| 4 |
420460700 |
ADAPTOR - Call your local BRP dealership |
| 5 |
707000995 |
Pressure And Temperature Sensor This part replaces 707000564. |
| 6 |
420265414 |
Ignition Coil |
| 7 |
420265244 |
Spark Plug Connector, Short |
| 8 |
420265246 |
Spark Plug Connector, Long |
| 9 |
420866710 |
Tie Rap |
| 10 |
420230890 |
O-Ring |
| 11 |
278002297 |
Spark Plug NGK DCPR9E |
