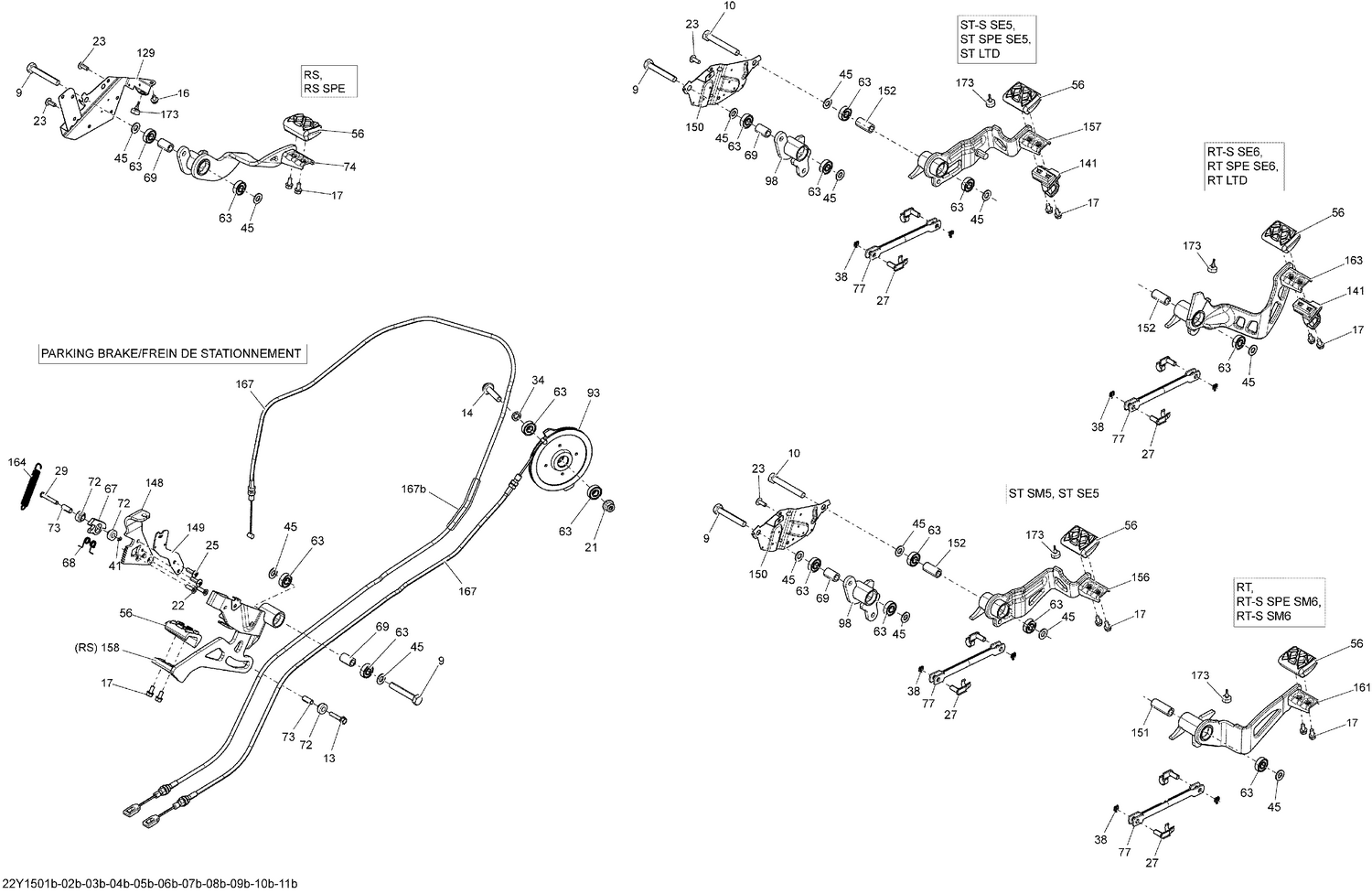

| Ref | Part Number | Description |
|---|
| 9 |
207206534 |
Hex. Screw M10 X 65, Scotch Grip |
| 10 |
XXX |
Not Available As Spare Parts |
| 13 |
207563044 |
Hex. Flange Screw M6 X 30, Scotch Grip |
| 14 |
XXX |
Not Available As Spare Parts |
| 16 |
210261050 |
Hex. Forming Screw M6 X 10 This part replaces 210261080. |
| 17 |
210261250 |
Hex. Flange Screw M6 X 12 This part replaces 210261280. |
| 21 |
XXX |
Not Available As Spare Parts |
| 22 |
250000643 |
TORX SCREW FLAT HEAD T-30 S.GRIP M6X20 - Call your local BRP dealership |
| 23 |
250000717 |
Torx Head Screw M6 X 16 |
| 25 |
250000350 |
Torx Truss Screw M6 X 20 |
| 27 |
250400062 |
Pin |
| 29 |
293370064 |
Pin |
| 34 |
XXX |
Not Available As Spare Parts |
| 38 |
371800700 |
Cotter Pin |
| 41 |
414439000 |
Circlip |
| 45 |
503183800 |
Washer |
| 56 |
705004933 |
Rubber Pad |
| 63 |
705600458 |
Bearing |
| 67 |
705600524 |
KEY - Call your local BRP dealership |
| 68 |
705600525 |
Spring |
| 69 |
705600541 |
Bushing |
| 72 |
705600587 |
Bushing |
| 73 |
705600588 |
Bushing |
| 74 |
705600633 |
BRAKE PEDAL - Call your local BRP dealership |
| 77 |
XXX |
Not Available As Spare Parts |
| 93 |
XXX |
Not Available As Spare Parts |
| 98 |
XXX |
Not Available As Spare Parts |
| 129 |
705601136 |
TAB LOCK - Call your local BRP dealership |
| 141 |
XXX |
Not Available As Spare Parts |
| 148 |
705601269 |
PEDAL PLATE - Call your local BRP dealership |
| 149 |
705601270 |
SWITCH PLATE - Call your local BRP dealership |
| 150 |
705601136 |
TAB LOCK - Call your local BRP dealership |
| 151 |
XXX |
Not Available As Spare Parts |
| 152 |
XXX |
Not Available As Spare Parts |
| 156 |
XXX |
Not Available As Spare Parts |
| 157 |
XXX |
Not Available As Spare Parts |
| 158 |
705601289 |
Parking Pedal |
| 161 |
XXX |
Not Available As Spare Parts |
| 163 |
XXX |
Not Available As Spare Parts |
| 164 |
707000543 |
SPRING - Call your local BRP dealership |
| 167 |
707001802 |
Cable De Frein De Stationnement |
| 167b |
XXX |
Not Available As Spare Parts |
