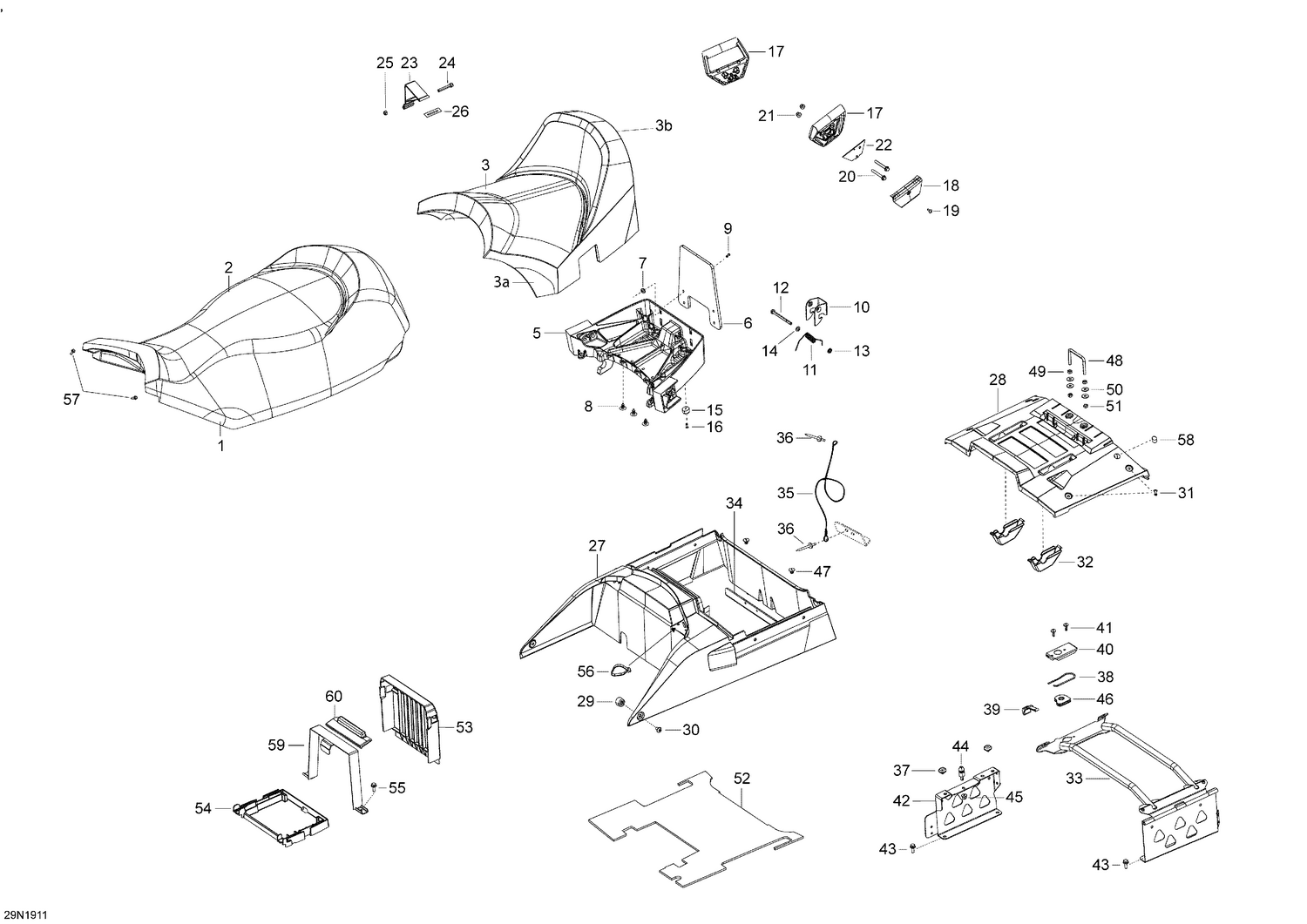

09- Seat
Parts (58)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 510005999 | Front Seat Foam |
| 2 | 510006576 | Front Cover |
| 3a | 510005320 | REAR SEAT COVER XU - Call your local BRP dealership |
| 3b | 510006094 | Rear Seat Foam |
| 5 | 510004816 | Seat Base |
| 6 | 510005330 | Backrest Plate |
| 7 | 234062410 | Flat Washer 6 mm |
| 8 | 414644300 | Black, Dart |
| 9 | 293150067 | Rivet |
| 10 | 708000144 | Latch, Black |
| 11 | 708000369 | Spring |
| 12 | 207068044 | Hex. Screw M6 X 80 |
| 13 | 732610072 | Push Nut |
| 14 | 234061410 | Flat Washer 6 mm |
| 15 | 510006005 | Stopper Rubber |
| 16 | 293150015 | Pop Rivet 1/8” |
| 17 | 510005409 | Handle |
| 18 | 510005444 | Handle Cover |
| 19 | 250000676 | Forming Screw M5 x 16 |
| 20 | 207686544 | Hex. Flange Screw, M8 X 65 |
| 21 | 233281414 | Hex. Flange Elastic Nut M8 |
| 22 | 510005936 | Support Plate |
| 23 | 510005139 | Security Lock |
| 24 | 205064044 | Socket Screw HD.DIN.912 |
| 25 | 232561414 | Elastic Stop Nut M6 |
| 26 | 510005480 | SCREEN PLATE - Call your local BRP dealership |
| 27 | 510006243 | Storage Box |
| 28 | 510006244 | Storage Box Cover |
| 29 | 510005147 | Bushing |
| 30 | 250000675 | Torx Truss Screw M6 x 12 |
| 31 | 293150104 | Pop Rivet 3/16" |
| 32 | 510004999 | Cover |
| 33 | 510005714 | Lock tube |
| 34 | 510005156 | Cable Support Plate |
| 35 | 293750070 | Seat Retainer Cable |
| 36 | 293150163 | Rivet Hucklok |
| 37 | 605452114 | Plug |
| 38 | 269700017 | Latch Spring |
| 39 | 510005072 | Puller |
| 40 | 510005698 | Lock Pin Cover |
| 41 | 250000676 | Forming Screw M5 x 16 |
| 42 | 510005845 | Locking Plate |
| 43 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 44 | 605452035 | LOCK PIN - Call your local BRP dealership |
| 45 | 233261416 | Elastic Flange Nut M6 X 1.0 |
| 46 | 510005044 | Lock Pin Guide |
| 47 | 250000675 | Torx Truss Screw M6 x 12 |
| 48 | 510004876 | FASTENER PIN - Call your local BRP dealership |
| 49 | 250000135 | Hex. Nut M6 |
| 50 | 20117 | Washer |
| 51 | 232561414 | Elastic Stop Nut M6 |
| 52 | 510005043 | Foam |
| 53 | 510005079 | Battery Cover |
| 54 | 515176804 | Battery Support |
| 55 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 56 | 605627000 | Tie-Rap |
| 57 | 250000676 | Forming Screw M5 x 16 |
| 58 | 572103300 | Cap |
