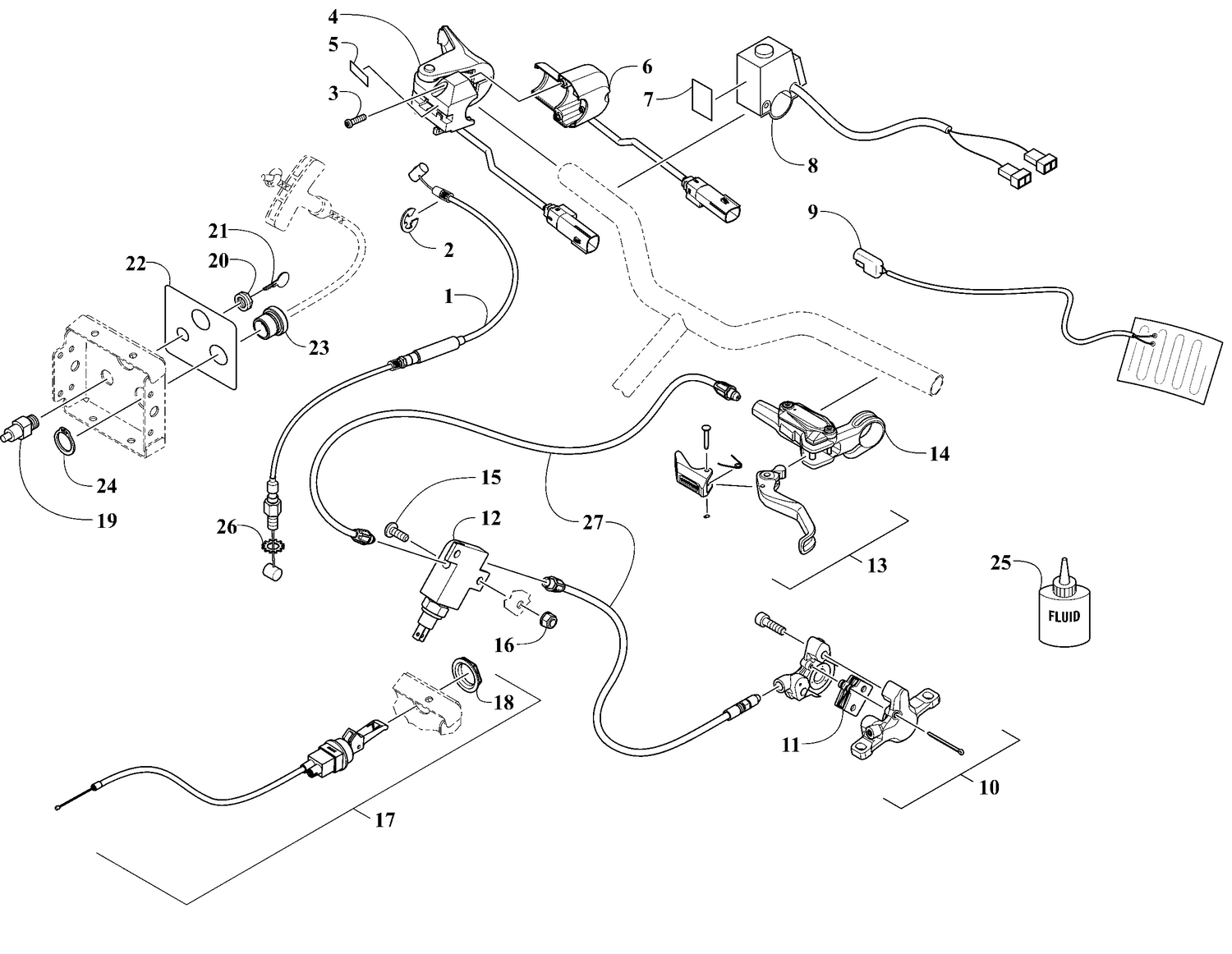

Controls
Parts (25)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0687-253 | Throttle Cable |
| 2 | 0123-231 | Circlip |
| 3 | 2623-233 | Screw 5/8 #8 |
| 4 | 0609-055 | Throtthe Handle Ass'y |
| 5 | 7621-024 | Decal RH Control |
| 6 | 1609-002 | Throttle Housing |
| 7 | 0611-022 | Decal Engine Stop Switch |
| 8 | 0609-007 | Kill Switch |
| 10 | 3602-070 | Brake Caliper Ass'y |
| 11 | 3602-071 | Brake Pad Kit |
| 12 | 3602-073 | Brake Light Switch |
| 13 | 3602-075 | Lever With Parking Lock |
| 14 | 3602-076 | Master Cylinder Ass'y |
| 15 | 8476-616 | Screw M6 X 1.0 X 16 |
| 16 | 8427-602 | Hex Flange Elastic Nut M6X1.0 |
| 17 | 0687-254 | Choke Cable (200) |
| 18 | 0687-181 | Choke Cable Nut |
| 19 | 0609-029 | Ignition Switch |
| 20 | 0609-111 | Safety Nut |
| 21 | 0116-065 | Ignition Key |
| 22 | 5621-091 | Decal Ignition Choke |
| 23 | 0608-791 | Strater Rope Grommet |
| 24 | 1423-111 | Snap Ring 7/8 EXT. X .086 |
| 25 | 3602-074 | Brake Fluid Dot 4 |
| 26 | 8053-242 | Lock Washer 5/16 EXT. Tooth |
