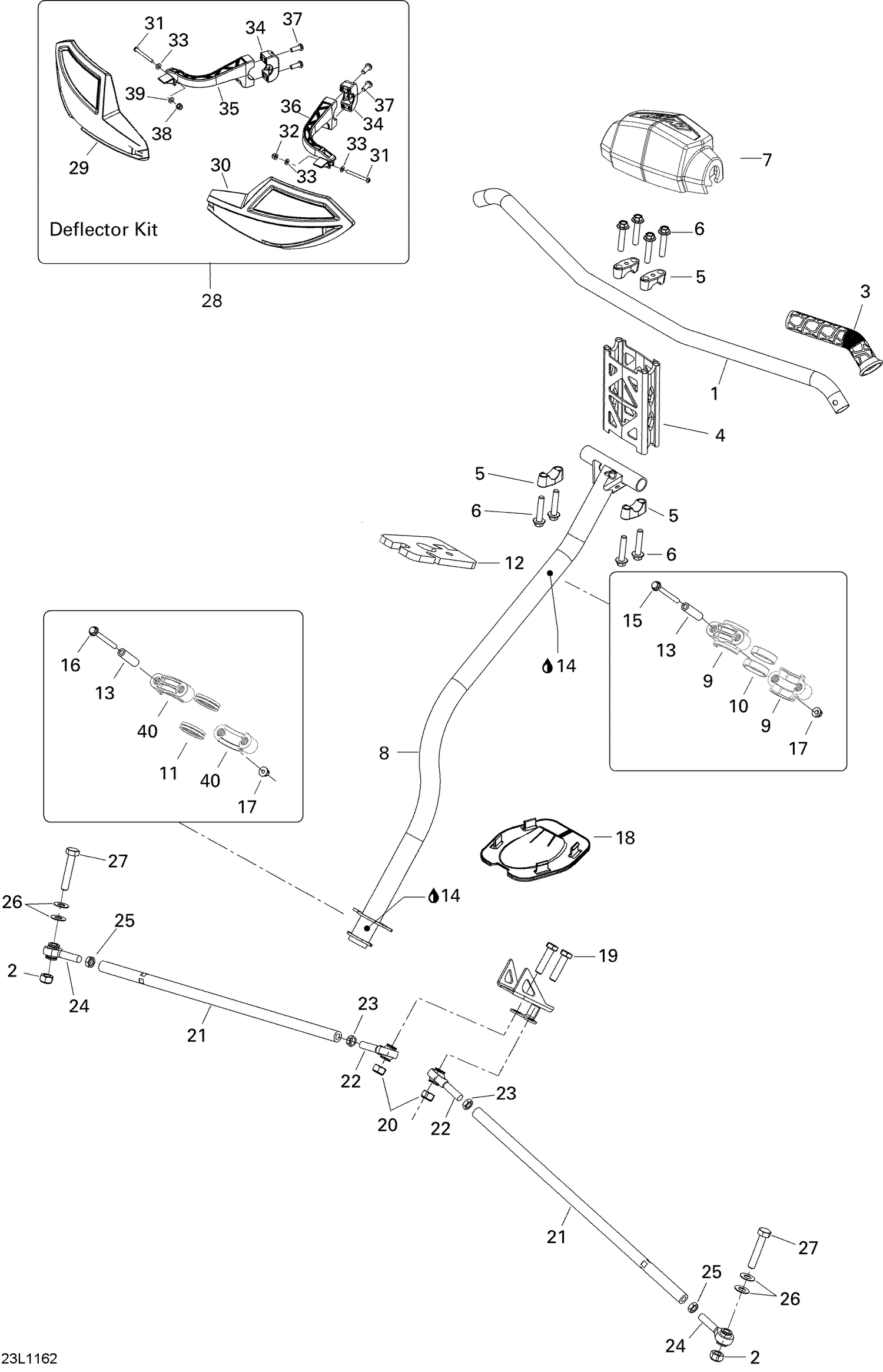

07- Steering System

07- Steering System

Parts (39)

RefPart NumberDescription
1 506152710 BLACK HANDLE BAR - Call your local BRP dealership This part replaces 506152362.
2 232500416 Elastic Stop Nut M10
3 506152483 Grip
4 860200819 HANDLEBAR EXTENSION KIT (115MM) - Call your local BRP dealership This part replaces 860200268.
5 506152751 Steering Support This part replaces 506152395.
6 250000285 Hex. Flanged Screw M8 x 40
7 506152265 Steering Pad
8 506152963 Tube-Main Paint This part replaces 506152473.
9 506152508 Upper Half-Housing
10 506152509 Upper Anti-Vibration Gasket
11 506152518 Lower Vibration Ring
12 506152521 Cushion
13 506152297 Housing Bushing
14 293550033 SUSPENSION GREASE, 10 X 400 G - Call your local BRP dealership
15 207667056 Hex. Flange Screw M6 x 70 This part replaces 207667086.
16 207667044 Hex Flange Screw M6 x 65
17 233261416 Elastic Flanged Nut M6 X 1.0
18 506152163 Plate
19 207004044 Hex. Screw M10 X 40
20 232500416 Elastic Stop Nut M10
21 506152496 Tie-Rod
22 506152081 LH Ball Joint
23 250100016 LH Threaded Hex. Jam Nut M10
24 506152019 RH Ball Joint
25 732610010 RH Threaded Hex. Jam Nut M10
26 506152194 Washer
27 207005544 Hex. Screw M10 X 55
28 517303968 DEFLECTOR PACK - Call your local BRP dealership
29 517303968 DEFLECTOR PACK - Call your local BRP dealership
30 517303968 DEFLECTOR PACK - Call your local BRP dealership
31 205444086 Socket Head Screw M4 X 40
32 232541484 Elastic Stop Nut M4
33 234041480 Flat Washer 4 mm
34 517303264 U-Clamp
35 517303590 RH DEFLECTOR SUPPORT - Call your local BRP dealership
36 517303591 LH DEFLECTOR SUPPORT - Call your local BRP dealership
37 250000172 SOCKET HEAD SCREW M6 X 16 - Call your local BRP dealership
38 232541484 Elastic Stop Nut M4
39 234041480 Flat Washer 4 mm
