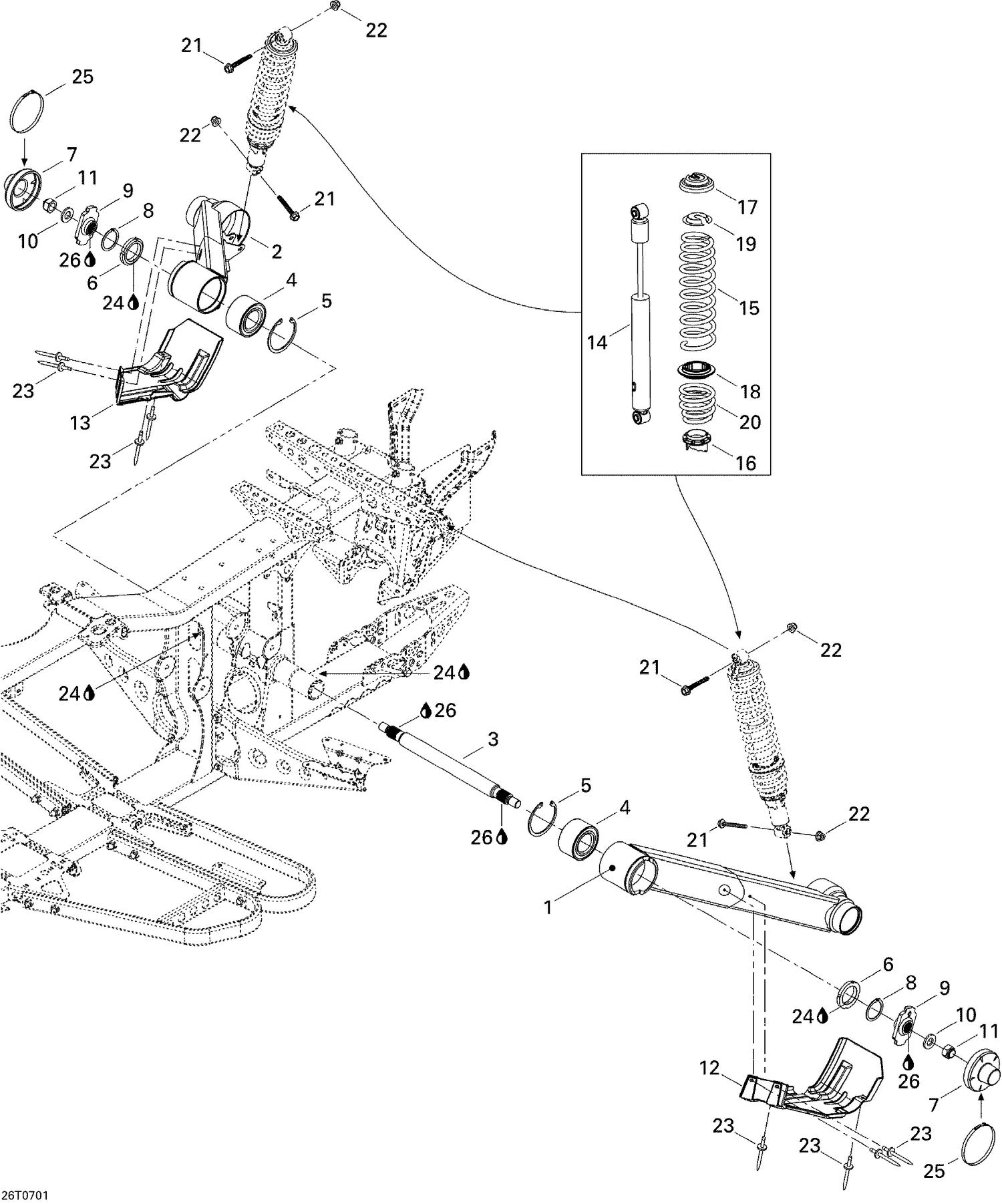

08- Rear Suspension
Parts (25)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 706001185 | LH SWING ARM - Call your local BRP dealership This part replaces 706000496. |
| 2 | 706003425 | Rh Swing Arm This part replaces 706000498. |
| 3 | 706001078 | Sway Bar This part replaces 706000452. |
| 4 | 293350037 | Ball Bearing |
| 5 | 293370041 | Circlip |
| 6 | 706000221 | Nut |
| 7 | 706000749 | Cover This part replaces 706000222. |
| 8 | 293370027 | Circlip 45 mm |
| 9 | 706000548 | Lever This part replaces 706000224. |
| 10 | 250200045 | Washer |
| 11 | 232591414 | Elastic Stop Nut M18 |
| 12 | 706000333 | LH PROTECTOR - Call your local BRP dealership |
| 13 | 706000334 | RH PROTECTOR - Call your local BRP dealership |
| 14 | 706000337 | REAR SHOCK - Call your local BRP dealership |
| 15 | 706000443 | SPRING - Call your local BRP dealership |
| 16 | 706002356 | Adjuster Ring This part replaces 706000294. |
| 17 | 706200881 | Spring Stopper This part replaces 503140600. |
| 18 | 706000472 | SPRING SPACER - Call your local BRP dealership |
| 19 | 706200785 | Cap This part replaces 503141600. |
| 20 | 706000476 | Spring |
| 21 | 207605544 | Hex. Flange Screw M10 X 55 |
| 22 | 233201414 | Hex. Flange Elastic Nut M10 |
| 23 | 293150104 | Pop Rivet 3/16" |
| 24 | 293800060 | Loctite 243, 10 ml |
| 25 | 293650162 | Oetiker Clamp |
