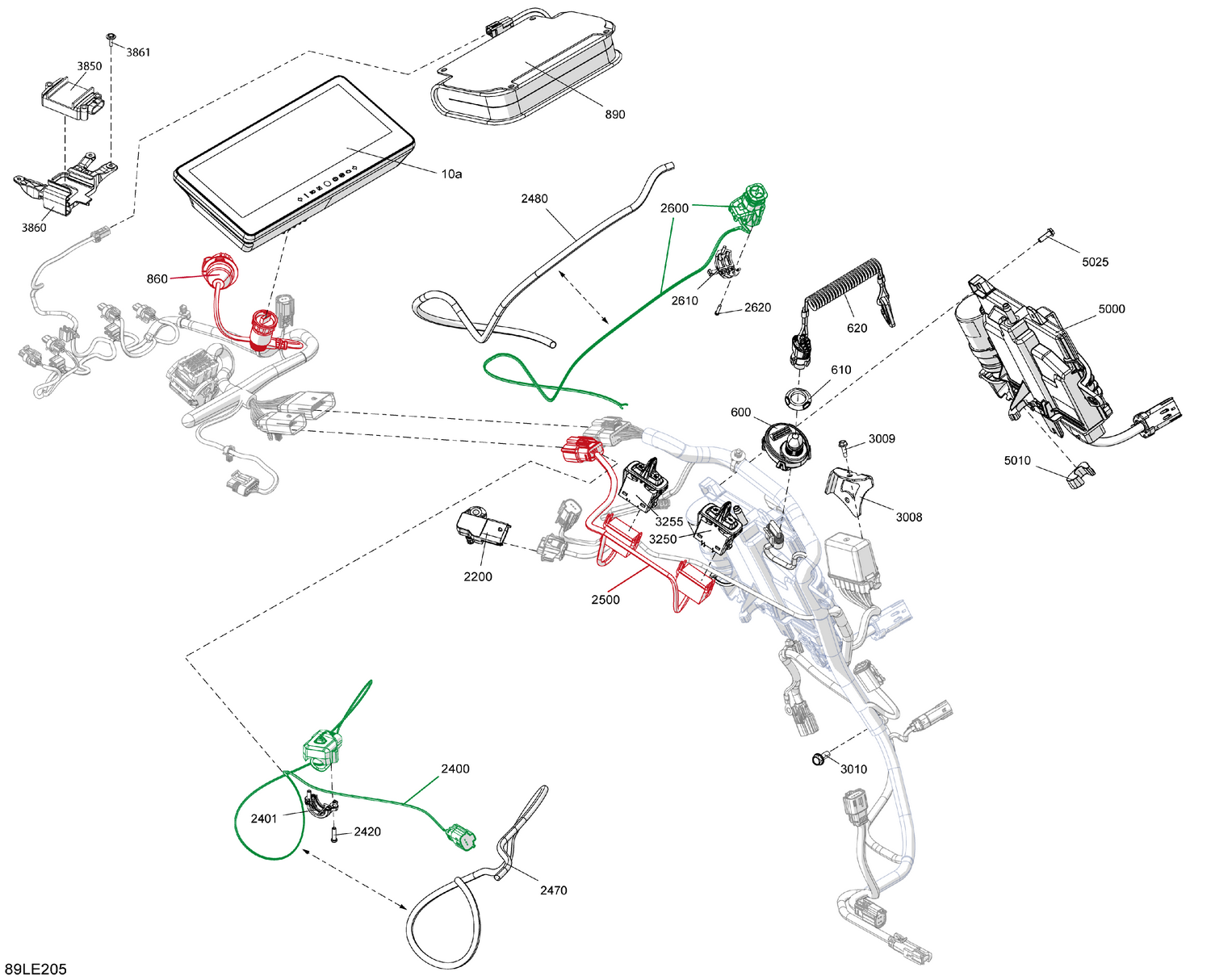

08- Electric - Upper Section
Parts (26)
| Ref | Part Number | Description |
|---|---|---|
| 10a | 710009417 | Multifunction Gauge 10 |
| 600 | 710008832 | Dess Can Terminal |
| 610 | 278004274 | Specialized Nut |
| 620 | 515178288 | Key |
| 860 | 515179248 | USB Wiring Harness Ass'y |
| 890 | 860202888 | NEEDS DESCRIPTION This part replaces 515179062. |
| 2200 | 707000995 | Pressure And Temperature Sensor |
| 2400 | 515179056 | Ignition Switch |
| 2401 | 515177952 | Clamp |
| 2420 | 250000671 | Torx Screw |
| 2470 | 415130141 | Sleeve |
| 2480 | 415130141 | Sleeve |
| 2500 | 515179085 | Console Wiring Harness |
| 2600 | 515179472 | Emergency Stop Switch |
| 2610 | 515179182 | Clamp |
| 2620 | 250001201 | Screw PT. Socket T10 K30 X 16 |
| 3008 | 515179281 | Fuse Box Support |
| 3009 | 250000911 | Hex. Flange Screw M5 X 16 |
| 3010 | 250001062 | Hex. Flanged Screw M6 X 16 |
| 3250 | 515178462 | Switch Rocker Hand Warmer |
| 3255 | 515178463 | Switch Rocker Headlignt |
| 3850 | 278004506 | GPS |
| 3860 | 515179316 | Module Support |
| 3861 | 250000725 | Screw M4 X 16 |
| 5000 | 515179354 | ECM Module |
| 5010 | 515178430 | Rubber Stopper |
