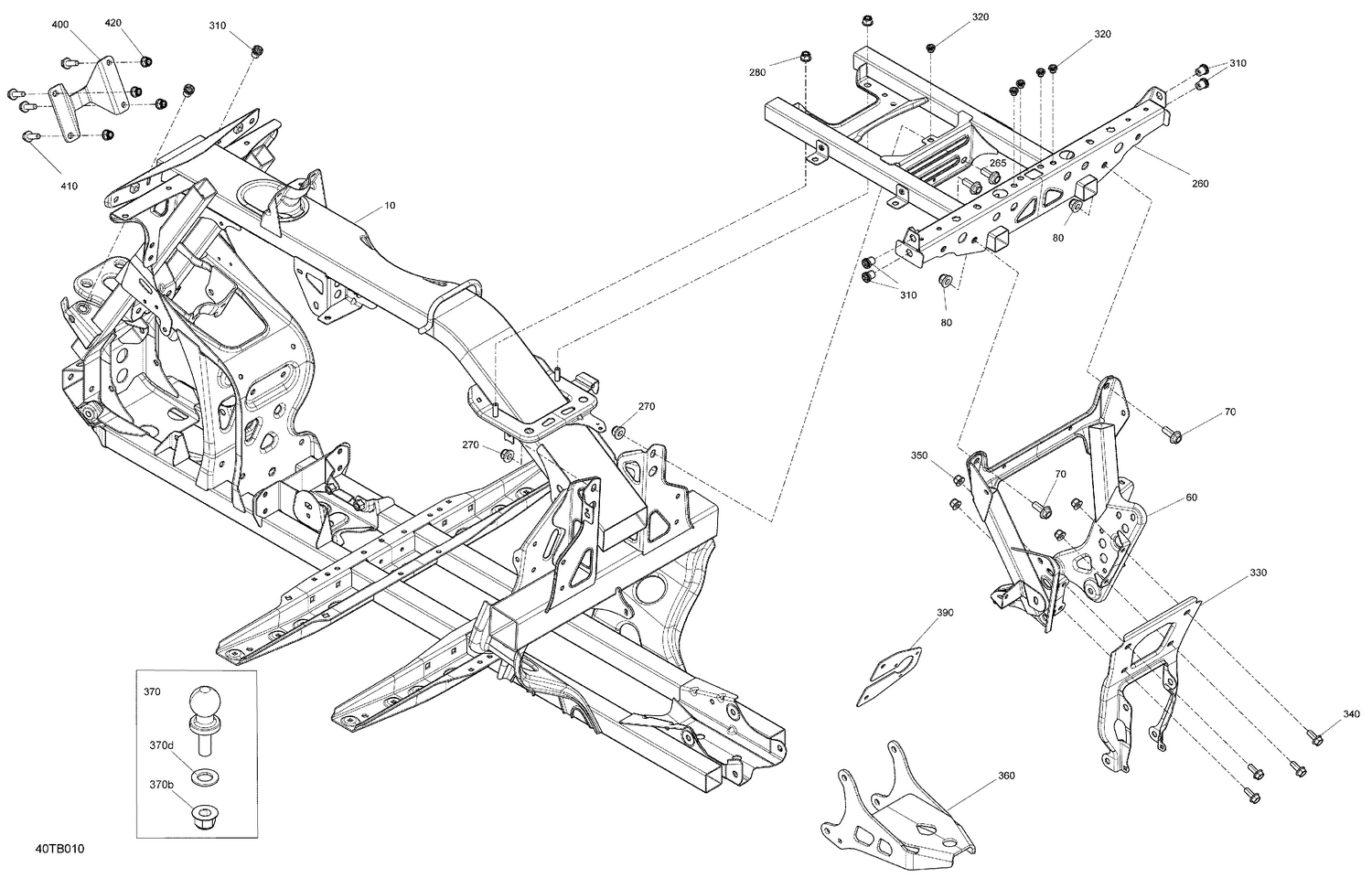

06- Frame - System
Parts (19)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 705210815 | Chassis This part replaces 705209381. |
| 60 | 705210818 | Rear Pillar This part replaces 705203387. |
| 70 | 207602546 | Hex. Flange Screw M10 X 25 |
| 80 | 233201436 | Hex. Flange Elastic Nut M10 |
| 260 | 705210821 | Chassis Extension This part replaces 705204075. |
| 265 | 207602546 | Hex. Flange Screw M10 X 25 |
| 270 | 233201436 | Hex. Flange Elastic Nut M10 |
| 280 | 233281414 | Hex. Flange Elastic Nut M8 |
| 310 | 293450307 | Insert Half Hex Body M8 x 1.25 |
| 320 | 250100199 | Insert Half Hex Body M6 x 1.0 |
| 330 | 705203301 | Rear Support |
| 340 | 207682046 | Hex. Flange Screw M8 X 20 |
| 350 | 233281416 | Hex. Elastic Flange Nut M8 |
| 360 | 705206592 | Black, Trailer Hitch |
| 370b | 250100104 | Elastic Flange Nut M20 |
| 370d | 250200163 | Flat Washer |
| 390 | 705206416 | Trailer connector Support |
| 400 | 705206480 | Front Hitch |
| 410 | 207682544 | Hex. Flange Screw M8 X 25 |
