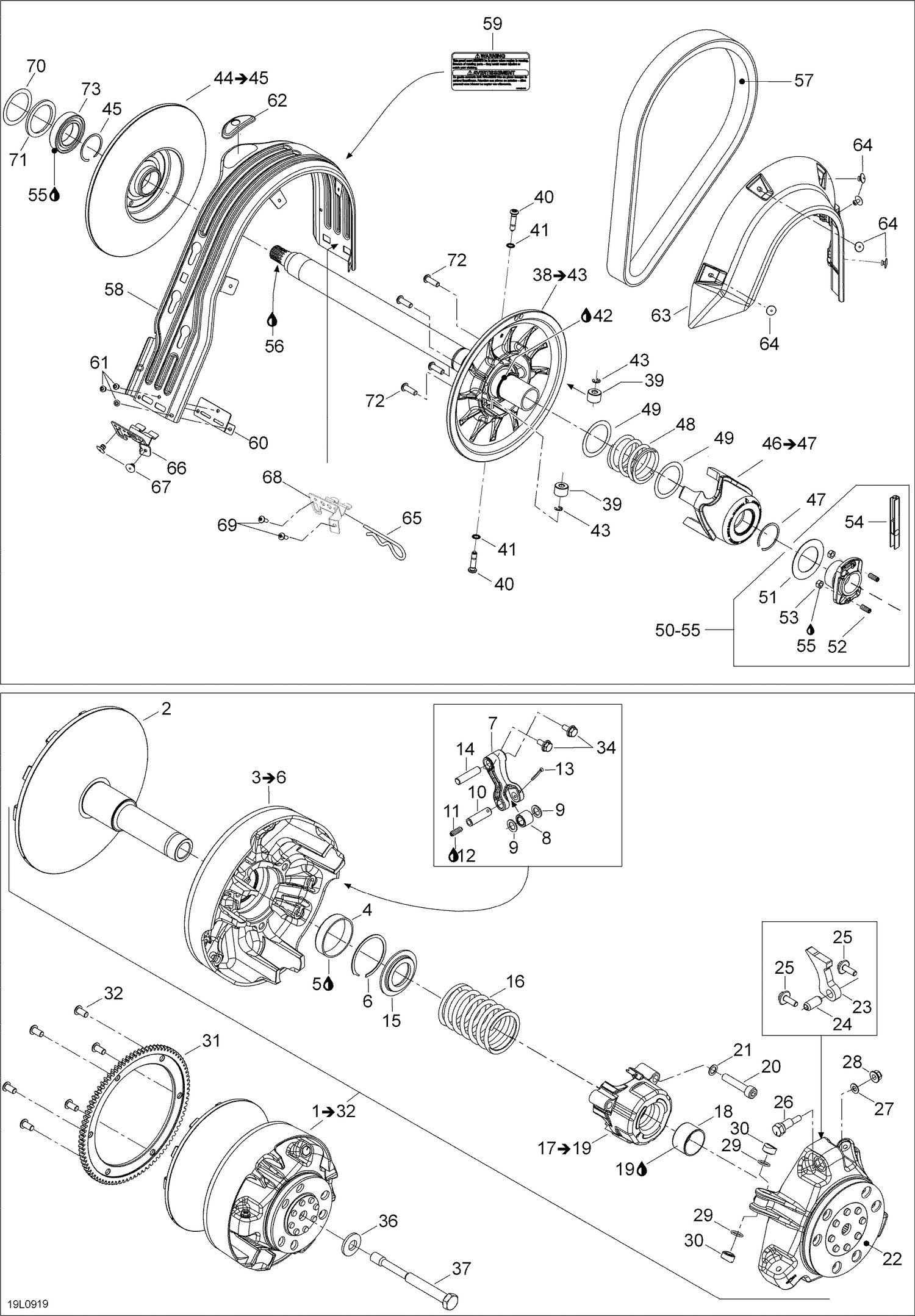

05- Pulley System
Parts (63)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 417222777 | FIXE FLANGE - Call your local BRP dealership |
| 4 | 417222758 | Bushing |
| 5 | 413703100 | Loctite 609, 10 ml |
| 6 | 293370037 | Circlip |
| 7 | 417222671 | Lever |
| 8 | 417222947 | Roller |
| 9 | 417004302 | Stopper Washer |
| 10 | 417222594 | Pin |
| 11 | 250000408 | Screw Socket Set DIN.913 S.Grip This part replaces 206262599. |
| 12 | 293800060 | Loctite 243, 10 ml |
| 13 | 250400060 | Cotter Pin This part replaces 732958001. |
| 14 | 417223164 | Lever Axle This part replaces 417009202. |
| 15 | 417222312 | Spring Seat |
| 16 | 414993000 | Tra Spring |
| 18 | 417009204 | Bushing |
| 19 | 413703100 | Loctite 609, 10 ml |
| 20 | 205084044 | Socket Head Screw M8 X 1.25 X 40 |
| 21 | 250200009 | Lock Washer 8 mm |
| 22 | 417222213 | Governor Cup |
| 23 | 417222444 | Ramp 600 |
| 24 | 250400050 | Spring Pin M10 X 22 This part replaces 250400009. |
| 25 | 250000418 | Hex. Flange Screw M6 X 18, Scotch Grip This part replaces 250000059. |
| 26 | 417222955 | CALIBRATION SCREW - Call your local BRP dealership |
| 27 | 417005600 | Washer |
| 28 | 233061414 | Hex. Flange Nut M6 |
| 29 | 732401030 | O-Ring |
| 30 | 417223021 | Slider Shoe This part replaces 420460045. |
| 31 | 417225070 | Ring Gear_Starter This part replaces 417223042. |
| 32 | 250000751 | Torx Screw M8 X 16 This part replaces 250000243. |
| 34 | 250000412 | Hex. Flange Screw M6 X 12, Scotch Grip This part replaces 250000362. |
| 36 | 250200006 | Spring Washer 14 mm |
| 37 | 417120000 | Drive Pulley Bolt |
| 39 | 417127016 | Pulley Roller |
| 40 | 417127259 | Pivot Stud This part replaces 417127078. |
| 41 | 250200009 | Lock Washer 8 mm |
| 42 | 413703100 | Loctite 609, 10 ml |
| 43 | 414753500 | Circlip |
| 45 | 293370049 | Circlip |
| 47 | 293370049 | Circlip |
| 48 | 417127118 | Blue Spring |
| 49 | 417126322 | SWIVEL ABUTMENT - Call your local BRP dealership |
| 51 | 417127155 | Washer |
| 52 | 206261650 | SOCKET SET SCREW M6 X 16 - Call your local BRP dealership This part replaces 206261690. |
| 53 | 232061414 | Hex. Nut M6 |
| 54 | 529035501 | Spacing Tool |
| 55 | 413703100 | Loctite 609, 10 ml |
| 56 | 219704461 | LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership |
| 57 | 417300586 | Drive Belt This part replaces 417300197. |
| 58 | 417300357 | Belt Guard |
| 59 | 516002670 | WARNING DECAL, SECURITY BELT GUARD - Call your local BRP dealership |
| 60 | 417300380 | Reinforcement |
| 61 | 390909200 | Avex Rivet |
| 62 | 417300381 | Guide |
| 63 | 417300356 | Side Protector |
| 64 | 293150103 | Pop Rivet 3/16" |
| 65 | 114045200 | Hair Pin |
| 66 | 417300364 | Belt Guard Bracket |
| 67 | 293150104 | Pop Rivet 3/16" |
| 68 | 417300363 | Belt Guard Bracket |
| 69 | 293150163 | Rivet Hucklok |
| 70 | 504152958 | FLAT WASHER - Call your local BRP dealership |
| 71 | 504152959 | SEAL RING - Call your local BRP dealership |
| 72 | 250000283 | Torx Screw M8 X 25, Scotch Grip |
