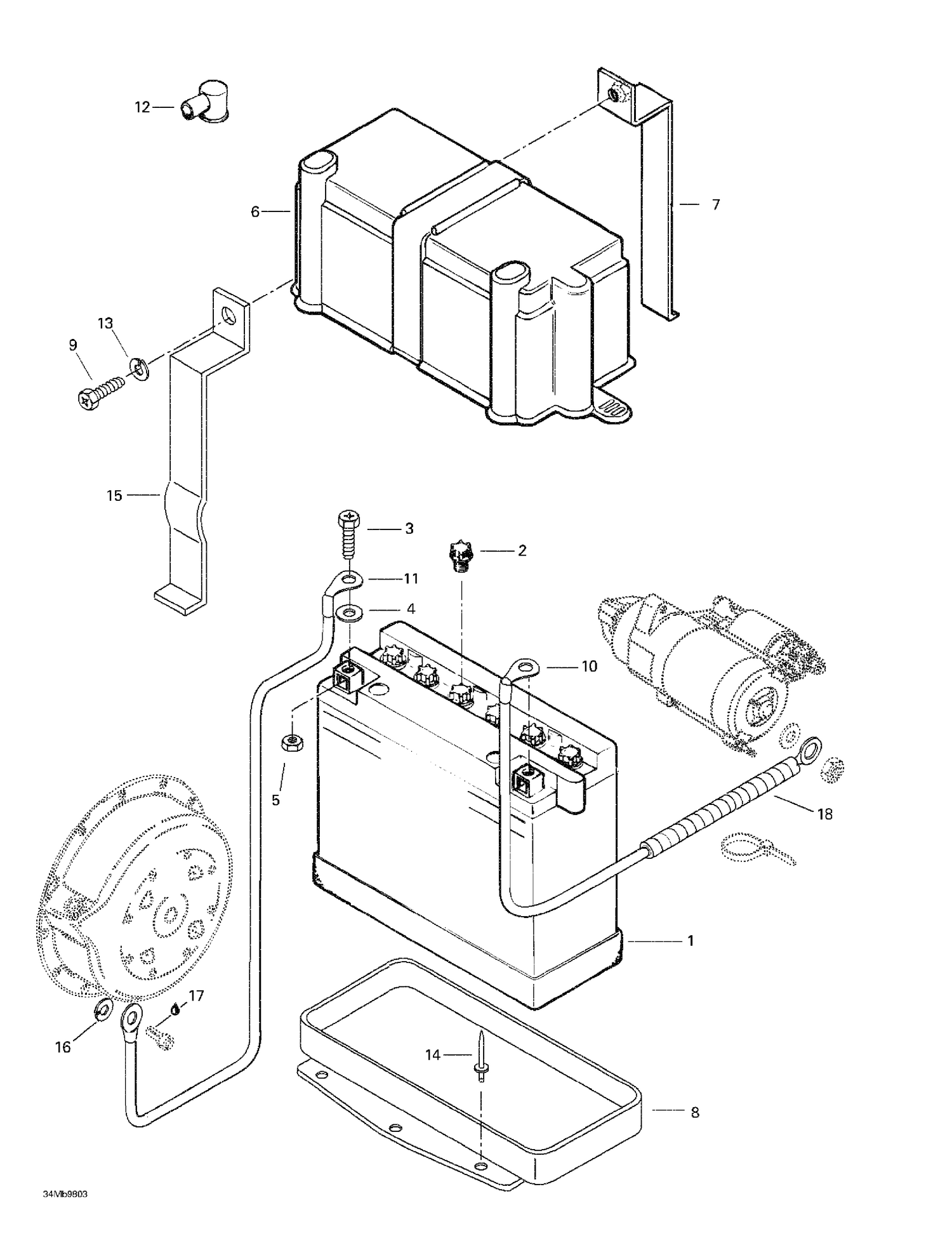

10- Electrical System
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 410300800 | Battery Cap |
| 3 | 207161644 | Hex. Screw M6 X 16 This part replaces 222061665. |
| 4 | 391302100 | FLAT WASHER - Call your local BRP dealership |
| 5 | 232061414 | Hex. Nut M6 This part replaces 228061045. |
| 6 | 570022000 | Battery Cover |
| 7 | 517286000 | Steel Strip |
| 8 | 517286200 | Battery Seat |
| 9 | 207152044 | Hex. Screw M5 X 20 This part replaces 222052065. |
| 10 | 515166700 | Current Wire |
| 11 | 515157000 | Ground Wire |
| 12 | 570151000 | Protection Cap |
| 13 | 234151401 | Lock Washer 5 mm This part replaces 224751090. |
| 14 | 390402200 | Pop Rivet 3/16" |
| 15 | 517286100 | Steel Strip |
| 16 | 394001900 | EXTERNAL TOOTH LOCK WASHER - Call your local BRP dealership |
| 17 | 293800005 | Loctite 271, 10 ml This part replaces 413707400. |
