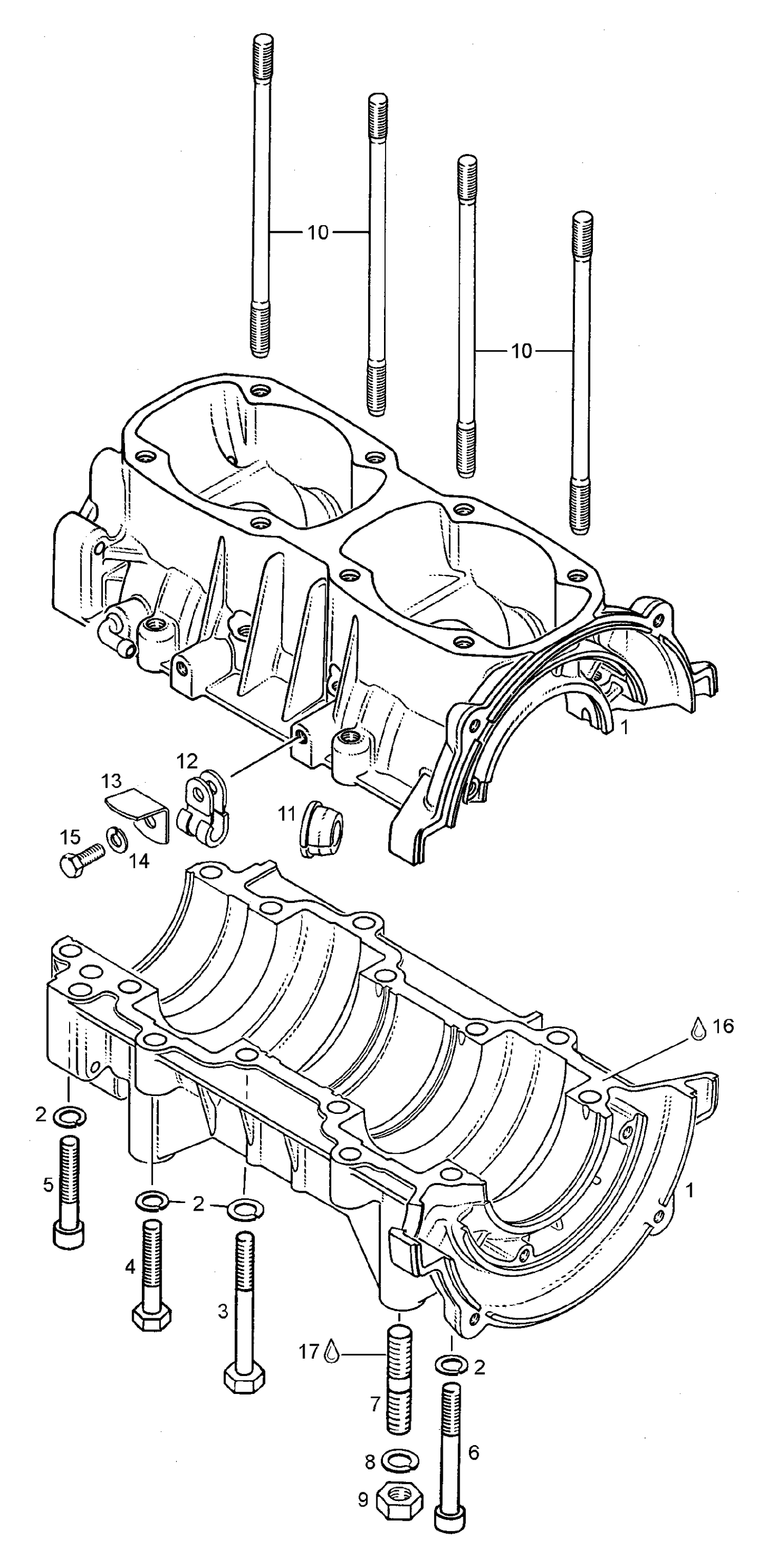

| Ref | Part Number | Description |
|---|
| 1 |
420888493 |
Crankcase assy (ref. 11 included) This part replaces 420887794. |
| 2 |
420945832 |
Washer-Lock Din.128 This part replaces 420945752. |
| 3 |
420841201 |
Screw M8x70 |
| 4 |
207084544 |
Hex. Screw M8 X 45 This part replaces 420940631. |
| 5 |
420841561 |
Allen screw M8x45 |
| 6 |
420841841 |
SOCKET HEAD SCREW M8 X 65 - Call your local BRP dealership |
| 7 |
420640030 |
Stud M10 |
| 8 |
420945753 |
Lock washer |
| 9 |
232006414 |
Hex. Nut M10 This part replaces 33004. |
| 10 |
420840556 |
Stud M8x173.5 |
| 11 |
420860962 |
Cable grommet |
| 12 |
414176000 |
Open Clamp This part replaces 420853412. |
| 13 |
420953310 |
Wire support |
| 14 |
420945751 |
WASHER-LOCK DIN.128 - Call your local BRP dealership |
| 15 |
207161644 |
Screw M6x16 This part replaces 420241186. |
| 16 |
420899784 |
Loct 574/orange/50 |
