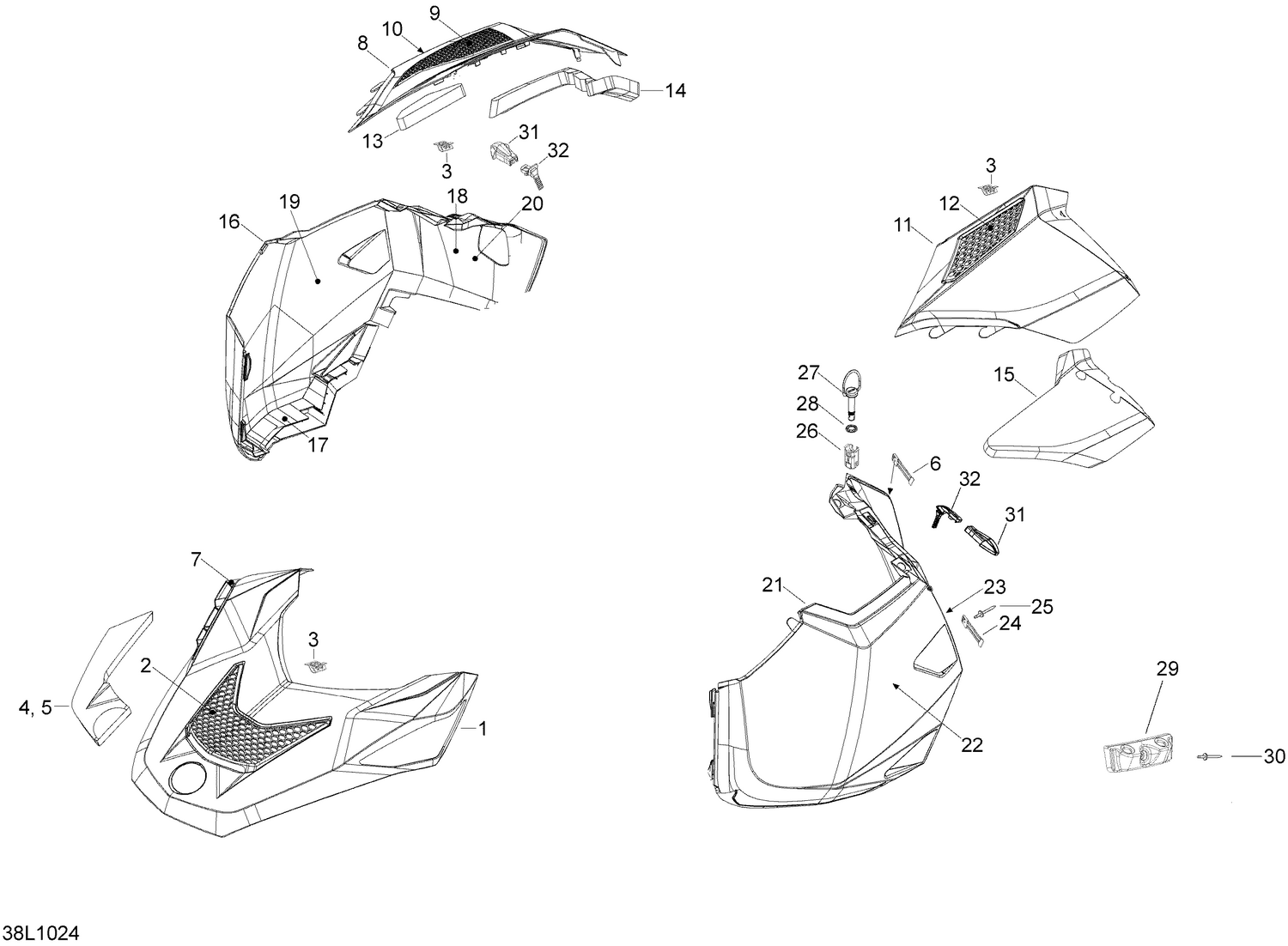

09- Hood
Parts (31)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 517304812 | Hood This part replaces 517303889. |
| 2 | 517304843 | Hood grill front This part replaces 517303892. |
| 3 | 517302785 | Clip |
| 4 | 517304330 | Isolation L.H. |
| 5 | 517304214 | Isolation R.H. |
| 6 | 517304289 | Latch |
| 7 | 517306980 | Scoop Grill This part replaces 517304155. |
| 8 | 517304682 | R.H. Upper Side panel |
| 9 | 517304015 | R.H. Acces panel grill |
| 10 | 517304016 | R.H. Lower sidepanel grill |
| 11 | 517304691 | L.H. Upper Side panel |
| 12 | 517303893 | L.H. Acces panel grill |
| 13 | 517304311 | Isolation |
| 14 | 517304312 | Isolation |
| 15 | 517304313 | Isolation |
| 16 | 517304509 | R.H. Side panel |
| 17 | 517304215 | Heat protector |
| 18 | 517304216 | Heat protector |
| 19 | 517304512 | R.H. Isolation |
| 20 | 517304310 | R.H. Isolation rear |
| 21 | 517304511 | L.H. Sidepanel |
| 22 | 517303891 | L.H. Isolation |
| 23 | 517304309 | L.H. Isolation rear |
| 24 | 517304572 | Latch |
| 25 | 293150108 | Pop Rivet 3/16” This part replaces 293150108. |
| 26 | 517304297 | Quarter-turn fastener |
| 27 | 517304296 | Quarter-turn handle |
| 28 | 517304538 | Locking plate |
| 29 | 517304497 | Side panel support |
| 30 | 36005 | Rivet |
| 31 | 860200239 | End piece |
