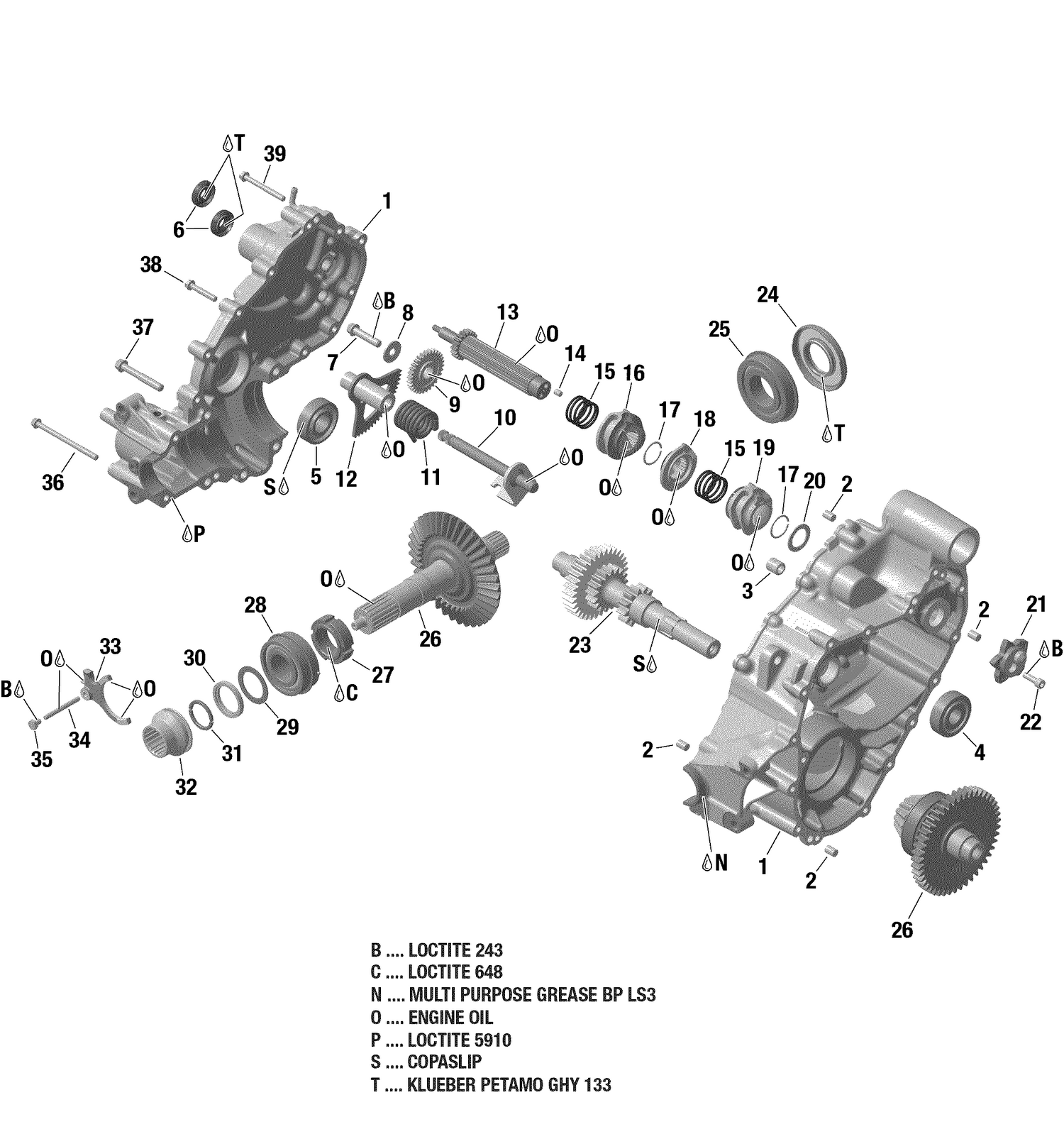

| Ref | Part Number | Description |
|---|
| 2 |
420632010 |
Center Pin 8 X 12 |
| 3 |
Not |
Available As Spare Part - Dowel |
| 4 |
420932816 |
Ball Bearing |
| 5 |
420932433 |
Ball Bearing 6204 This part replaces 420932432. |
| 6 |
420250452 |
Oil Seal |
| 7 |
420440861 |
Torx Flange Screw M8 X 35 |
| 8 |
420227937 |
Plain Washer |
| 9 |
Not |
Available As Spare Part - Intermediate Gear 30T |
| 10 |
Not |
Available As Spare Part - Shift Shaft |
| 11 |
Not |
Available As Spare Part - Spring |
| 12 |
Not |
Available As Spare Part - Tooth Segment Ass'y |
| 14 |
Not |
Available As Spare Part - Needle Pin |
| 15 |
Not |
Available As Spare Part - Compression Spring |
| 16 |
Not |
Available As Spare Part - Gear shifting Gate |
| 17 |
Not |
Available As Spare Part - Snap Ring |
| 18 |
Not |
Available As Spare Part - Disengage Gate |
| 19 |
Not |
Available As Spare Part - Gear Shifting Gate |
| 20 |
Not |
Available As Spare Part - Thrust Washer |
| 21 |
Not |
Available As Spare Part - Indexwasher |
| 22 |
420241939 |
Allen Screw M6 X 20 |
| 23 |
420637707 |
Countershaft |
| 24 |
420831955 |
Oil Seal |
| 32 |
420257674 |
Shifting Sleeve This part replaces 420257673. |
| 33 |
420257606 |
Shifting Fork |
| 34 |
420832650 |
Needle Pin |
| 35 |
420841580 |
Hex. Screw M6 X 8 |
| 36 |
420641228 |
Torx Flange Screw M6 X 85 |
| 37 |
420641213 |
Torx Flange Screw M8 X 55 |
| 38 |
420440274 |
Torx Flange Screw M6 X 35 |
